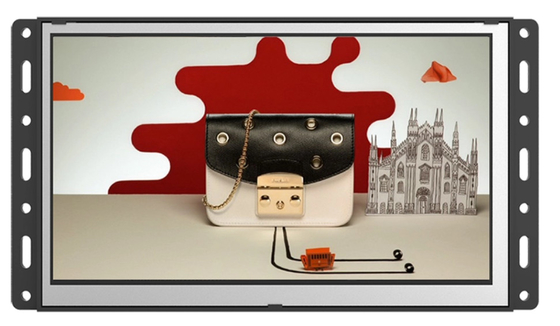

Large Image :  SUNCHIP New tooling 8 Inch touch display open frame lcd advertising display digital signage with WIFI LAN BT USB TF

Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: ADW
Certification: ISO9001, CE, ROHS, FCC
Model Number: AD-8ʺ-0830P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton / Wooden case
Delivery Time: About 25-30 days for mass-production
Payment Terms: T/T
Supply Ability: 10000 PCS per Month

SUNCHIP New tooling 8 Inch touch display open frame lcd advertising display digital signage with WIFI LAN BT USB TF

Description
CPU&GPU: RK3188 Quad-core Product Type: Android Retail Tablets
Product Description: 8" With Touch Screen LCD Screen: 10 Point Capacitive Touch(optional)
Operating System: Android 4.4 RAM: 1GB
ROM: 8GB Resolution: 800*1280 / 1280*800
WiFi: 802.11 B/g/n_2.4G LAN: 10M/100M Ethernet;
Bluetooth: 4.0 Contrast Ratio: 800:1
Luminance: 280cd/m2 Aspect Ratio: 16:10
OTA Upgrade: Support
High Light:

open frame lcd screen

,

open frame lcd panel





SUNCHIP New tooling 8 Inch touch display open frame lcd advertising display digital signage with WIFI LAN BT USB TF



Open Frame LCD Display & Open Frame Digital Signage from SUNCHIP





Overview:



RK3188 Android all in one board, using Rock chip RK3188 quad-core chip program, support Google Android 4.4 system. Support the mainstream audio and video formats and picture decoding. Dual 8-bit LVDS interface 1920 * 1080, can drive 7 "to 82" display. 1080P, support 1080P video playback. Rich interface, so that products become more common, widely used in advertising machines, one machine, security, industrial control, and so the field of intelligent control. Because of its hardware platform, Android intelligent features, in the need for interaction, network equipment, interactive, intelligent terminal platform can be used.





PRODUCT SPECIFICATIONS




System CPU RK3188 quad-core Cortex-A9 @1.6G GPU Mali -400
RAM 1GB
Internal memory 8GB
Operation system Android4.4
    Touch screen 10 point capacitive touch(optional)
Display Panel 8"
Resolution 800*1280
Contrast ratio 800:1
Luminance 280cd/㎡
Aspect Ratio 16:10
Network WiFi 802.11b/g/n
Buletooth Bluetooth 4.0
Ethernet 10M/100M Ethernet
Interface USB x 1 USB host *3
Micro USB USB OTG*1
Power jack DC power 12V input
Card slot SD card Maximum support for 32G
RJ45 Ethernet port
speaker 2W * 8Ω * 2
Earphone 3.5mm stereo headphone output
Key Key Power button,V+,V-
Media play Video format H.264,VP8,RV,WMV,AVS,H.263,MPEG4 etc.,support up to 1080P
Audio format MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc.
Text processing EPUB, WORD, EXCEL, POWERPOINT, PDF,
E-book PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Photo JPG,BMP,PNG

system management
APK installation APK installation
Root permissions Original ecological Android system, open root permissions, customizable development
Remote control Real-time remote monitoring, system crash self recovery, 7*24 hours unattended
OTA upgrade Support OTA remote upgrades
  Camera Pre 200W/500W (default none , optional)
Language Multi-language
Accessories Adapter

Adapter,12V/2A







PACKAGING DETAILS



EDP foam *1

Carton *1

Wooden case *1 (if necessary)

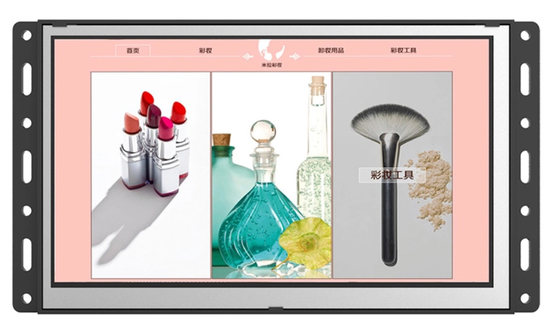

PRODUCT SCENARIOS



SUNCHIP New tooling 8 Inch touch display open frame lcd advertising display digital signage with WIFI LAN BT USB TF 0



SUNCHIP New tooling 8 Inch touch display open frame lcd advertising display digital signage with WIFI LAN BT USB TF 1

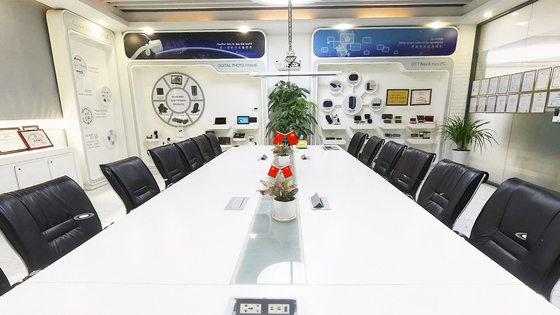

OFFICE AND FACTORY





SUNCHIP: Digital Signage manufacturer in Shenzhen, China.



Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising  Box.



LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!

WELCOME TO INQUIRE ME~



SUNCHIP mainly manufactures:

1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

5, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

7, Embedded touch desk: such as 32inch.

8, Face recognition temperature detection terminal machine: such as 8inch.

[You can also tell us your detailed requirements, so that we advise you a matched solution]
