Product Details:
|
| CPU&GPU: | RK3288 Quad-core Cortex-A17@1.8G GPU Mali T764 | Operating System: | Android 6.0-9.0 |
|---|---|---|---|
| LCD Screen: | 15.6'' 21.5'' 23.8'' 27'' 32'' 43'' Etc. | Resolution: | 1920*1080 |
| WiFi: | 802.11 B/g/n_2.4G Optional 5G | Network: | 10M/100M/1000M Ethernet Optional |
| RAM: | 2GB/4GB Optional | ROM: | 16GB/32GB Optional |
| High Light: | outdoor digital signage kiosk,floor standing touch screen kiosk |
||

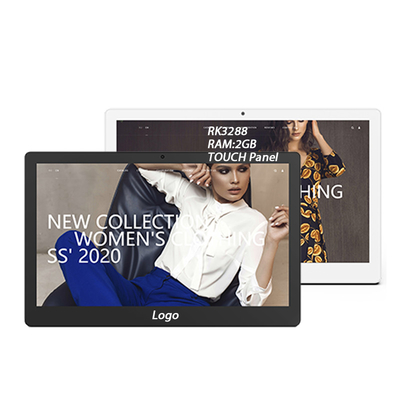

Full HD 15.6'' 21.5'' 23.8'' 27'' 32'' 43'' etc. touch Digital Signage
LCD Digital Signage Advertising Display
RK3288 15.6'' 21.5'' 23.8'' 27'' 32'' 43'' etc. Touch Screen Kiosk
LCD Digital Signage Advertising Display from SUNCHIP
HIGHLIGHTS
A. High performance: The RK3288 uses the Quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
B. High stability: RK3288 Android integrated board, adds their own unique technology in the hardware & software to ensure the stability of the product to make sure the device 7*24 hours unattended.

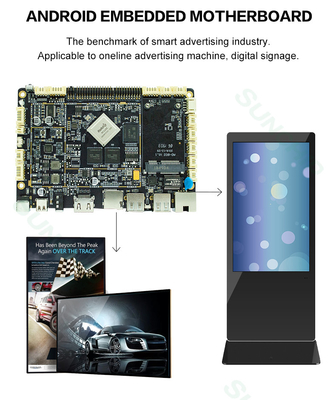

C. High integration: RK3288 Android integrated board integrates Ethernet, WIFI, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
PRODUCTS DETAILS
|
|
RK3288 Quad-core Android all-in-one advertising machine |
|||||
| Hardware Spec | ||||||
| System | CPU&GPU | RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional), default 2GB | |||||
| Memory | 16GB/32GB(optional), default 16GB | |||||
| Operating system | Android 5.1/ 6.0-9.0 10.0 | |||||
| Interactive mode | infrared touch | Optional( default Nun-touching) | ||||
| ten-points capacitive touch | ||||||
| No-touch/infrared remote control | ||||||
| Display | LCD Screen | 15.6'' 21.5'' 23.8'' 27'' 32'' 43'' etc. | ||||
| Resolution | 1920*1080 | |||||
| Network | WiFi | 802.11 b/g/n_2.4G ( support 5G optional) | ||||
| Mobile network | Support 4G(optional) | |||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100M/1000M Ethernet | |||||
| Interface | ||||||
| Interface | USB interface*2 | Support USB host*2 | ||||
| USB_OTG | USB_OTG*1 | |||||
| AC | AC 100V-240V (50HZ-60HZ) 380 W | |||||
| TF card | Maximum support 128GB | |||||
| Support output Support 4K 60FPS frame rate | ||||||
| RJ45 | 10/100/1000M Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Speaker output | Support 8 ohm 3W speaker dual channel output interface | |||||
| Buttons/Keys | Buttons/Keys | defaulted none | ||||
| Waterproof grade | IP65 | YES | ||||
| Media Parameter | ||||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,VC1,VP8,4K VP9,4K 10bits H265/H264,HDR10,HLG HDR,Maximum support 3840x2160 | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Power Adapter | Standard | ||||
| User's Guide | Standard | |||||
| Warranty Card | Standard | |||||
| Camera | 200W/500W(Optional), default none | |||||
| Recording | Support high-quality recording function (optional), default none | |||||
| OSD Language | Multi-language OSD Operation | |||||
| Operation Environment | -30℃~60℃ | |||||
PACKAGING DETAILS
OFFICE AND FACTORY
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
