Product Details:
|
| CPU: | RK3588 Octa-core CPU 8nm Process 4 X Cortex-A76 And 4 X Cortex-A55 | GPU: | ARM Mali G610 MP4 GPU |
|---|---|---|---|
| NPU: | 6Tops，int4/int8/int16/FP16 | MCU: | For Low Power Control |
| Operating System: | Android 12 | Dual-Ethernet: | Support 10/100/1000M Ethernet*2 |
| Mobile Network: | Supports Wireless 4G Network | M.2 Built-in SSD Interface: | M.2 Built-in SSD Expansion Interface*1 |
| Max Resolution: | 8K | Shell Material: | Aluminum Alloy + Metal Profile |

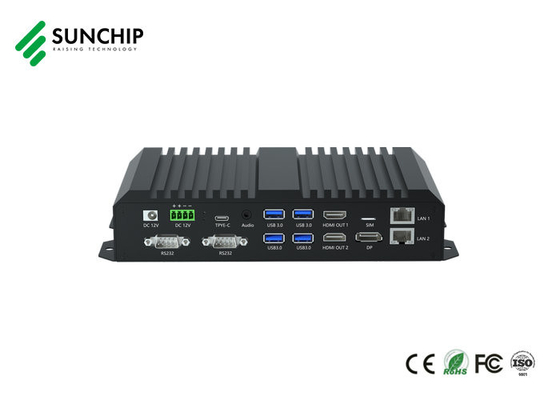

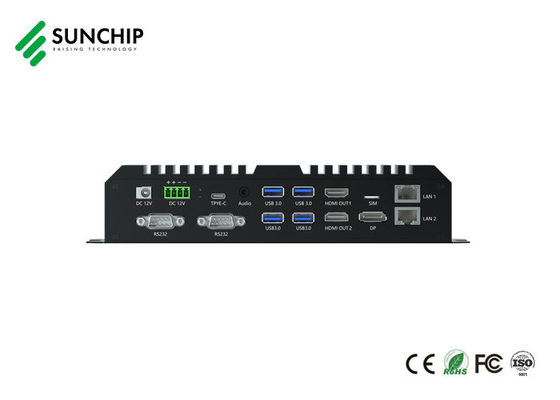

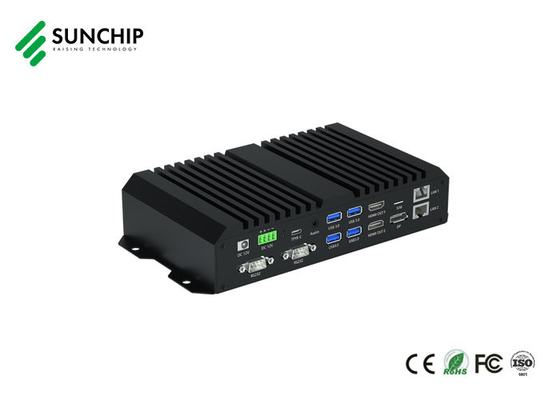

Rockchip RK3588 HD Multimedia Box Octa-Core 8K Double HD Dual Ethernet Edge Computing AI terminal usages
Main Features:
1, Octa-Core, 8K output, 4K hardware decoding;
2, Main frequency up to 2.4GhZ;
3, RK3588 performance is higher 3.3 times than RK3399
4, Double-layer board;
5, Android 12 OS;
6, RAM: 8GB/16GB optional
7, ROM: 32GB/64GB/128GB/256GB optional
8, Dimension 244*128*49.5mm
| System | CPU | RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU | ARM Mali G610 MP4 GPU | |
| NPU | INT4/INT8/INT16/FP16 mixed computing capability with up to 6TOPs of computing power (INT8) | |
| RAM | 8GB/16G (optional) | |
| Memory | 32GB/64GB/128GB/256GB (optional) | |
| Operating System | Android 12 | |
| Network | WiFi | IEEE 802.11 a/b/g/n/ac |
| Dual wired network | Support 1000M wired network network*2 | |
| Mobile Network | Support wireless 4G network | |
| Bluetooth | BT5.0 | |
| Motherboard Interface | TYPE_C | Standard Type_c*1 |
| DC holder*1 | Front 5.5/2.5mm | |
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 | |
| Headphones | 3.5MM support stereo with MIC headphone output port | |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT 1 | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) | |
| SIM card | SIM card port*1 | |
| Ethernet port | Support 10/100/1000M Ethernet*1 | |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81mm green terminals * 1 | |
| HDMI_IN | Support HDMI 2.0_4K input*1 | |
| Sub-board interface | RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT 2 | HDMI 4K 60HZ output*1 (this interface does not work when HDMI_OUT 1 is selected to output 8K) | |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 | |
| Ethernet port | Support 10/100/1000M Ethernet*1 | |
| M.2 internal SSD interface | M.2 built-in SSD expansion interface*1 | |
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 | |
| Environmental parameters | General working temperature/humidity | Temperature:-20-60℃ Humidity 5%-85%RH(non-condensing) |
| General storage temperature/humidity | Temperature:-20-70℃ Humidity 5%-85%RH(non-condensing) | |
| Housing | Color | Black |
| Material | Aluminum alloy + metal profile | |
| Size | Motherboard Size | 200*125mm |
| Sub-board size | 200*125mm | |
| Whole machine size | 244*128*49.5mm | |
| Other | Indicator light | Red and blue 2 colors |
| Button | Upgrade key*1 | |
| Power adapter |
DC:12V/3A |
RK3588 8K Industrial control box 4G dual Ethernet media player box
AD-0160 RK3588 support 8K HDMI out, 4K HDMI in, RS485, RS232, Dual-Ethernet, Multiple USB, Support decoding 12K etc.
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
WELCOME TO INQUIRE US FOR ANY PRODUCTS!
FAQ for HD Media Player Box
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
