Product Details:
|
| Display Interface: | EDP Interface /LVDS Interface Optional | HD: | HD Out & HD In |
|---|---|---|---|
| RAM: | DDR3 2G/4G Optional | ROM: | EMMC 8GB/16G/32G/64G Optional |
| Gravity Induction: | Support 0°90°180°270°manual/automatic Rotation | ||
| High Light: | 500w pixels android hd media player,bt4.0 android tv box media player |
||

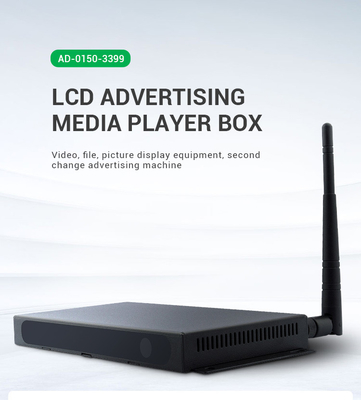

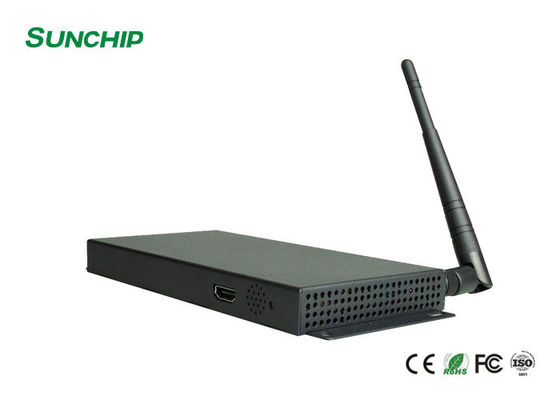

Digital Signage Android Media Player Box Advertising Display Metal Optional RAM ROM
Basic Hardware Specs & Basic Software Specs:
| Model No.: AD-B03 BOX | RK3399 Hexa-Core chipset with Google Android 7-10 | |||||
| Hardware Spec | ||||||
| System | CPU&GPU | Rockchip RK3399 daul core Cortex-A72+quad-core Cortex-A53 CPU&ARM Mali-T860MP4 GPU | ||||
| RAM | DDR3 2G/4G Optional | |||||
| Memory | EMMC 8GB/16G/32G/64G Optional | |||||
| Operating system | Google Android 7.1 | |||||
| Network | WiFi | With Wifi & BT module, support for Wi-Fi 802.11b / g / n / ac protocol. | ||||
| Bluetooth | Support BT4.0 | |||||
| Ethernet | With RJ45 interface, support for 10/100 Ethernet | |||||
| Language | Multi-Language | |||||
| Built-in real-time clock battery | YES | |||||

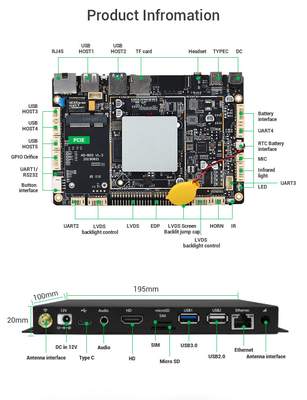

| Interface | ||||||
| Interface | USB interface | 4 USB HOST, 1 USB OTG (support POE power supply); Support USB Camera | ||||
| MIPI | Support MIPI interface camera, up to 500W pixels | |||||
| DC | Input:AC100-240V.50-60HZ, Output: DC12V 3A | |||||
| TF card | SD card, maximum support 64GB | |||||
| HD | HD 2.0 output | |||||
| Display interface | LVDS interface (single, 6 dual, 8 dual). Support the maximum resolution of 1920x1080, support 7 "-84" display; EDP screen interface, support for resolution 1920x1080; |
|||||
| Onboard backlight | Support 3.3V/5V/12V Optional | |||||
| Touch Screen | Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch). Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
|||||
| Speaker interface | Class D amplifier: 1.5W * 2 8 ohm, | |||||
| USB port extension | 3 groups of serial port. Supports external serial device devices (3G module, NFC module, printer, swipe card reader, etc.) | |||||
| RJ45 | 10/100M | |||||
| Headset/AUDIO Out | support for the microphone | |||||
| Media Parameter | ||||||
| Media Playback | Video format | Support for 2160P @ 24FPS decoding of video formats such as H.264, MPEG2, VP6, VP8, MVC, etc. Online videos from YouTube, up to 1080P, HTML5 video playback, Flash 10.1 playing. | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 | |||||
| Image Format | Support for JPG, BMP, PNG and other image formats Browse and support rotation / slide show / image zoom function | |||||
| System Management | ||||||
| System Management | APK install | APK Installer | ||||
| Root permission | Original Android system, open root privileges, product development can be customized | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7 * 24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Adapter | 12/3A | ||||
| User's Guide | Standard | |||||
| Warranty Card | Standard | |||||
