Product Details:
|
| CPU&GPU: | Rockchip RK3399 Daul Core Cortex-A72+quad-core Cortex-A53 CPU&ARM Mali-T860MP4 GPU | RAM: | DDR3 2G/4G Optional |
|---|---|---|---|
| ROM: | EMMC 8GB/16G/32G/64G Optional | Operating System: | Android 7.1/9.0 |
| WiFi: | Support For Wi-Fi 802.11b / G / N / Ac Protocol. | Bluetooth: | Support BT4.0 |
| Network: | 10M/100M/1000M Ethernet; | Display Interface: | EDP Interface /LVDS Interface Optional |
| HD: | HD Out & HD In | TP: | Support Touch Panel |
| OTA: | Support OTA Remote Upgrade | Gravity Induction: | Support 0°90°180°270°manual/automatic Rotation |
| High Light: | mini hd media box,digital signage player box |
||

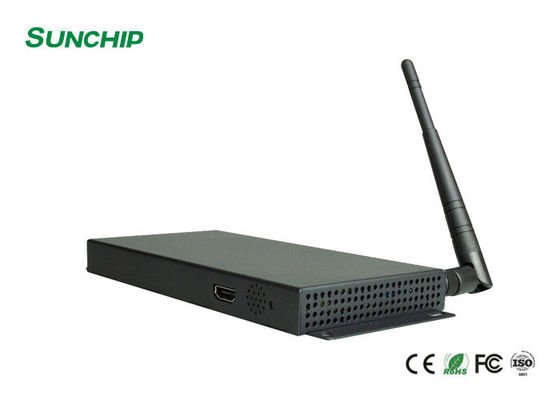

SUNCHIP Android full hd network advertising digital signage media player box RK3399 AD-K01 HD IN OUT
Model: AD-K01 BOX-RK3399 SUPPORT HD IN&OUT
Intelligent industrial one board, using Rockchip RK3399 six-core chip program to support Google Android 7.0 above system. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. For intelligent remote network control: industrial, medical, large advertising machine, educational video terminals and other equipment.
Product Features:
Ordinary TV, monitor or screen can easily turn into easy-to-use digital signage by connecting with SUNCHIP digital signage player. As the mainstream player powered by digital signage software, SUNCHIP BOX features reliable network update, offline mode, scalable I/O interfaces and 1080p FHD display, making itself adaptable for any digital signage project large or small, complex or simple.
With industrial-grade durability and outstanding performance among its peers, SUNCHIP BOX can be confidently applied to any digital signage application such as retail chain store, supermarket, shopping mall, restaurant, bus, train, hotel, bank, dealer showroom, drugstore and more.
PRODUCT SPECIFICATIONS:
Basic Hardware Specs:
| CPU | Rockchip RK3399 daul core Cortex-A72+quad-core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| RAM | DDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional(Label 8GB) |
| Display interface | LVDS interface (single, 6 dual, 8 dual). Support the maximum resolution of 1920x1080, support 7 "-84" display |
| EDP screen interface, support for resolution 1920x1080 | |
| Onboard backlight | Support 3.3V/5V/12V Optional |
| Touch screen |
Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch). |
| Internet | With RJ45 interface, support for 10/100 Ethernet |
| With Wifi & BT module, support for Wi-Fi 802.11b / g / n / ac protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support for gravity sensing |
| Real Time Clock | Built-in real-time clock battery |
| Interface equipment | Support MIPI interface camera, up to 500W pixels |
| Support USB camera | |
| 4 USB HOST, 1 USB OTG (support POE power supply) | |
| 3 groups of serial port. Supports external serial device devices (3G module, NFC module, printer, swipe card reader, etc.) | |
| 3 IO test port | |
| SD card, maximum support 64GB | |
| Class D amplifier: 1.5W * 2 8 ohm, support for the microphone | |
| 2.0 output | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support for 2160P @ 24FPS decoding of video formats such as H.264, MPEG2, VP6, VP8, MVC, etc. Online videos from YouTube, up to 1080P, HTML5 video playback, Flash 10.1 playing. |
| Picture | Support for JPG, BMP, PNG and other image formats Browse and support rotation / slide show / image zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
Basic Software Specs:
| Operating system | Google Android 7.1 |
| Basic software features | Web browsing, web chat, e-mail, e-books, resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multi-national voice |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input method | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| Gmail | |
| System Management | APK Installer |
| Original Android system, open root privileges, product development can be customized | |
| Real-time remote monitoring, system crash self-recovery, 7 * 24 hours unattended | |
| Support OTA remote upgrade | |
| System setting | |
| Google Maps | |
| Global time |
PRODUCT SCENARIOS
OFFICE AND FACTORY
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
