Product Details:
|
| CPU&GPU: | RK3288 Qquad-core | LCD Screen: | 7-100'' |
|---|---|---|---|
| Resolution: | 3840*2160 | Waterproof: | YES |
| WiFi: | 802.11 B/g/n_2.4G Optional | Network: | 10M/100M/1000M Ethernet Optional |
| 4G LTE: | Optional | ROM: | 16GB/32GB/64GB , Optional |

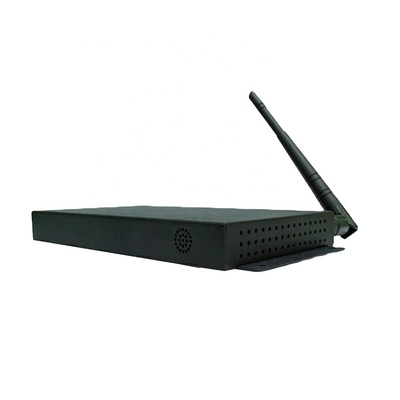

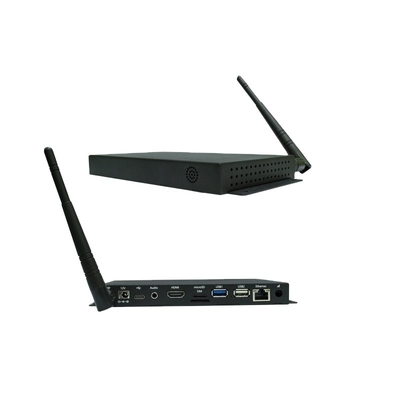

Customizied Media Player Digital Signage Box RK3288 4K Android HD 7-10 OS System USB WIFI BT Ethernet 4G
Android 9.0-10 OS Media player box for Touch Screen Kiosk with Wifi Network Support 4G / 5G
Support android phone or tablet terminal to play a list of programs, remote monitoring, timing switch function；
Screen brightness can be adjusted automatically according to the surrounding environment;
Supports a variety of general audio / Video, and office documents;
Support cable, Wifi, 4G network.
PRODUCTS DETAILS
| System | CPU&GPU | RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional, default 2GB) | |||||
| Memory | 16GB/32GB(optional, default 16GB) | |||||
| Operating system | Android 7.1 | |||||
| Network | WiFi | 802.11b/g/n(2.4G/5G optional, default 2.4G) | ||||
| Mobile network | Support full Netcom 4G (optional) | |||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100 M Ethernet | |||||
| Language | Multi-Language support | |||||

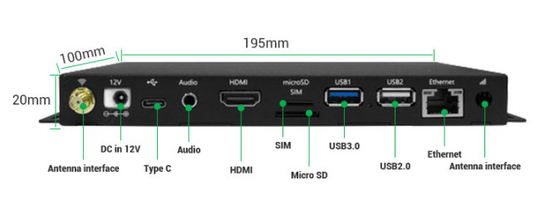

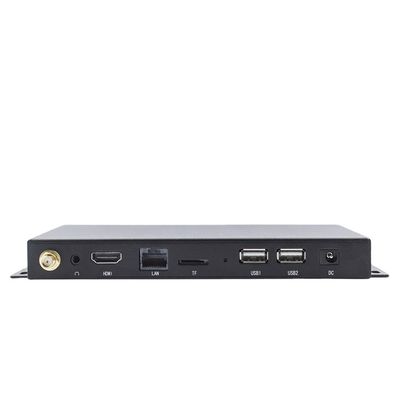

| Interface | ||||||
| Interface | USB interface | Support USB 2.0 host*2 | ||||
| Micro USB | USB_Debug interface*1 | |||||
| DC | DC power 12V input | |||||
| SD card | Maximum support 64GB | |||||
| HDMI | Support HDMI output Support 4K 60FPS frame rate | |||||
| Screen interface | EDP screen interface / LVDS screen interface(optional) | |||||
| Speaker output | 8Ω*5W * 2(optional) | |||||
| UART | UART2*1(optional) | |||||
| infrared remote control | Support infrared remote control | |||||
| USB port expantion | USB port expandert*1(optional) | |||||
| RJ45 | 10/100M Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
