Product Details:
|
| Operating System: | Android 6.0 ( Or 7.1)-10 | CPU&GPU: | RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764 |
|---|---|---|---|
| Color: | Black | Material: | Metal |
| WiFi: | 802.11b/g/n(2.4G/5G Optional, Default 2.4G) | Mobile Network: | Support Full Netcom 4G (optional) |
| SD Card: | Maximum Support 64GB | Screen Interface: | EDP Screen Interface / LVDS Screen Interface(optional) |

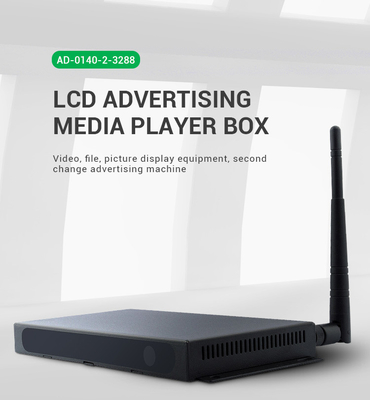

4K UHD Media Player Box RK3288 Quad-core USB UART Android 6.0 EDP LVDS Ethernet
Model No: AD-0140(AD-B02P)

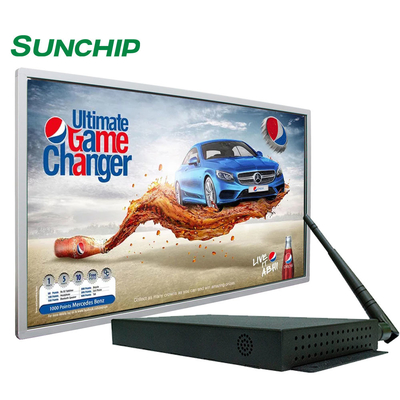

Sunchip’s digital signage media player is a powerful device that can turn any screen into a dynamic digital sign. Once the device is connected, you can update, monitor and manage your screen by using digital signage software.
Android RK3288 box is a plug and play box. It connects to any monitor to turn the monitor into an Android based display.
It adopts with RK3288 main-chip, it's a Cortex-A17 Architecture Quad-core Processor, 28nm process design, the highest frequency is 1.8GHZ;
Equipped with Android 6-10 system;
It comes with standard 2GB DDR3 and 16GB EMMC
The Android system support customization, providing system call interface API reference code,
perfectly supporting customer upper-level application development.
It is widely used to attach to smart self-service terminals, educational information terminals, intelligent display terminals, such as self-service vending machines, educational electronic class signages, smart access control equipment, digital signage, etc.
High performance. The RK3288 chip adopts the quad-core A17 solution, which is one of the most powerful quad-core chips on the market. The RK3288 motherboard solution using this chip has a qualitative leap in performance compared to the common single-core, dual-core, and quad-core solutions on the market. It can play various formats of high-definition video screens and can handle complex interactive operations.
High stability. The RK3288 Android integrated board adds its own unique technology to the hardware and software to ensure the stability of the product, which can make the final product reach 7*24 hours unattended.
High integration. RK3288 Android all-in-one board integrates functions such as Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply, etc., which greatly simplifies the design of the whole machine. The ultra-thin motherboard design can make the design of the whole machine more beautiful.

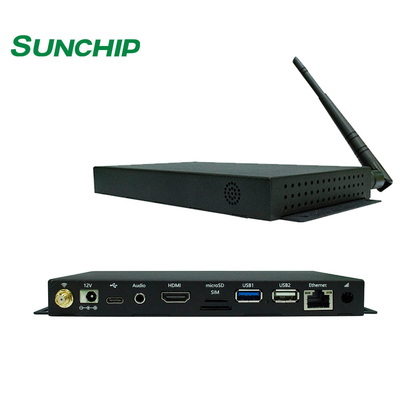

High scalability. 5 USB ports and 3 serial ports, which can expand more peripheral devices.
| Hardware Spec | ||||||
| System | CPU&GPU | RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional, default 2GB) | |||||
| Memory | 8GB/16GB/32GB(optional, default 16GB) | |||||
| Operating system | Android 6.0 ( or 7.1)-10.0 | |||||
| Network | WiFi | 802.11b/g/n(2.4G/5G optional, default 2.4G) | ||||
| Mobile network | Support full Netcom 4G (optional) | |||||
| Bluetooth | Bluetooth 5.2 | |||||
| Ethernet | 10M/100 M Ethernet | |||||
| Language | Multi-Language support | |||||
| Interface | ||||||
| Interface | USB interface | Support USB 2.0 host*2 | ||||
| Micro USB | USB_Debug interface*1 | |||||
| DC | DC power 12V input | |||||
| SD card | Maximum support 64GB | |||||
| HDMI | Support HDMI output Support 4K 60FPS frame rate | |||||
| Screen interface | EDP screen interface / LVDS screen interface(optional) | |||||
| Speaker output | 8Ω*5W * 2(optional) | |||||
| UART | UART2*1(optional) | |||||
| infrared remote control | Support infrared remote control | |||||
| USB port expantion | USB port expandert*1(optional) | |||||
| RJ45 | 10/100M Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Media Parameter | ||||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160 | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Adapter | Power adapter 12V/2A | ||||
| User's Guide | E-User Manual | |||||
| Warranty Card | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 195*100*20 | |||||
| colour box size(L*W*H) | 335*185*65mm | |||||
| Carton size(PCS/CTN)(L*W*H) | 350*350*203mm / 5PCS/CTN | |||||
| Others Parameters | ||||||
| Double screen display | Support Double screen display(optional) | |||||
| Gravity induction | Support 0°90°180°270°manual automatic rotation | |||||
