Product Details:
|
| Product Name: | RK3588 Octa-core CPU 8nm Process 4 X Cortex-A76 And 4 X Cortex-A55 | GPU: | ARM Mali G610 MP4 GPU |
|---|---|---|---|
| NPU: | 6Tops，int4/int8/int16/FP16 | MCU: | For Low Power Contro |
| RAM: | 4G/8GB/16G (optional) | Operating System: | Android 12 |
| Dual Wired Network: | Support 1000M Wired Network Network*2 | ROM: | 32GB/64GB/128GB (optional) |

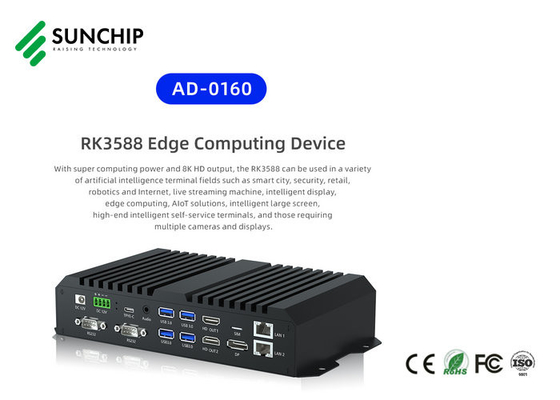

RK3588 Android 12 8K HD Media Player Box RS232 RS485 WIFI Gigabit Ethernet UHD Octa Core metal player box
RK3588 introduces a new generation totally hardware-based maximum 48-Megapixel ISP (image signal processor). It implements a lot of algorithm accelerators, such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, dehaze, fisheye correction, gamma correction and so on.
The build-in NPU supports INT4/INT8/INT16/FP16 hybrid operation and computing power is up to 6TOPs. In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted.
RK3588 has high-performance quad channel external memory interface(LPDDR4/LPDDR4X/LPDDR5) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.
Sunchip has more than 10-year experience on PCBA design and mass-production, also passed the ISO9001 certification. Our office &factory have more than 3500 square meters.
Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.
Product OverView:
-1. Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.
-2. Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance.
-3. Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Main Feature::
1. Octa-Core, 8K output, 4K hardware decoding;
2. Main frequency up to 2.4GhZ;
3. RK3588 performance is higher 3.3 times than RK3399
4. Android 12 OS;
5. Rich interfaces:
6. Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual 1000M LAN;
7. Build-in M.2 SSD Extended interface (SSD optional)
Product informations for RK3588 HD Media Player Box:
| System | CPU | RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU | ARM Mali G610 MP4 GPU | |
| NPU | INT4/INT8/INT16/FP16 mixed computing capability with up to 6TOPs of computing power (INT8) | |
| RAM | 8GB/16G (optional) | |
| Memory | 32GB/64GB/128GB/256GB (optional) | |
| Operating System | Android 12 | |
| Network | WiFi | IEEE 802.11 a/b/g/n/ac |
| Dual wired network | Support 1000M wired network network*2 | |
| Mobile Network | Support wireless 4G network | |
| Bluetooth | BT5.0 | |

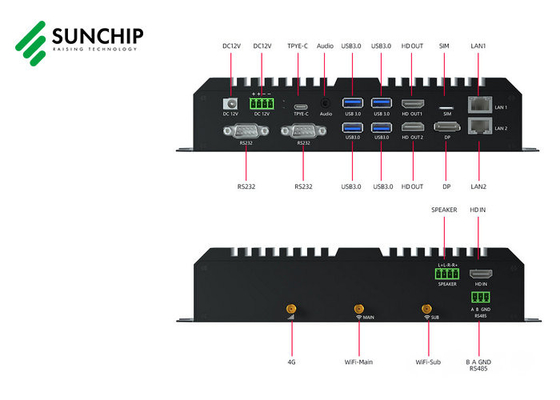

| Motherboard Interface | TYPE_C | Standard Type_c*1 |
| DC holder*1 | Front 5.5/2.5mm | |
| DC terminal input interface*1 |
4PIN pitch 3.81 terminal power input port*1
|
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 |
| Headphones | 3.5MM support stereo with MIC headphone output port |
| USB 3.0 | USB 3.0_A port*2 |
| HDMI_OUT 1 | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) |
| SIM card | SIM card port*1 |
| Ethernet port | Support 10/100/1000M Ethernet*1 |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81mm green terminals * 1 |
| HDMI_IN | Support HDMI 2.0_4K input*1 |
| RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 |
| HDMI_OUT 2 | HDMI 4K 60HZ output*1 (this interface does not work when HDMI_OUT 1 is selected to output 8K) |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 |
| Ethernet port | Support 10/100/1000M Ethernet*1 |

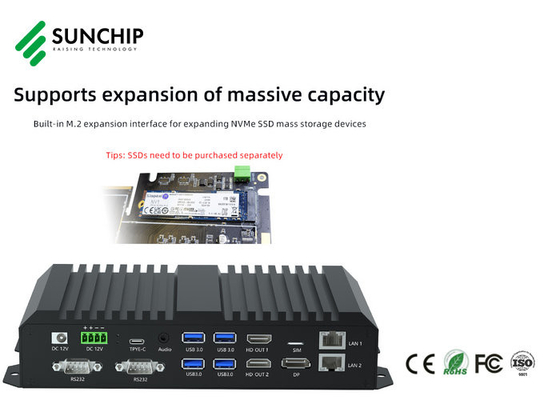

| M.2 internal SSD interface | M.2 built-in SSD expansion interface*1 |
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 |
| General working temperature/humidity | Temperature:-20-60℃ Humidity 5%-85%RH(non-condensing) |
| General storage temperature/humidity | Temperature:-20-70℃ Humidity 5%-85%RH(non-condensing) |
| Color | Black |
| Material | Aluminum alloy + metal profile |
Company File:
FAQ for HD Media Player Box
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
