Product Details:
|
| Operating System: | Android 12 | M.2 Built-in SSD Interface: | M.2 Built-in SSD Expansion Interface*1 |
|---|---|---|---|
| CPU: | RK3588 Octa-core CPU 8nm Process 4 X Cortex-A76 And 4 X Cortex-A55 | GPU: | ARM Mali G610 MP4 GPU |
| RS485, RS232: | YES | NPU: | 6Tops，int4/int8/int16/FP16 |
| MCU: | For Low Power Control | Dual-Ethernet: | Support 10/100/1000M Ethernet*2 |
| Mobile Network: | Supports Wireless 4G Network | Max Resolution: | 8K |
| Shell Material: | Aluminum Alloy + Metal Profile | ||
| High Light: | Edge Computing Media Player Box,Double Ethernet Media Player Box,6Tops Edge Computing Device |
||

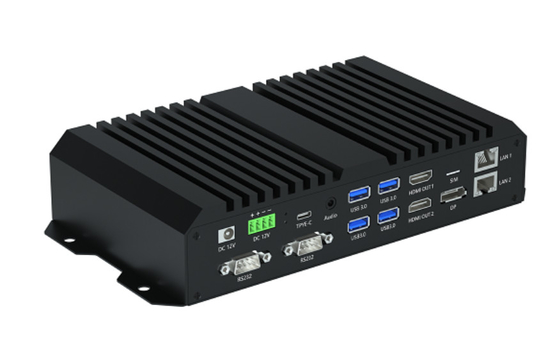

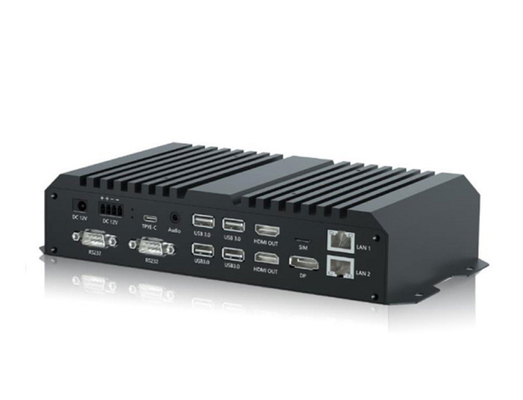

Edge Computing Built-in SSD Expansion Rockchip RK3588 AIot 8K Double Ethernet Media Box
| System | CPU | RK3588 octa-core CPU 8nm process 4 x Cortex-A76 and 4 x Cortex-A55 | |||||||||||||
| GPU | ARM Mali G610 MP4 GPU | ||||||||||||||
| NPU | 6Tops,int4/int8/int16/FP16 | ||||||||||||||
| MCU | for low power control | ||||||||||||||
| RAM | 8GB/16G (optional) | ||||||||||||||
| Internal Memory | 32GB/64GB/128GB/256GB(optional) | ||||||||||||||
| Operating System | Android 12 | ||||||||||||||
| Network | WiFi | IEEE 802.11 a/b/g/n/ac | |||||||||||||
| Dual-Ethernet | Support 10/100/1000M Ethernet*2 | ||||||||||||||
| Mobile Network | Supports wireless 4G network | ||||||||||||||
| Bluetooth | Bluetooth5.0 | ||||||||||||||

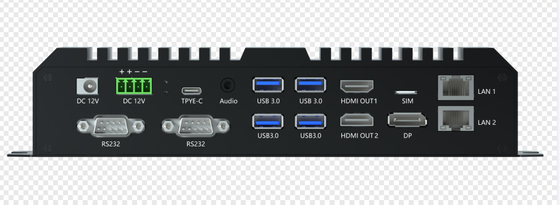

| Interfaces | Upper Layer Interfaces | Type_C | USB Type_C*1 | ||||||||||||
| DC holder*1 | DC_12V input 5.5*2.5mm plug | ||||||||||||||
| DC terminal input interface*1 | DC_12V input 4PIN pitch 3.81mm terminal | ||||||||||||||
| Headphone | 3.5MM support stereo with MIC headphone output port | ||||||||||||||
| USB 3.0 | USB 3.0_A*2 | ||||||||||||||
| HDMI_OUT_1 | HDMI-A 2.1 output*1 (Maximum support 7680*4320 60HZ output single HDMI display) | ||||||||||||||
| SIM card | SIM card slot*1 | ||||||||||||||
| Ethernet port | Support 10/100/1000M Ethernet*1 | ||||||||||||||
| Speaker | Dual channel 4 Ohm 5W speaker interface 4PIN pitch 3.81 green terminals *1 | ||||||||||||||
| HDMI_IN*1 | HDMI-A 2.0_in*1(Supports up to 3840x2160p@30Hz and 4096x2160p@24Hz video inputs) | ||||||||||||||

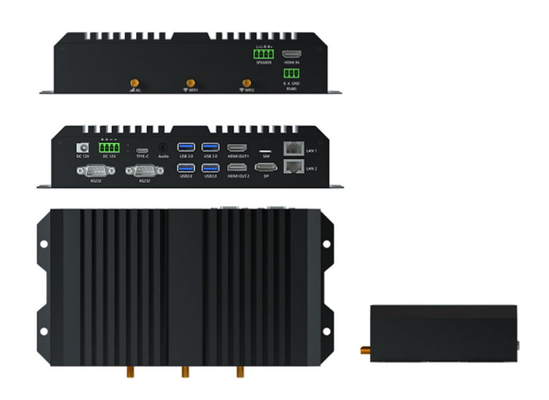

| Lower Layer Interfaces | RS232 COM | RS232 output DB9*2 | |||||||||||||
| USB 3.0 | USB 3.0_A*2 | ||||||||||||||
| HDMI_OUT_2 | HDMI-A*1 Support 4K60HZ output (with DP video output, one of two choices) | ||||||||||||||
| DP(Display Port) | DP display output interface *1 maximum support 7680x4320@30Hz output *1 (with HDMI_OUT2 video output, one of two options) | ||||||||||||||
| Ethernet port | Support 10/100/1000M Ethernet*1 | ||||||||||||||
| M.2 Built-in SSD interface | M.2 Built-in SSD expansion interface*1 | ||||||||||||||
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 | ||||||||||||||
| Indicator light | Indicator light | Red and blue | |||||||||||||
| Button | Button | Upgrade button*1 | |||||||||||||
| Usage environment | Working Environment | Temperature:-20℃~60℃,5%-85%RH(No condensation) | |||||||||||||
| Storage environment | Temperature:-20℃~70℃,5%-95%RH(No condensation) | ||||||||||||||
| Material | Shell material | Aluminum alloy + metal profile | |||||||||||||
| Size | Product Size | Shell size:244*128*49.5MM | |||||||||||||
| Package Size | Single package size | Single box size:286*175*110MM | |||||||||||||
FAQ for HD Media Player Box
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
