RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet

RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet
RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet

Large Image :  RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet

Product Details:
Place of Origin: Shenzhen, China
Brand Name: ADW
Certification: CE, ROHS, FCC, ISO9001
Model Number: AD-0140(AD-B02P)
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $66~$85
Packaging Details: Carton / Wooden case
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 6000 Units per Month

RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet

Description
Operating System: Android 6.0 ( Or 7.1) CPU&GPU: RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764
Color: Black Material: Metal
WiFi: 802.11b/g/n(2.4G/5G Optional, Default 2.4G) Mobile Network: Support Full Netcom 4G (optional)
SD Card: Maximum Support 64GB Screen Interface: EDP Screen Interface / LVDS Screen Interface(optional)
High Light:

USB UART 4K UHD Media Player

,

LVDS 4K UHD Media Player

,

RK3288 UHD Media Player

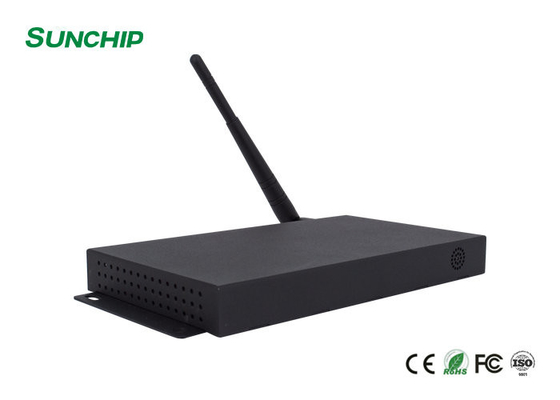

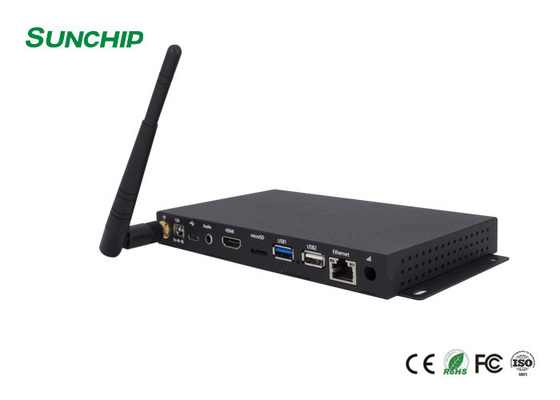

4K UHD Media Player Box RK3288 Quad-core USB UART Android 6.0 EDP LVDS Ethernet



Model No: AD-0140(AD-B02P)







Sunchip’s digital signage media player is a powerful device that can turn any screen into a dynamic digital sign. Once the device is connected, you can update, monitor and manage your screen by using digital signage software.











Characteristic:

  • High performance. The RK3288 chip adopts the quad-core A17 solution, which is one of the most powerful quad-core chips on the market. The RK3288 motherboard solution using this chip has a qualitative leap in performance compared to the common single-core, dual-core, and quad-core solutions on the market. It can play various formats of high-definition video screens and can handle complex interactive operations.



  • High stability. The RK3288 Android integrated board adds its own unique technology to the hardware and software to ensure the stability of the product, which can make the final product reach 7*24 hours unattended.



  • High integration. RK3288 Android all-in-one board integrates functions such as Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply, etc., which greatly simplifies the design of the whole machine. The ultra-thin motherboard design can make the design of the whole machine more beautiful.



  • High scalability. 5 USB ports and 3 serial ports, which can expand more peripheral devices.



RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet 0RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet 1RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet 2RK3288 Quad Core 4K UHD Media Player Box USB UART Android 6.0 EDP LVDS Ethernet 3



Hardware Spec
System CPU&GPU RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764
RAM 2GB/4GB (optional, default 2GB)
Memory 8GB/16GB/32GB(optional, default 16GB)
Operating system Android 6.0 ( or 7.1)
Network WiFi 802.11b/g/n(2.4G/5G optional, default 2.4G)
Mobile network Support full Netcom 4G (optional)
Bluetooth Bluetooth 4.0
Ethernet 10M/100 M Ethernet
Language Multi-Language support

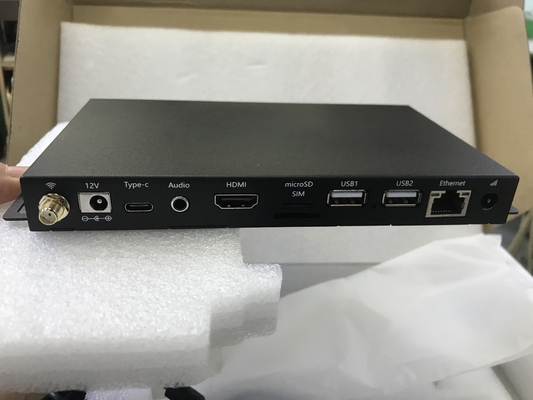

Interface
Interface USB interface Support USB 2.0 host*2
Micro USB USB_Debug interface*1
DC DC power 12V input
SD card Maximum support 64GB
HDMI Support HDMI output Support 4K 60FPS frame rate
Screen interface EDP screen interface / LVDS screen interface(optional)
Speaker output 8Ω*5W * 2(optional)
UART UART2*1(optional)
infrared remote control Support infrared remote control
USB port expantion USB port expandert*1(optional)
RJ45 10/100M Ethernet port
Headset 3.5mm stereo headphone output
Media Parameter
Media Playback Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160
Audio format MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format
Text processing EPUB, WORD, EXCEL, POWERPOINT, PDF
Ebook   PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Image Format JPG,BMP,PNG
System Management
System Management APK install APK installer
Root permission Original Android system, open root permissions, product customization development
Remote control Real-time remote monitoring, 7*24 hours unattended
OTA upgrade Support OTA remote upgrade

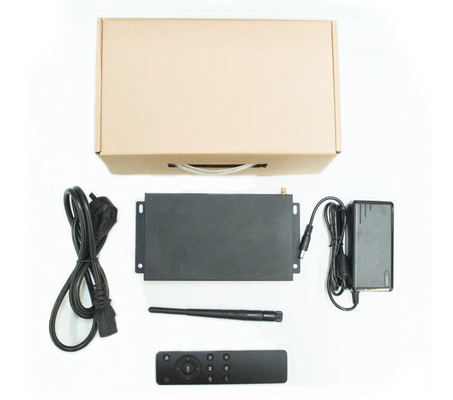

Accessories
Accessories Adapter Power adapter 12V/2A
User's Guide E-User Manual
Warranty Card Standard
Size(unit:mm)
Product size(L*W*H) 195*100*20
colour box size(L*W*H) 335*185*65mm
Carton size(PCS/CTN)(L*W*H) 350*350*203mm / 5PCS/CTN
Others Parameters
Double screen display Support Double screen display(optional)
Gravity induction Support 0°90°180°270°manual automatic rotation
