RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops

RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops
RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops

Large Image :  RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops

Product Details:
Place of Origin: CHINA
Brand Name: SUNCHIP // ADW
Certification: CE FCC ROHS ISO9001
Model Number: AD-0160 BOX
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: If in-stock, in 3 days; If out of stock, in 30 days;
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000PCS/Month

RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops

Description
CPU: RK3588 Octa-Core 8K GPU: ARM Mali G610 MP4 GPU
NPU: 6Tops, Int4/int8/int16/FP16 Operating System: Android 12
Mobile Network: Support Wireless 4G Network Material: Metal Case
Application Scenario: Industrial-control Applicaiton RS232 & RS485: YES
High Light:

Edge Computing HD media player Box

,

5GHz HD media player Box

,

RK3588 HD Industrial Control Box





RK3588 5GHz Edge Computing IoT NPU 6Tops 8K Android 12 RS232 RS485 Industrial Control HD media player Box from Sunchip







Product Model: AD-0160 BOX

Product Name: RK3588 Edge Computing Device



Main Features:

1, Octa-Core, 8K output, 4K hardware decoding;

2, Main frequency up to 2.4GhZ;

3, RK3588 performance is higher 3.3 times than RK3399

4, Double-layer board;

5, Android 12 OS;

6, RAM: 8GB/16GB optional

7, ROM: 32GB/64GB/128GB/256GB optional

8, Dimension 244*128*49.5mm



9, Rich interfaces:

HDMI output *2; DP output *1; HDMI input *1;

USB 3.0 *4; RS232 *2; RS485 *1; DC-IN *2; Audio *1; Type-C *1; Speaker *1;

1000M Ethernet *2; 4G SIM Card Slot *1;



10, Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual 1000M LAN;

Build-in M.2 SSD Extended interface (SSD optional)









Product Specificaiton:



System CPU RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55
GPU ARM Mali G610 MP4 GPU
NPU 6Tops, int4/int8/int16/FP16
MCU for low power control
RAM 8GB/16G (optional)
Memory 32GB/64GB/128GB/256GB (optional)
Operating System Android 12
Network WiFi IEEE 802.11 a/b/g/n/ac
Dual wired network Support 1000M wired network network*2
Mobile Network Support wireless 4G network
Bluetooth BT5.0
Motherboard Interface TYPE_C Standard Type_C*1
DC holder*1 Front 5.5/2.5mm
DC terminal input interface*1 4PIN pitch 3.81 terminal power input port*1
Headphones 3.5MM support stereo with MIC headphone output port
USB 3.0 USB 3.0_A port*2
HDMI_OUT A port Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display)
SIM card SIM card port*1
Wired network port RJ45 network port*1
Horn Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81 green terminals * 1
HDMI_IN Support HDMI 2.0_4K input*1
Sub-board interface RS232 COM port RS232 output port DB9*2
USB 3.0 USB 3.0_A port*2
HDMI_OUT A port Support HDMI 4K60HZ output*1
DP display interface DP display output interface*1 7680x4320@30Hz output*1
Wired network port RJ45 network port*1
M.2 internal SSD interface M.2 built-in SSD expansion interface*1
RS485 RS485 3PIN pitch 3.81 green terminal block*1
Environmental parameters General working temperature/humidity -20℃-60℃, 30%RH-60%RH
General storage temperature/humidity 22±4℃ , 30%RH-60%RH
Housing Color Black
Material Profile
Size Motherboard Size 200*125mm
Sub-board size 200*125mm
Whole machine size 244*128*49.5mm
Other Indicator light Red and blue 2 colors
Button Upgrade key*1
  Power adapter DC:12V/3A

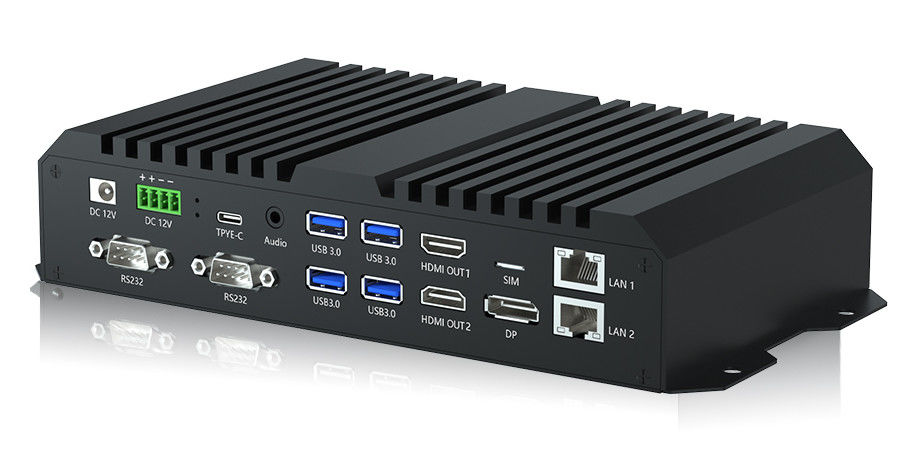

Product Pictures:





RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops 0

RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops 1











Sunchip Office:

RK3588 5GHz Industrial Control HD Media Player Box Edge Computing IoT NPU 6Tops 2









RK3588 Octa-Core 8K output 4K hardware decoding DP LVDS WIFI 5G BT 5.0 SSD Android 12 Edge Computer Industrial Media Player box​







Product OverView:

  • Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.
  • Support Android 12 system.
  • Enhanced power management circuit, support common external devices, rich interface, stable performance.
  • Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.







Product Features:

  • Support multiplexed display (single-port maximum support 7680*4320 60HZ)
  • Multiple interaction mode interface: capacitive touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless WIFI, Bluetooth.
  • Multiple USB interfaces, RS3232, RS485 serial ports.
  • Strong resistance to electromagnetic interference and electromagnetic compatibility.





Rockchip 8K RK3588 Android 12 RS232 RS485 DP HD MINI PC Industrial Control Box
