Product Details:
|
| CPU: | RK3588 Octa-core CPU 8nm Process 4 X Cortex-A76 And 4 X Cortex-A55 | GPU: | ARM Mali G610 MP4 GPU |
|---|---|---|---|
| NPU: | 6Tops，int4/int8/int16/FP16 | MCU: | For Low Power Control |
| Operating System: | Android 12 | Dual-Ethernet: | Support 10/100/1000M Ethernet*2 |
| Mobile Network: | Supports Wireless 4G Network | M.2 Built-in SSD Interface: | M.2 Built-in SSD Expansion Interface*1 |
| Max Resolution: | 8K | Shell Material: | Aluminum Alloy + Metal Profile |
| Interface: | RS485,RS232,HD IN , HD OUT, DP, USB, SIM, TF, Etc. | ||
| High Light: | RK3588 industrial AIoT device,metal profile industrial AIoT device,Android 12 8K Video Box |
||
RK3588 AIoT 2.4GHz AI box 8G 32G industrial level AIoT device Android 12 RockChip 8K video box

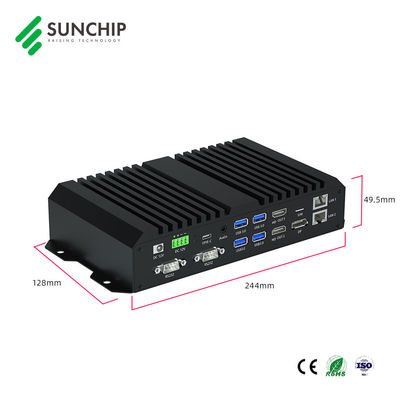

Sunchip AD-0160, It is an intelligent industrial all-in-one large board, using Rockchip RK3588 (quad-core Cortex-A76 and quad-core Cortex-A55) octa-core chip solution.
Support Android 12 system. Enhanced power management circuit, support common external devices, rich interface, stable performance.
Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Features
-Support multiplexed display (single-port maximum support 7680*4320 60HZ)
-Multiple interaction mode interface: capacitive touch, infrared remote control, USB keyboard and mouse, multi-point optical touch
-Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth.
-Multiple USB interfaces, RS3232, RS485 serial ports, DP, HD IN, HD Out, Audio, SIM, ect.
-Strong resistance to electromagnetic interference and electromagnetic compatibility.
| System | CPU | RK3588 octa-core CPU (quad-core Cortex-A76 and quad-core Cortex-A55) |
| GPU | ARM Mali G610 MP4 GPU | |
| NPU | 6Tops,int4/int8/int16/FP16 | |
| MCU | for low power contro | |
| RAM | 4G/8GB/16G (Optional) | |
| Storage ROM | 32GB/64GB/128GB/256GB(Optional) | |
| OS | Android 12 |
| Internet | WiFi | IEEE 802.11a/b/g/n/ac |
| Ethernet | Support 1000M Ethernet*2 | |
| Mobile Network | Support full Netcom 4G (5G is under development) | |
| Bluetooth | BT5.0 |

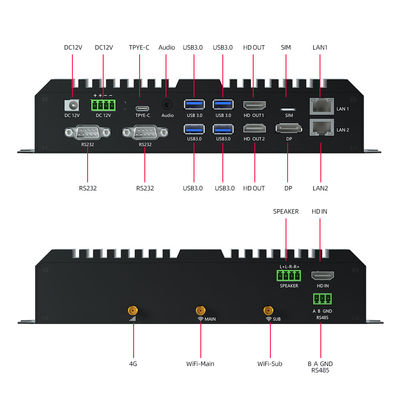

| Interface | TYPE_C | Standard Type_c*1 |
| DC IN connector *1 | 5.5/2.5MM | |
| DC IN Terminal *1 | 4PIN pitch 3.81 DC IN terminal *1 | |
| Earphone | 3.5MM stereo with MIC headphone output | |
| USB 3.0 | USB 3.0_A*2 | |
| HDMI_OUT A | Support HDMI 2.1 _OUT*1 (single HDMI display supports up to 7680*4320 60HZ output) | |
| SIM Card Slot | SIM Card Slot*1 | |
| Ethernet | RJ45*1 | |
| Spearker | Two-channel 4Ω 5W speaker interface 4PIN spacing 3.81 green terminal*1 | |
| HDMI_IN | Support HDMI 2.0_4K Input *1 | |
| RS232 COM port | RS232 Output DB9*2 | |
| USB 3.0 | USB 3.0_A *2 | |
| HDMI_OUT A Port | Support HDMI 4K60HZ Output*1 | |
| DP display interface | DP display interface*1 7680x4320@30Hz Output*1 | |
| Ethernet | RJ45*1 | |
| M.2 built-in SSD interface | M.2 built-in SSD expansion interface*1 | |
| RS485 | RS485 4PIN pitch 3.81 green terminal *1 |
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android board for industrial digital signage,
(RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)
2, Android digital signage media player box, (RK3328, RK3288, RK3399)
3, Stretched lcd display signage,
4, Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)
5, Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)
6, Embedded touch desk, (Such as, 32-inch, ...)
7, Face recognition temperature detection and attendance equipment, (8-inch)
8, CMS system. (Publish contents/programs by remotely.)
