Product Details:
|
| CPU: | RK3588 8-core CPU 8nm Process 4 Cortex-A76 And 4 Cortex-A55 | GPU: | ARM Mali G610 MP4 GPU |
|---|---|---|---|
| NPU: | 6Tops, Int4/int8/int16/FP16 | MCU: | For Low Power Control |
| RAM: | 8GB/16G (optional) | ROM: | 32GB/64GB/128GB/256GB (optional) |
| Operating System: | Android 12 | WiFi: | IEEE 802.11 A/b/g/n/ac |
| Bluetooth: | 1000M Wired Network Network*2 | Dual Wired Network: | BT5.0 |
| Mobile Network: | Support Wireless 4G Network | Material: | Metal Case |
| High Light: | HD Media Player Box RK3588,Metal Case HD Media Player Box,RK3588 8K Media Player Box |
||
Edge Computing PC RK3588 Octa core board 8K industrial
HD Media player box RS232 RS485 dual lan 5g wifi 5.0bt DP
Product OverView:
Intelligent industrial all-in-one large board, using Rockchip RK3588 octa-core chip solution.
Support Android 12 system.
Enhanced power management circuit, support common external devices, rich interface, stable performance.
Suitable for intelligent remote network control: class industrial, medical, large advertising machines, educational video terminals and other equipment.
Product Features:
--Support multiplexed display (single-port maximum support 7680*4320 60HZ)
--Multiple interaction mode interface: capacitive touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
--Multiple network interfaces: Ethernet, wireless WIFI, Bluetooth.
--Multiple USB interfaces, RS3232, RS485 serial ports.
--Strong resistance to electromagnetic interference and electromagnetic compatibility.
Product Specificaiton:
| System | CPU | RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU | ARM Mali G610 MP4 GPU | |
| NPU | 6Tops, int4/int8/int16/FP16 | |
| MCU | for low power control | |
| RAM | 8GB/16G (optional) | |
| Memory | 32GB/64GB/128GB/256GB (optional) | |
| Operating System | Android 12 |
| Network | WiFi | IEEE 802.11 a/b/g/n/ac |
| Dual wired network | Support 1000M wired network network*2 | |
| Mobile Network | Support wireless 4G network | |
| Bluetooth | BT5.0 |
| Motherboard Interface | TYPE_C | Standard Type_C*1 |
| DC holder*1 | Front 5.5/2.5mm | |
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 | |
| Headphones | 3.5MM support stereo with MIC headphone output port | |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT A port | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) | |
| SIM card | SIM card port*1 | |
| Wired network port | RJ45 network port*1 | |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81 green terminals * 1 | |
| HDMI_IN | Support HDMI 2.0_4K input*1 |
| Sub-board interface | RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT A port | Support HDMI 4K60HZ output*1 | |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 | |
| Wired network port | RJ45 network port*1 | |
| M.2 internal SSD interface | M.2 built-in SSD expansion interface*1 | |
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 |
| Environmental parameters | General working temperature/humidity | -20℃-60℃, 30%RH-60%RH |
| General storage temperature/humidity | 22±4℃ , 30%RH-60%RH |
| Housing | Color | Black |
| Material | Profile |
| Size | Motherboard Size | 200*125mm |
| Sub-board size | 200*125mm | |
| Whole machine size | 244*128*49.5mm |
| Other | Indicator light | Red and blue 2 colors |
| Button | Upgrade key*1 | |
| Power adapter | DC:12V/3A |

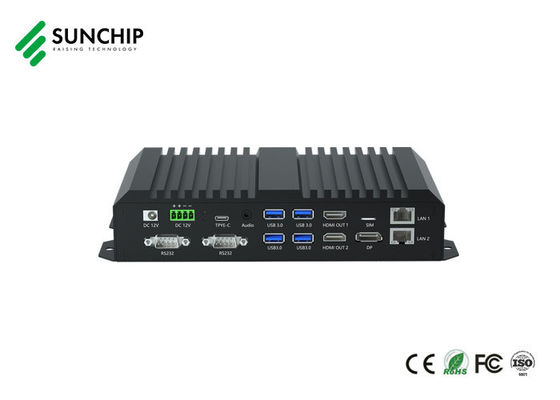

Product Pictures:
Sunchip Office:
Welcome to inquire us!
RK3588 industrial-control player box 8K Octa-Core
Edge Computing BOX from SUNCHIP
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
