RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box

Certification
China SHENZHEN SUNCHIP TECHNOLOGY CO., LTD certification
China SHENZHEN SUNCHIP TECHNOLOGY CO., LTD certification
Customer Reviews
Awesome news! I know your team has worked hard, thanks for finish the project so quickly.

—— Brian Walker

I like your sample very much. Looking forward to growing our partnership.

—— Jenny Westbrook

I'm Online Chat Now

RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box

RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box
RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box
RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box

Large Image :  RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box

Product Details:
Place of Origin: CN
Brand Name: Sunchip
Certification: CE/Rohs
Model Number: AD-0160
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 1~3 days if have stock, 30days if no stock
Payment Terms: T/T, Western Union
Supply Ability: 200PCS/WEEK

RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box

Description
Product Name: RK3588 Octa-core CPU 8nm Process 4 X Cortex-A76 And 4 X Cortex-A55 GPU: ARM Mali G610 MP4 GPU
NPU: 6Tops,int4/int8/int16/FP16 MCU: For Low Power Contro
RAM: 4G/8GB/16G (optional) Operating System: Android 12
Dual Wired Network: Support 1000M Wired Network Network*2
High Light:

Android 12 HD Media Player Box

,

RK3588 HD Media Player Box

,

RS485 8k media player box

RK3588 Android 12 8K HD Media Player Box RS232 RS485 industry player box

Overview for RK3588 HD Media Player Box:

RK3588 is a low power, high performance processor for ARM-based PC and Edge Computing device, personal mobile internet device and other digital multimedia applications, and integrates quad-core Cortex-A76 and quad-core Cortex-A55 with separately NEON coprocessor.
Many embedded powerful hardware engines provide optimized performance for high-end application. RK3588 supports H.265 and VP9 decoder by 8K@60fps, H.264 decoder by 8K@30fps, and AV1 decoder by 4K@60fps, also support H.264 and H.265 encoder by 8K@30fps, high-quality JPEG encoder/decoder, specialized image preprocessor and postprocessor.
Embedded 3D GPU makes RK3588 completely compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2. Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation.

Characteristic for RK3588 HD Media Player Box:

RK3588 introduces a new generation totally hardware-based maximum 48-Megapixel ISP (image signal processor). It implements a lot of algorithm accelerators, such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, dehaze, fisheye correction, gamma correction and so on.
The build-in NPU supports INT4/INT8/INT16/FP16 hybrid operation and computing power is up to 6TOPs. In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted.
RK3588 has high-performance quad channel external memory interface(LPDDR4/LPDDR4X/LPDDR5) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.



Sunchip has more than 10-year experience on PCBA design and mass-production, also passed the ISO9001 certification. Our office &factory have more than 3500 square meters.

Sunchip can provide one-stop service, from PCB layout, prototype, production, PCBA SMT, testing, housing design, assembly, software customization, QC control, after-sale etc.



Basic specifications for RK3588 HD Media Player Box:



System CPU RK3588 octa-core CPU 8nm process 4 x Cortex-A76 and 4 x Cortex-A55
GPU ARM Mali G610 MP4 GPU
NPU 6Tops,int4/int8/int16/FP16
MCU for low power contro
RAM 4G/8GB/16G (optional)
Internal memory 32GB/64GB/128GB/256GB(optional)
Operating system Android 12
Network WiFi IEEE 802.11a/b/g/n/ac
Dual wired network Support 1000M wired network network*2
Mobile Network Supports wireless 4G network (5G undetermined)
Bluetooth BT5.0 above

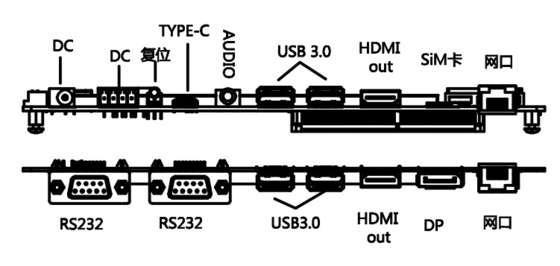

Interfaces Upper Layer Interfaces TYPE_C Standard Type_c*1
DC holder*1 Front 5.5/2.5MM
DC terminal input interface*1 4PIN pitch 3.81 terminal power input port*1
Earphone 3.5MM support stereo with MIC headphone output port
USB 3.0 USB 3.0_A*2
HDMI_OUT A Support HDMI 2.1 _OUT*1 (Maximum support 7680*4320 60HZ output single HDMI display)
SIM card SIM card slot*1
Wired network port RJ45*1
Speaker Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81 green terminals * 1
HDMI_IN Support HDMI 2.0_4K input*1
Lower Layer Interfaces RS232 COM RS232 output DB9*2
USB 3.0 USB 3.0_A*2
HDMI_OUT A口 Supoort HDMI 4K60HZ output*1
DP(Display Port) DP*1 7680x4320@30Hz output*1
Wired network port RJ45*1
M.2 Built-in SSD interface M.2 Built-in SSD expansion interface*1
RS485 RS485 4PIN pitch 3.81 green terminal block*1
Other Indicator light Red & Blue 2 colors
Key Upgrade key*1


RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box 0RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box 1

Company File



RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box 2RK3588 Android 12 8K HD Media Player Box RS232 RS485 Industry Player Box 3


FAQ for HD Media Player Box

1) Q: Is SUNCHIP a factory or simply a trading company?

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.



2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.



3) Q: How long is the warranty time?

A: 1 Year.



4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.



5) Q: Do you give any discounts ?

A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.



6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
