Product Details:
|
| Solution: | RK3399 | Panel: | 10.1'' LCD CTP |
|---|---|---|---|
| Network: | WIFI, Bluetooth, Ethernet, 4G Mobile LTE, Optional | Front Camera: | Optional |
| High Light: | 4G LTE LCD Interactive Touch Screen,LCD CTP Touch Screen Digital Signage,4G LTE Touch Screen Digital Signage |
||
HD 4G LTE Android 8.0 10.1inch LCD Interactive Touch Screen Digital Signage
Touch screen display digital signage android advertising screen, Indoor Touch Screen Totem Lcd Advertising panel
FEATURES of Digital Signage
Wall mounted series is commercial grade LCD screen technology with Android OS or Linux OS.
They can be used in a wide variety of public environments. These include retail settings, restaurants (as Digital Menu Boards), hotels, schools, hospitals, corporate environments, the possibilities are endless.
* Support optional IR touch, Capacitive touch, printer, NFC, camera, POE, etc. to meet variety of request from the market.
* Support 7*24 Hours long time playback
* FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Backlit, Different screen diagonal, 10.1", 13.3", 15.6", 21.5", 23.8’’, 32", 43”, 49”, 55” 65”, etc.
* Metal housing(optional) have good heat dissipation effect and tempered glass can protect screen effectively.
* With Android OS or Linux OS.
Both systems can achieve software installed, video or pictures playing.
* Supporting connecting WIFI, Ethernet, 4G(option) to achieve different Internet connection access.
* With wall mounting bracket, support portrait or landscape
Specification Of LCD Digital Signage
| System | CPU | RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4 | ||||||||||||
| RAM | 4GB | |||||||||||||
| Internal memory | 32GB | |||||||||||||
| Operation system | Android 7.1 | |||||||||||||
| Touch screen | 10-Point capacitive touch | |||||||||||||
| Display | Panel | 10.1" LCD IPS panel | ||||||||||||
| Resolution | 800*1280 | |||||||||||||
| Contrast ratio | 800 | |||||||||||||
| Luminance | 300cd/㎡ | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Network | WiFi | 802.11b/g/n | ||||||||||||
| Ethernet | 10M/100M/1000M Ethernet | |||||||||||||
| Mobile network | Support built-in mobile 4G network function | |||||||||||||
| Buletooth | Bluetooth 4.0 | |||||||||||||
| Interface | TF card | TF Card (micro SD card), up to 64GB | ||||||||||||
| USB interface | Support USB2.0 host*1 | |||||||||||||
| Micro USB | Support USB3.0 host*1 | |||||||||||||
| Type-C interface | Type-C*1 | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| DC | DC power 12V input | |||||||||||||
| Earphone | 3.5mm stereo headphone output | |||||||||||||
| Media play | Video format | support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.1 player | ||||||||||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP | |||||||||||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||||||||||
| E-books | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||||||||||
| Image format | JPG,BMP,PNG | |||||||||||||
| Other | Speaker | 2*2W | ||||||||||||
| Camera | Pre-optional (default is not available) | |||||||||||||
| Gravity sensor | Support 0° 90° 180° 270° manual automatic rotation | |||||||||||||
| Language | Multi-language | |||||||||||||
| Accessories | Adapter | Adapter,12V/2A | ||||||||||||
| User manual | Standard | |||||||||||||
Application Places Of LCD Digital Signage
It can be matched with corresponding brackets according to different application scenarios, such as different height stands column brackets, which can adapt to different places.
Community, Office, Hotel, Parking, Hospital, Campus, Supermarket, Stores, shopping malls, Factory, Park, business buildings, schools, scenic spots, transportation hubs, Station, Leisure centers, Construction sites and other public service places or Crowded Area to achieve safe and efficient access control of personnel

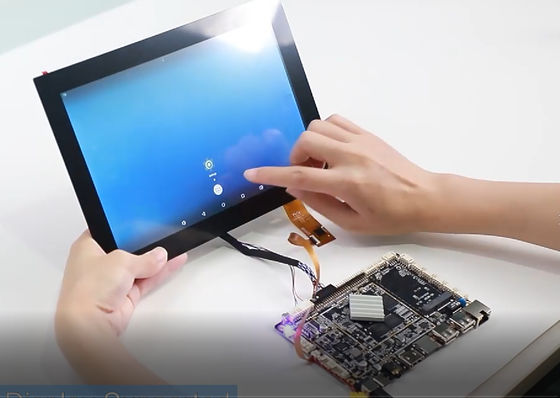

Photos of LCD Digital Signage
FAQ for LCD Digital Signage:
Q: How will you deliver my goods to me?
A: We provide as many as shipping options as possible, such as DHL, FedEx, UPS, TNT, EMS to enable our customers get their goods rapidly at door. We also support to ship by economic method such as air shipping and sea shipping, special line etc.
Q: Can you put my brand name or logo on these products?
A: Yes, we can provide professional OEM. Our company accept to print logo and other customization for bulk production.
Q: Do you have any after-sales service?
A: Yes, our products have professional after-sales dept. And, if you have any technical problem, welcome to contact us.
Q: Are you a trading company or factory?
A: We’re a professional factory that actually also is a solution company who provide software & hardware. And, we can support you with most competitive price, unrivaled quality and service.
Q: When can I get the quotation?
A: We usually can quote in few hours after we get your inquiry. If the requirements are complex, maybe within 24 hours. If it’s urgent, please call us or contact us via email peki@sunchip-tech.com, Skype or WhatsApp.
Q: What’s your warranty?
A: We provide one-year warranty.
Q: How to place bulk order?
A: 1) tell us model number, quantities and other requirements, and firmware requests etc.
2) Proforma Invoice will be issued for your approval.
3) Production will be arranged after receiving the payment.
4) Goods will be delivered as stated the schedule.
