HD 4G LTE Android 7.1 Interactive Digital Signage Display

Customer Reviews
Awesome news! I know your team has worked hard, thanks for finish the project so quickly.

—— Brian Walker

I like your sample very much. Looking forward to growing our partnership.

—— Jenny Westbrook

I'm Online Chat Now

HD 4G LTE Android 7.1 Interactive Digital Signage Display

HD 4G LTE Android 7.1 Interactive Digital Signage Display
HD 4G LTE Android 7.1 Interactive Digital Signage Display
HD 4G LTE Android 7.1 Interactive Digital Signage Display HD 4G LTE Android 7.1 Interactive Digital Signage Display

Large Image :  HD 4G LTE Android 7.1 Interactive Digital Signage Display

Product Details:
Place of Origin: CHINA
Brand Name: ADW
Model Number: AD-1040
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCS
Price: $100 - $160
Packaging Details: Carton; Wooden case;
Delivery Time: Samples: 3-7 days; Mass-Production: 30 days;
Payment Terms: T/T
Supply Ability: 10,000 PCS/Month

HD 4G LTE Android 7.1 Interactive Digital Signage Display

Solution: RK3399 Panel: 10.1'' LCD CTP
Network: WIFI, Bluetooth, Ethernet, 4G Mobile LTE, Optional Front Camera: Optional
High Light:

Android 7.1 interactive digital signage display


RK3399 Interactive Digital Signage Display


RK3399 interactive digital display screens

HD 4G LTE Android 7.1 Interactive Digital Signage Display


Touch screen display digital signage android advertising screen, Indoor Touch Screen Totem Lcd Advertising panel



FEATURES of Digital Signage

Wall mounted series is commercial grade LCD screen technology with Android OS or Linux OS.

They can be used in a wide variety of public environments. These include retail settings, restaurants (as Digital Menu Boards), hotels, schools, hospitals, corporate environments, the possibilities are endless.


1.Support optional IR touch, Capacitive touch, printer, NFC, camera, POE, etc. to meet variety of request from the market.


2.Support 7*24 Hours long time playback


3. FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Backlit, Different screen diagonal, 10.1", 13.3", 15.6", 21.5", 23.8’’, 32", 43”, 49”, 55” 65”, etc.


4. Metal housing(optional) have good heat dissipation effect and tempered glass can protect screen effectively.


5. With Android OS or Linux OS.

Both systems can achieve software installed, video or pictures playing.


6. Supporting connecting WIFI, Ethernet, 4G(option) to achieve different Internet connection access.


7.With wall mounting bracket, support portrait or landscape



Additional Features
1. 10.1 inch (1280x800) 250-300cd/ m²
2. IPS wide view angle and high-contrast screen for stunning colors
3. solution of 10-point CTP Touch Screen
4. Full metal/Plastic construction
5. DC 12V Power Input
6.  industry design
7. Support embedded rack mounted / VESA wall mounted
8. USB touch interface Support Android OS/Linux system



Specification Of LCD Digital Signage


System CPU RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4
Internal memory 32GB
Operation system Android 7.1
    Touch screen 10-Point capacitive touch
Display Panel 10.1" LCD IPS panel
Resolution 800*1280
Contrast ratio 800
Luminance 300cd/㎡
Aspect Ratio 16:10
Network WiFi 802.11b/g/n
Ethernet 10M/100M/1000M Ethernet
Mobile network Support built-in mobile 4G network function
Buletooth Bluetooth 4.0




Interface TF card TF Card (micro SD card), up to 64GB
USB interface Support USB2.0 host*1
Micro USB Support USB3.0 host*1
Type-C interface Type-C*1
RJ45 Ethernet port
DC DC power 12V input
Earphone 3.5mm stereo headphone output
Media play Video format support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.1 player
Audio format MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
Image format JPG,BMP,PNG




Other Speaker 2*2W
Camera Pre-optional (default is not available)
Gravity sensor Support 0° 90° 180° 270° manual automatic rotation
Language Multi-language
Accessories Adapter Adapter,12V/2A
User manual Standard






Application Places Of LCD Digital Signage

It can be matched with corresponding brackets according to different application scenarios, such as different height stands column brackets, which can adapt to different places.

Community, Office, Hotel, Parking, Hospital, Campus, Supermarket, Stores, shopping malls, Factory, Park, business buildings, schools, scenic spots, transportation hubs, Station, Leisure centers, Construction sites and other public service places or Crowded Area to achieve safe and efficient access control of personnel




Touch Screen Wall Mount Lcd Display / Lcd Ad Player Wide Viewing Angle

Featuring IPS LCD screen technology, it offers exceptional color performance and wide viewing angles, making it a perfect interactive display for interactive digital signage.

In addition to the superb image quality, it comes with easy to mount, rugged construction against external impact, making it suitable for demanding environments.

 touch screen is the ideal screen for the kiosk integrators and a solution for Interactive digital signage, store retail, gaming and interactive presentations.




Photos of LCD Digital Signage

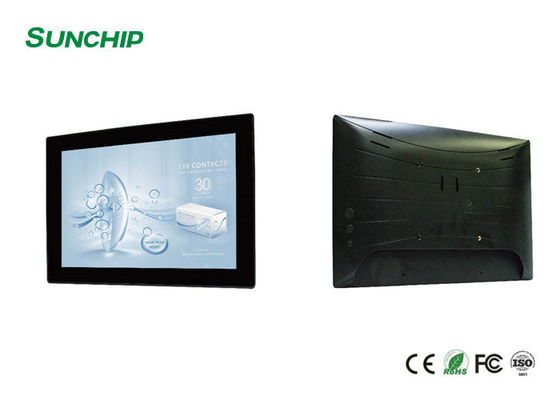

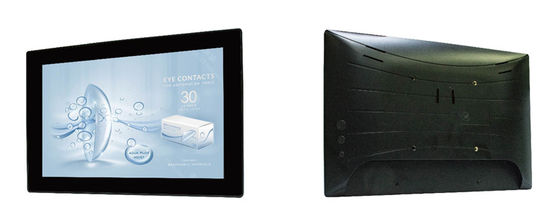

HD 4G LTE Android 7.1 Interactive Digital Signage Display 0

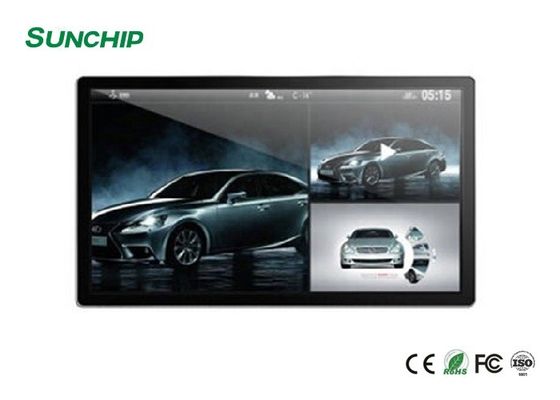

HD 4G LTE Android 7.1 Interactive Digital Signage Display 1







Q: How will you deliver my goods to me?

A: We provide as many as shipping options as possible, such as DHL, FedEx, UPS, TNT, EMS to enable our customers get their goods rapidly at door. We also support to ship by economic method such as air shipping and sea shipping, special line etc.


Q: Can you put my brand name or logo on these products?

A: Yes, we can provide professional OEM. Our company accept to print logo and other customization for bulk production.


Q: Do you have any after-sales service?

A: Yes, our products have professional after-sales dept. And, if you have any technical problem, welcome to contact us.


Q: Are you a trading company or factory?

A: We’re a professional factory that actually also is a solution company who provide software & hardware. And, we can support you with most competitive price, unrivaled quality and service.


Q: When can I get the quotation?

A: We usually can quote in few hours after we get your inquiry. If the requirements are complex, maybe within 24 hours. If it’s urgent, please call us or contact us via email peki@sunchip-tech.com, Skype or WhatsApp.


Q: What’s your warranty?

A: We provide one-year warranty.


Q: How to place bulk order?

A: 1) tell us model number, quantities and other requirements, and firmware requests etc.

2) Proforma Invoice will be issued for your approval.

3) Production will be arranged after receiving the payment.

4) Goods will be delivered as stated the schedule.

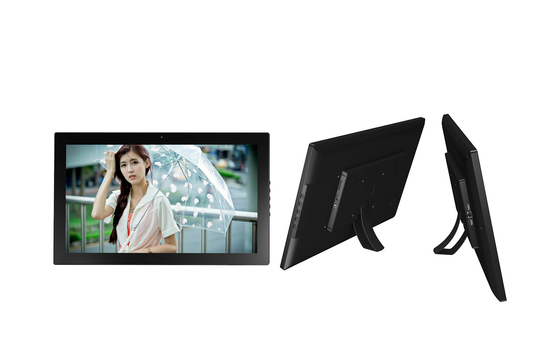

HD 4G LTE Android 7.1 Interactive Digital Signage Display 2
