Product Details:
|
LCD Screen: | LVDS /EDP | CPU: | RK3399 |
---|---|---|---|
Resolution: | 1920*1080 | OS: | Android 7.1/8.0/9.0/10.0 |
WiFi: | 802.11 B/g/n_2.4G , 802.11b/g/n/ac_5G | Network: | 10M/100M/1000M |
LCD Support: | LVDS,EDP Panel And HD | Internet: | WIFI,BT,WLAN,3G,4G |
Interface: | USB,UART,Audio,SIM Card Slot, TF Card Slot, Speaker, HD, Type-C, IR,MIC,etc. | Equipment Support: | Camera, MIC, QR Scanner, Keyboard, Mouse, Printer, Speaker,etc |
Camera Support: | MIPI Camera X2, USB | USB Supports: | Support Usb Camera@500W Usb Printer, U Disk, Mouse, Keyboard And Standard USB Peripherals |
High Light: | Android 9.0 Embedded System Board,EMMC 8G Embedded System Board,EDP LVDS Android Embedded Board |

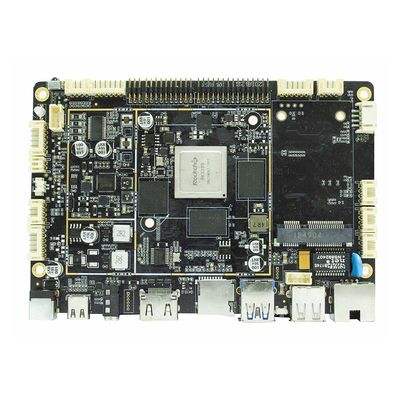

Android 7.1 9.0 10.0 Mainboard RK3399 AI Control Mainboard DDR 4G EMMC-8G With EDP/LVDS/HD For 4K UHD Embedded Board
RK3399 Android integrated board, using RockChip RK3399 six-core 64-bit server-level chip solution, supporting Google Android7.1/8.1/9.0 operating system, RK3399 is a six-core 64-bit CPU based on dual-core A72+ quad- core A53 architecture, the latest GPU Quad-core Mali-T860, the overall running score is up to more than 110,000 points super performance.
Supports mainstream audio and video formats and picture decoding. Support dual-screen different display function, dual 6/8-bit LVDS interface, support 1080P output, can drive 7 inch to 82 inch 1080P display, support EDP display interface output.3G/4G Data communication, support 4K video playback.
Support 2.4GHz/5GHz dual- band WiFi, Bluetooth 4.1-BLE function, high-speed USB3.0, support UART / serial port expansion / I2C port / MIPI camera and other functions, rich interfaces.
A new six-core chip with super performance makes the product more perfect, and is widely used in intelligent control fields suchas witness identification, advertising machines, interactive all-in-one machines, security, medical, transportation, finance,industrial control and so on.
Due to the characteristics of its hardware platform and Android's intelligence, it can be used on the main board of the smart terminal when human-computer interaction and network device interaction are required.
- It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
- Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
- A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
- Multi-channel USB interface, serial output.
- Support 4K video play with HDMI 2.0 HD output.
- Strong anti-electromagnetic interference and electromagnetic compatibility.

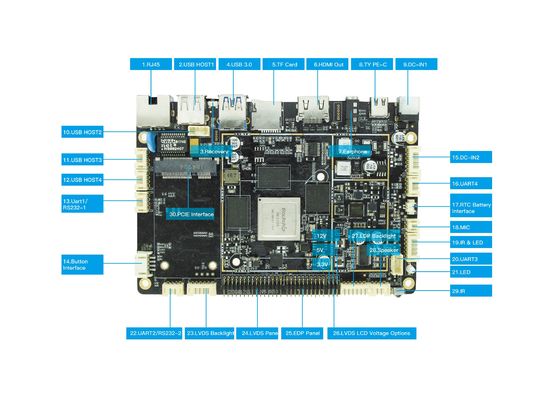

Interface :
1:Used to connect to Ethernet
2:Used for USB2.0 devices
3:Upgrade button
4:For USB3.0 devices
5:Used to store TF card
6:Used to connect HDMI display device
7:Used to insert the headset
8:Used to connect to the computer
9:Used to connect 12V power head
10:Used to connect 4G microphone
11:Used for POE power output
12:Used for USB2.0 devices
13:Used for USB2.0 devices
14:Used to connect SPI1/UART standard devices
15:Used to connect to the small button board
16:Used to connect to the 12V 4PIN interface
17:Used to connect UART standard equipment
18:Used to connect RTC power supply
19: Used to connect microphone
20: Used for external infrared & light
21: LED light
22: Used to connect UART standard equipment
23: used to adjust the LVDS backlight
24: used to connect to the LVDS screen
25: used to connect to the EDP screen
26: used to select the power supply voltage of the LVDS screen
27: Used to adjust EDP backlight
28: Used to connect speakers
29: Used for infrared receiver
30: Used for connecting 4G module
PRODUCTS DETAILS
Basic Information of hardware
Configuration: CPU/RAM/ROM
CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
GPU | ARM Mali-T860MP4 GPU |
Deposit | LPDDR4 4G |
Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (Default 16GB) |
LCD :
Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
EDP screen interface, support resolution 1920x1080 | |
Screen voltage | Support 3.3V/5V/12V optional |
Network | With RJ45 interface, support 10/100/1000 Ethernet |
Support 4G PCIE interface | |
With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 4.2 | |
Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
Real Time Clock | External real-time clock power supply battery |
Interface device | Support MIPI camera x2 |
USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0 | |
3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.) | |
TF card, maximum support 64GB | |
Class D amplifier: 5W*2 8 ohms, support microphone | |
HD MI 2.0 output |
Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
Video | Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
Basic Information of Software
Operating system | Android 7.0 / 9 /10 Optional |
Basic software function | Web browsing, email, e-book, resource manager |
Sound mode | Clock, alarm clock, calculator, recording |
Voice support | Multinational voice |
Recording | Support MP3, WMA format recording |
Tool | Calendar |
Alarm Clock | |
Calculator | |
Note | |
Weather + clock | |
Recording |
File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
Schedule | Calendar |
Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Internet | Browser -Chrome Lite |
Gmail | |
System Management | APK installer |
Original Android system, open root permissions, product customization development | |
Real-time remote monitoring, 7*24 hours unattended | |
Support OTA remote upgrade | |
System setting | |
Google Maps | |
Global time |
Application Field
■ Commercial advertising display machine
■ POS machine
■ Digital photo frame advertising machine
■ Touch all-in-one machine
■ Self-service vending machine
Service:
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
Precautions for assembly and use
In the process of assembly and use, please pay attention to the following (and not limited to) problems.
1. Short circuit between bare board and peripherals;
2. During the installation and fixation process, avoid the deformation of the bare board due to fixation;
3. When installing the eDP/LVDS screen, pay attention to whether the screen voltage and current are consistent, and pay attention to the direction of pin 1 of the screen holder;
4. When installing the eDP/LVDS screen, pay attention to whether the screen backlight voltage and current match. If the screen backlight power is above 20W, whether to use other power boards for power supply;
5. When installing peripherals (USB, IO, ETC), pay attention to peripheral IO levels and current output issues;
6. When installing the serial port, pay attention to whether the connection of TX and RX is correct.
7. Whether the input power is inserted into the power input interface, and whether the input power voltage, current, etc. meet the requirements according to the evaluation of the total peripherals. For the convenience of operation, it is forbidden to connect the power supply input power from the backlight socket.
