Product Details:
|
| CPU Solution: | Rockchip RK3399 | DDR/EMMC: | 4GB; 16G/32G/64G (Default 16GB) |
|---|---|---|---|
| Networks: | WIFI, Bluetooth,Ethernet, 4g LTE | Box Material: | Metal Case |
| G-Sensor: | Support | Real Time Clock: | Support |
| TF Card Slot: | Support 32GB/64GB Capacity | OTG: | Via Type-C Port |
| High Light: | Metal Box Digital Signage Media Player,RK3399 Digital Signage Media Player,4g LTE android digital signage player |
||

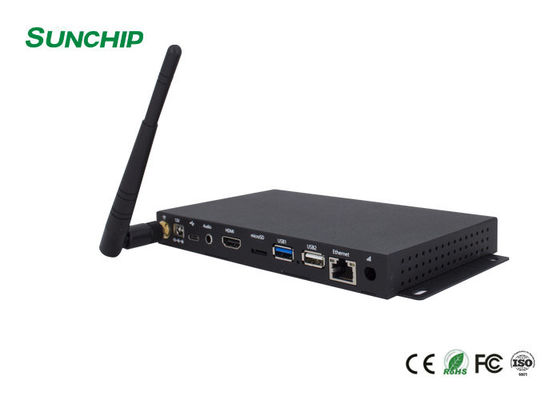

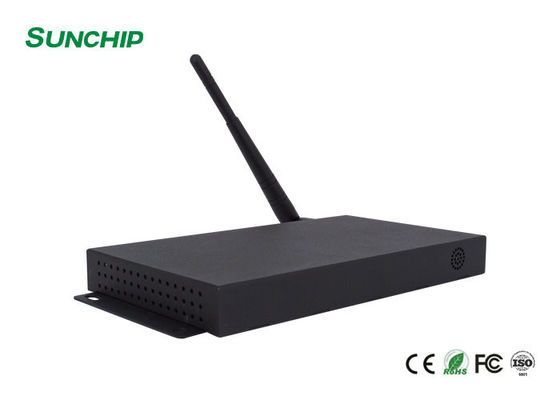

Digital Signage Media Player, Black, Metal BOX, Support WIFI BT Ethernet 4G etc. HD output
1, Output Ultra HD 4K and 1080p video, as well as HTML5 content (including CSS and JavaScript), to any display via an HD interface
2, Enter content via a USB flash drive or over Ethernet or Wi-Fi
3, 24/7 operation thanks to specially designed casing and smart ventilation architecture
4, 16GB of internal storage
5, Up to 64GB microSD cards supported
6, Self-recovery function
7, Fanless, quiet operation
8, App Lock feature to prevent unauthorized access
9, Optional 3rd-party management applications supported
10, Control via included software and OSD
11, Widgets for calendar, clock, news, weather, and web page integration with the ability to add custom-created widgets
12, Multi-zone screen layout, transparent PNG overlay, and graphical scrolling ticker
13, Auto-play starts playing scheduled content automatically when powered on
14, Built-in wall-mount bracket
15, Mounting brackets for rack mounting included
Product Specifictions:
Hardware:
| CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Deposit | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (Default 16GB) |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, support resolution 1920x1080 |
| Screen voltage | Support 3.3V/5V/12V optional |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface | |
| With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0 | |
| Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI camera x2 |
| USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0 | |
| 3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 64GB | |
| Class D amplifier: 5W*2 8 ohms, support microphone | |
| HDMI 2.0 output |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |
SOFTWARE:
| Operating system | Android 7.0, 9.0, 10.0 |
| Basic software function | Web browsing, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multinational voice |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| Gmail |
| System Management | APK installer |
| Original Android system, open root permissions, product customization development | |
| Real-time remote monitoring, 7*24 hours unattended | |
| Support OTA remote upgrade | |
| System setting | |
| Google Maps | |
| Global time |
Complete Digital Signage Solution: Grow your business with this digital signage media player
We mainly manufacture: Digital Signage Box
1, Android board for industrial digital signage,
(RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)
2, Android digital signage media player box, (RK3328, RK3288, RK3399)
3, Stretched lcd display signage,
4, Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)
5, Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)
6, Embedded touch desk, (Such as, 32-inch, ...)
7, Face recognition temperature detection and attendance equipment, (8-inch)
8, CMS system. (Publish contents/programs by remotely.)
Introduction:
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system.
Powerful computing power. Support H.265 4K video playback.
Rich interface and enhanced power management circuit.
Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
