|Advantage:||Small, Convenient To Install, Connect And Operate||Application:||For Industrial Grade Application|
|CPU:||Rockchip RK3288 Quad-core Cortex-A17||Plastic Case:||Metal Box|
|OS:||Android 6.0-9.0||Networks:||WIFI, BT, LAN, 4G Optional|
CMS WIFI HD Media Player Box,
metal HD Media Player Box,
RK3288 android digital signage media player

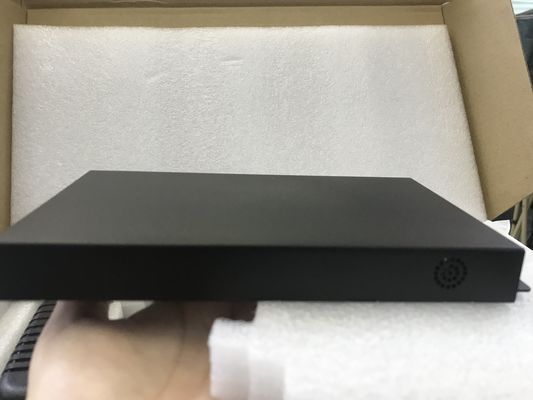

Android digital signage advertising media player box with CMS WIFI BT LAN 4G optional and metal box
With 3288 processor, quad-core A17, the frequency up to 2.2G, mali-t740 quad-core super GPU, 27mn low-power process With minimalist, interstellar, and abundance, micro-look and many other mainstream release system
can simultaneously decode multi-channel video.
Provide common display interface, such as HDMI2.0, LVDS, support for Ethernet, wifi, Bluetooth, 3G / 4G communication; support extended TF card and multiple u disk.
Standard packaging, built-in play box and many accessories, such as 12V / 3A charger, remote control, manual, warranty card, but also optional 3G and 4G Dongle.
Quickly turn your TVs, Monitor and other displays into eye catching digital signage for your business or organization. If you want a great Digital Signage Media Player, then AD-B02P BOX is the best choice you can make.
Digital signage doesn't have to be complicated or expensive.
AD-B02P BOX lets you use any TV to get your message across in an attractive way.
Schedule, manage and upload content to your screens at the click of a button, all from your browser.
Easily display your latest offers, share company news, products and service in video/image/website/scrolling text,
and much more.
|System||CPU&GPU||RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764|
|Operating system||Android 6.0(Linux optional)|
|Mobile network||Support full Netcom 4G (optional)|
|Interface||USB interface||Support USB host*2|
|Micro USB||USB_Debug interface*1|
|DC||DC power 12V input|
|SD card||Maximum support 64GB|
|HDMI||Support HDMI output Support 4K 60FPS frame rate|
|Screen interface||EDP screen interface / LVDS screen interface(optional)|
|Speaker output||8Ω*5W * 2(optional)|
|infrared remote control||Support infrared remote control|
|USB port expantion||USB port expandert*1(optional)|
|RJ45||10/100/1000M Ethernet port|
|Headset||3.5mm stereo headphone output|
|Media Playback||Video format||MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160|
|Audio format||MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format|
|Text processing||EPUB, WORD, EXCEL, POWERPOINT, PDF|
|System Management||APK install||APK installer|
|Root permission||Original Android system, open root permissions, product customization development|
|Remote control||Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended|
|OTA upgrade||Support OTA remote upgrade|
|Accessories||Adapter||Power adapter 12V/2A|
|colour box size(L*W*H)|
|Double screen display||Support Double screen display(optional)|
|Gravity induction||Support 0°90°180°270°manual automatic rotation|
Industrial player for advertising 24/7
Advertising media box 2GB+16GB WIFI/BT/LAN/4G Android OS
Android Digital Signage Advertising Media Player Box android 7.1-10.0
digital signage advertising 4k player Box
RK3288W Solution, Model AD-B02P BOX. --- the highest version is android 9.0 OS.
We mainly manufacture
1, Android board for industrial digital signage,
(RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)
2, Android digital signage media player box, (RK3328, RK3288, RK3399)
3, Stretched lcd display signage,
4, Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)
5, Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)
6, Embedded touch desk, (Such as, 32-inch, ...)
7, Face recognition temperature detection and attendance equipment, (8-inch)
8, CMS system. (Publish contents/programs by remotely.)
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
