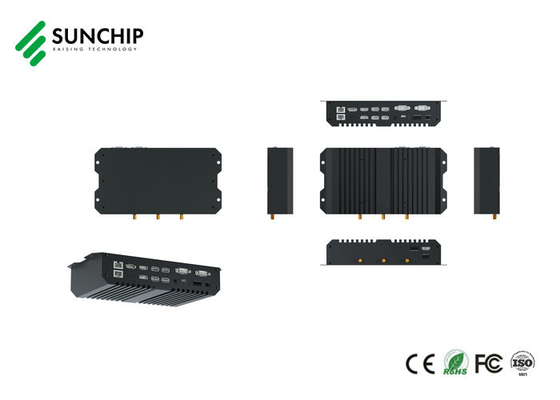

Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional

Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional
Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional
Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional

Large Image :  Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional

Product Details:
Place of Origin: SHENZHEN, CHINA
Certification: ISO9001, CE, ROHS, FCC
Model Number: AD-B02P BOX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: About 20-28 days for mass-production; About 1-3 days for samples;
Payment Terms: T/T
Supply Ability: 10000 PCS per Month

Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional

Advantage: Small, Convenient To Install, Connect And Operate CPU: Rockchip RK3288
RAM: 2G/4G Optional ROM: EMMC 16G/32G/64G Optional
OS: Android 6.0-9.0 G-Sensor: Yes
Networks: WIFI, BT, LAN, 4G Optional Real Time Clock: Supported
Case: Metal Box Application: For Industrial Grade Application
High Light:

Metal digital signage Player box


RK3288 CPU digital signage Player box


4G Optional smart multimedia player


Advertising media digital signage Player box HD Android 6.0 7.1 9.0 2G+16G smart Multimedia player BOX WIFI metal box

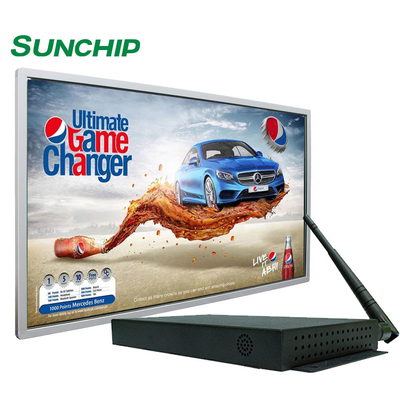

Quickly turn your TVs, Monitor and other displays into eye catching digital signage for your business or organization. If you want a great Digital Signage Media Player, then AD-B02P BOX is the best choice you can make.

Digital signage doesn't have to be complicated or expensive.

AD-B02P BOX lets you use any TV to get your message across in an attractive way.


Schedule, manage and upload content to your screens at the click of a button, all from your browser.

Easily display your latest offers, share company news, products and service in video/image/website/scrolling text,

and much more.



Powerful performance:

With 3288 processor, quad-core A17, the frequency up to 2.2G, mali-t740 quad-core super GPU, 27mn low-power process With minimalist, interstellar, and abundance, micro-look and many other mainstream release system

can simultaneously decode multi-channel video.


Rich interface:

Provide common display interface, such as HDMI2.0, LVDS, support for Ethernet, wifi, Bluetooth, 3G / 4G communication; support extended TF card and multiple u disk.


Perfect supporting:

Standard packaging, built-in play box and many accessories, such as 12V / 3A charger, remote control, manual, warranty card, but also optional 3G and 4G Dongle.


Quad-core RK3288 Android Decoding Driver Integrated Board
(Product model:AD-B02P-V1.0)



Product Advantages:

* life-free but excellent contents management software;
* portrait & landscape orientation for flexible installation of TV;
* industrial grade quality for 24x7 running environment;
* USB plug & play for techphobia hassle-free contents update;
* online remote contents update with user-defined layouts;
* power timing on and off for convenient management;
* multi-accounts perfect for multi-clients management


RK3288 Android integrated board adopts Rockchip RK3288 quad-core chip solution and supports Android 5.1 and above systems. Support the decoding of mainstream audio and video formats and pictures.
Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display screen.
With HDMI interface, it supports 4K video playback.
Abundant interfaces make the products more versatile and are widely used in intelligent control fields such as advertising
machines, all-in-one machines, security, and industrial control. Due to its hardware platform and Android intelligent features,
it can be used as an intelligent terminal platform when human-computer interaction or network device interaction is required.
1, High performance.
The RK3288 chip adopts the quad-core A17 solution, which is one of the most powerful quad-core chips on the market.
The RK3288 motherboard solution using this chip has a qualitative leap in performance compared to the common single-core, dual-core, and quad-core solutions on the market. It can play various formats of high-definition video screens and can handle complex interactive operations.
2, High stability.
The RK3288 Android integrated board adds its own unique technology to the hardware and software to ensure the stability of the product, which can make the final product reach 7*24 hours unattended.
3, High integration.
RK3288 Android all-in-one board integrates functions such as Ethernet, wifi, Bluetooth, 4G, power amplifier, SD card, backlight power supply, etc., which greatly simplifies the design of the whole machine.
The ultra-thin motherboard design can make the design of the whole machine more beautiful.
4, High scalability. 5 USB ports and 3 serial ports, which can expand more peripheral devices.
Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional 0

Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional 1

Contents Management Software(CMS)
CMS is one of the most popular digital signage online management software which allows people quickly and easily to manage centrally controlled network of LCD advertising screens. And CMS can be hosted on On-Premise and Cloud Sever running 24/7 no maintenance hassle.
All of our digital signage products including wall mounted advertising displays, floor standing digital signage kiosks, digital signage media players., etc can be remotely online managed via CMS system. CMS supports remote control, screen layouts edit, playlist scheduling, multi-accounts management, versatile media format including image, video, audio, scrolling message, web page, streaming and live tv feeds., etc. We have numerous of clients from all over the world who are using our CMS system, And now thousands of digital signage players /advertising displays / digital signage totems are working with our CMS software globally.

 Product Specifictions:


Basic Hardware:


CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main frequency 1.8 GHz
Deposit LPDDR3 2G/4G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G etc. optional

Display interface


LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display
EDP interface Maximum resolution 4K
Screen voltage Support 3.3V/5V/12V optional
Touch screen Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen.

The internet



With RJ45 interface, support 10/100M Ethernet.
Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
With 4G module, support 4G network
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional)
Real Time Clock External real-time clock power supply battery



Interface device








Support MIPI camera
Support HDMI output
5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.)
3 IO detection ports
TF card
D class large built-in speaker, 5W*2 8R
Support microphone
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Image Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A

Basic Software:
operating system Android 5.1 and above
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
language support multi-lingual
recording Support MP3, WMA format recording 3gpp, amr and other formats, according to the recording APK is different, the format is different, now the system comes with the amr format







Alarm Clock
Weather + clock
schedule Calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)

The internet



Browser -ChromeLite
System Management APK installer
Original ecological Android system, open root permission, can carry out product customization development
Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended
System setting
Global time
Support OTA remote upgrade


Industrial player for advertising 24/7

Advertising media box 2GB+16GB WIFI/BT/LAN/4G Android OS

Android Digital Signage Advertising Media Player Box android 7.1-10.0

digital signage advertising 4k player Box






RK3288W Solution, Model AD-B02P BOX. --- the highest version is android 9.0 OS.


Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional 2


Metal Case Digital Signage Player Box Rockchip RK3288 CPU WIFI BT LAN 4G Optional 3

We mainly manufacture

1, Android board for industrial digital signage,

(RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)

2, Android digital signage media player box, (RK3328, RK3288, RK3399)

3, Stretched lcd display signage,

4, Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)

5, Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)

6, Embedded touch desk, (Such as, 32-inch, ...)

7, Face recognition temperature detection and attendance equipment, (8-inch)

8, CMS system. (Publish contents/programs by remotely.)




Sunchip is one of Apple's providers and Tesla.

We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.


We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.


1. So far, there are more than 10 years of PCBA design and production experience.

In 2022, we had the 10th Anniversary Celebration.

2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM

3. The whole team has about 160 people.

4. One-stop service: product definition, schematic design, PCB layout design,

prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.

5. Passed ISO9001 factory certification

6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
