|Advantage:||Small, Convenient To Install, Connect And Operate||CPU:||Rockchip RK3288|
|RAM:||2G/4G Optional||ROM:||EMMC 16G/32G/64G Optional|
|Networks:||WIFI, BT, LAN, 4G Optional||Real Time Clock:||Supported|
|Plastic Case:||Metal Box||Application:||For Industrial Grade Application|

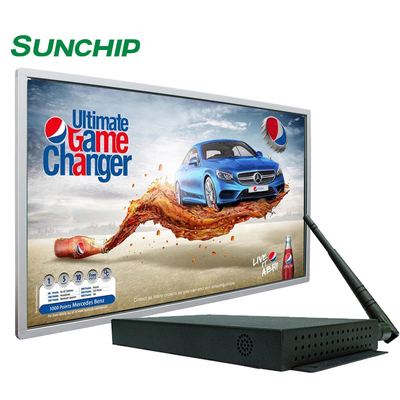

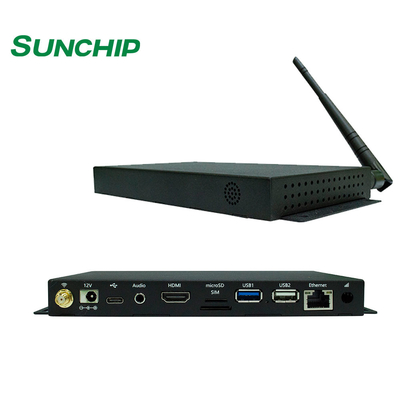

Metal Box digital signage Player box,
4G optional digital signage Player box,
Digital Signage smart multimedia player android
Advertising media digital signage Player box HD Android 6.0 7.1 9.0 2G+16G smart Multimedia player BOX WIFI metal box
With 3288 processor, quad-core A17, the frequency up to 2.2G, mali-t740 quad-core super GPU, 27mn low-power process With minimalist, interstellar, and abundance, micro-look and many other mainstream release system
can simultaneously decode multi-channel video.
Provide common display interface, such as HDMI2.0, LVDS, support for Ethernet, wifi, Bluetooth, 3G / 4G communication; support extended TF card and multiple u disk.
Standard packaging, built-in play box and many accessories, such as 12V / 3A charger, remote control, manual, warranty card, but also optional 3G and 4G Dongle.

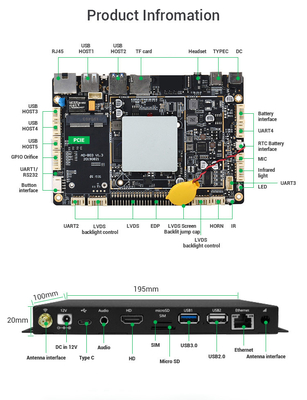

|CPU||Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764|
|Main frequency||1.8 GHz|
|Deposit||LPDDR3 2G/4G Optional|
|Built-in storage capacity||EMMC 8GB/16G/32G/64G etc. optional|
|LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display|
|EDP interface Maximum resolution 4K|
|Screen voltage||Support 3.3V/5V/12V optional|
|Touch screen||Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen.|
|With RJ45 interface, support 10/100M Ethernet.|
|Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0|
|With 4G module, support 4G network|
|Image rotation||Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional)|
|Real Time Clock||External real-time clock power supply battery|
|Support MIPI camera|
|Support HDMI output|
|5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)|
|3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.)|
|3 IO detection ports|
|D class large built-in speaker, 5W*2 8R|
|Audio||MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format|
|Video||Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback|
|Image||Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function|
|Power Adapter||Input:AC100-240V.50-60HZ, Output: DC12V 3A|
|operating system||Android 5.1 and above|
|Basic software functions||Web browsing, web chat, email, e-book, resource manager|
|Sound effect mode||Clock, alarm clock, calculator, recording|
|recording||Support MP3, WMA format recording 3gpp, amr and other formats, according to the recording APK is different, the format is different, now the system comes with the amr format|
|Weather + clock|
|Word processing||EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT|
|Input||Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)|
|System Management||APK installer|
|Original ecological Android system, open root permission, can carry out product customization development|
|Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended|
|Support OTA remote upgrade|

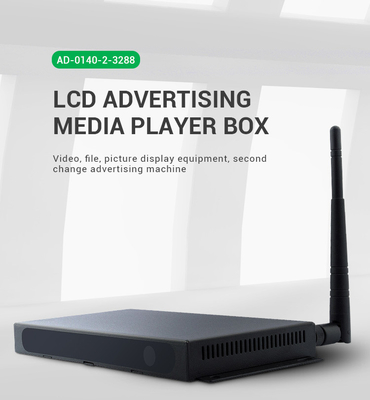

Industrial player for advertising 24/7
Advertising media box 2GB+16GB WIFI/BT/LAN/4G Android OS
Android Digital Signage Advertising Media Player Box android 7.1-10.0
digital signage advertising 4k player Box
RK3288W Solution, Model AD-B02P BOX. --- the highest version is android 9.0 OS.
We mainly manufacture
1, Android board for industrial digital signage,
(RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)
2, Android digital signage media player box, (RK3328, RK3288, RK3399)
3, Stretched lcd display signage,
4, Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)
5, Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)
6, Embedded touch desk, (Such as, 32-inch, ...)
7, Face recognition temperature detection and attendance equipment, (8-inch)
8, CMS system. (Publish contents/programs by remotely.)
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
