10.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage

10.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage
10.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage
10.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage 10.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage

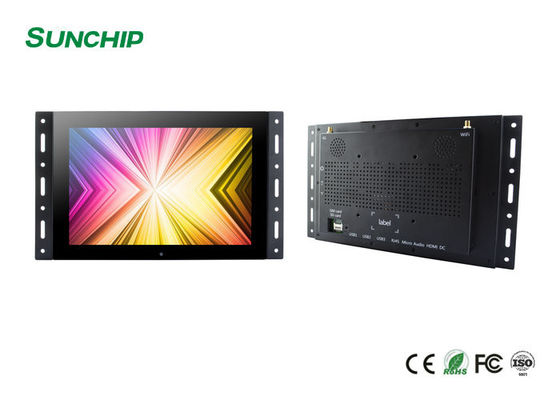

Large Image :  10.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage

Product Details:
Place of Origin: China
Brand Name: ADW, SUNCHIP, OEM/ODM
Certification: CE&Rohs&FCC
Model Number: AD-P1050-3399(B03)
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: Samples: 3-7 days; 15-25days after receipt of your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 PCS/Month

10.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage

Description
Screen Size: 10.1 Inch Resolution: 1280*800
Brightness: 300cd/㎡ Material: Metal
CTP: Touch Screen Optional Viewing Angle: 178/178
Touch Panel: Yes/ None, Optional Camera: None/2MP/5MP Front Camera, Optional
Interface: HD , USBX2, RJ45, Audio, Micro SD, SIM
High Light:

Android 7.1 open frame lcd monitor

,

300cd/㎡ Wifi LCD Advertising Screen

,

Ultra Thin Open Frame Digital Signage

10.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage

Android 7.1 RK3399 Metal Open Frame Lcd Monitor Wall Mounted

TFT LCD Touch Screen Metal Open Frame lcd Monitor wall mounted advertising display from Sunchip



Model No: AD-P1030-RK3399 (AD-B03 ANDROID BOARD)





Why choose SUNCHIP?

Sunchip is a professional solution company that dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.

-. So far, there are more than 10 years of PCBA design and production experience

-. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM

-. The whole team has about 160 people

-. One-stop service: PCB layout design, prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.

-. Passed ISO9001 factory certification

-. There are more than 3,500 square meters of office and workshop area, which is still expanding







Open Frame LCD display is designed for commercial and industrial applications , high brightness for sunlight readable application. Features wide operating temperature, high brightness, touch screen capable, and customized mechanical design; fulfill the demand for extreme environments. It offers the best visibility, performance and cost effective value. The high level of brightness together with fast response time and LED backlight technology, the monitor brings remarkable display quality. And guaranteeing product life cycle longevity, stability, and reliability.
Perfectly suitable for kiosks, ATM, POS, marline, military, medical, transportation, Avionics, industrial automation, gaming, digital entertainment display and outdoor application.


Features Highlights
1. 10.1" LCD panel with resolution 1280 x 800
2.  LED-backlit panel technology
3. Easy to Mount Open Frame,Rugged construction against external impact, metal chassis
4. VESA Mounting Hole Pattern
5. OSD buttons can prevent unnecessary setting changes
6. Complete custom design/solution

Application
Mainly Used in Closed-Circuit Surveillance Systems
Car Video, PC Operating Systems
Vehicle Navigation Systems Supporting Display
Can Also be Applied for Industrial Automation
Medical Machine Equipments
Electric Power
Petrification
Monitor
Navigation
POS, ATM and Instrumentation Display Systems.







ALL OF APPLICATION SCENARIOS WHICH CAN BE EMBEDDED.







Details:



SystemB16:P51 CPU       RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4
RAM       4GB/8GB(optional)
Internal memory     16GB/32GB/64GB(optional)
Operation system     Android 7.1 (Linux optional)
Touch screen     10 point capacitive touch(optional)
Display Panel       10.1"
Resolution     800*1280
Luminance     700cd/㎡
Aspect Ratio     16:10
Network WiFi       802.11b/g/n
Mobile network     Support full Netcom 4G (optional)
Buletooth       Bluetooth 4.1
Ethernet       10M/100M/1000M Ethernet
Interface USB interface Support USB2.0 host*1
Micro USB Support USB3.0 host*1
Type-c interface     Type-c*1
DC DC power 12V input
TF card Maximum support 64GB
  Support _4K 2.0 out
Screen interface     EDP screen interface_2K output / LVDS screen interface 1080P output(optional)
speaker 8Ω*5W * 2(optional)
UART UART2*1(optional)
IR Remote Control Support infrared remote control
RJ45 Ethernet port
Headset 3.5mm stereo headphone output
Key Key       Power V+ V-
Media play Video format     MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160
Audio format     MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc.
Text processing     EPUB, WORD, EXCEL, POWERPOINT, PDF,
E-book       PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Photo       JPG,BMP,PNG

system management
APK install APK installer
Root permission Original ecological Android system, open root permissions, customizable development
Remote control Real-time remote monitoring, system crash self recovery, 7*24 hours unattended
OTA upgrade Support OTA remote upgrades
  Camera       Pre 500W (default none , optional)
Language     Multi-language
Others Dual screen different display Support dual-screen different display function (optional)
VESA interface     Support 75*75mmVESA interface
Gravity Sensor Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation
Accessories Adapter       Adapter,12V/2A



10.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage 010.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage 1



10.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage 2





Sunchip was established in 2012, has more than 3200 square meters of factory and office.

Has large R&D ability, and we got so many CE, FCC and ROHS certificates on a lot of products, and already passed ISO international quality system certification I S O 9 0 0 1/ MFi.

We have many branded customers from overseas, such as Amazon, TTK, Beck, Apple, SONY, Rockchip, ......



Main products include Android Embedded Board, Android Media Player BOX, Stretched LCD Display, Open Frame LCD Display and other types of Digital Signage.





Welcome to contact us!



10.1/15.6 Inch LCD Advertising Screen Wifi 4G Ultra Thin Open Frame Digital Signage 3



We mainly manufacture

  • Android board for industrial digital signage, (RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128, RK3566 and RK3568, ...)
  • Android digital signage media player box, (RK3328, RK3288, RK3399)
  • Stretched lcd display signage,
  • Open frame lcd display signage, (Such as, 10.1’’, 15.6’’, 21.5’’, …)
  • Other types wall/desktop/standing lcd digital signage, (from 7’’ to 84’’, ...)
  • Embedded touch desk, (Such as, 32-inch, ...)
  • Face recognition temperature detection and attendance equipment, (8-inch)
  • Outdoor lcd digital signage, (Such as, 43’’, 49’’, 55’’, 65’’, ...)
  • CMS system. (Publish contents/programs by remotely.)
