Product Details:
|
| Product Name: | RK3399 Digital Signage Media Player Box | CPU: | RK3399 |
|---|---|---|---|
| RAM: | LPDDR4 4G | ROM: | EMMC 8GB/16G/32G/64G Optional (Default 16GB) |
| Fucntion: | Bluetooth, WIFI, Media Player, Remote Control Via Internet | Interface: | HD , USBX2, RJ45, Audio, Micro SD, SIM |
| GPU: | ARM Mali-T860MP4 GPU | Screen Voltage: | Support 3.3V/5V/12V Optional |
| Display Interface: | EDP Screen Interface, Support Resolution 1920x1080 | ||
| High Light: | Android 10 HD Media Player Box,RK3399 Media Player Box,LPDDR4 4G Media Player Box |
||

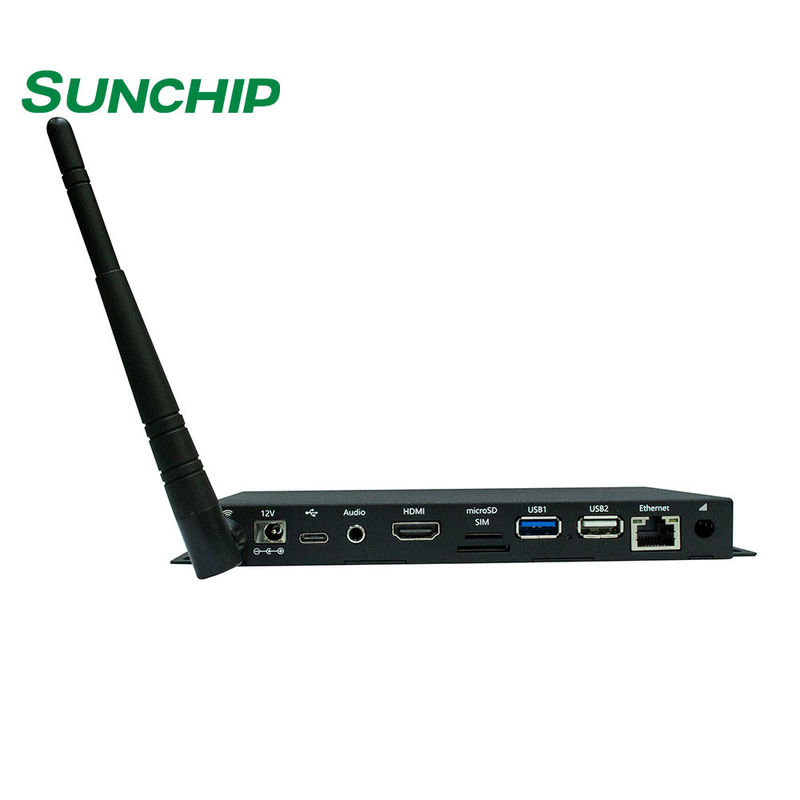

RK3399 Android 10 HD Media Player Box Commercial Advertising Player
RK3399 Commercial Advertising Player Android 10 Digital Signage Player Box
Six-core RK3399 Android decoder drives all in one board
Why need digital signage display?
In order to create new shopping experiences and promote new dynamic sales activities, shop owner/ enterprises have opted for digital signage technology in the store.
To better reach customers with new promotions, sales, and educational content, these visual supports have been installed, replacing static price tags. This update has opened the door to a whole new way of delivering product information directly to customers.
With this solution, shop owner / enterprise can directly influence customers' buying habits from its corporate location using any PC or Mac. By strategically deploying eShelfs in high-traffic aisles, the company can tell its brand story while creating experiences. unique and memorable shopping carts.
From displaying engaging digital media to reproducing educational content on new products, shop owner / enterprise can remotely create, edit, and deliver content to displays using sunchip's design studio.
Shop owner / enterprise can create immersive, on-demand content designs, eye-catching commercial messages, exclusive sales and visually appealing promotions. To maximize promotions and optimize planograms, built-in scheduling tools for content updates that reflect urgent materials sales expiration schedules.
With the digital signage display showing, shop owner and enterprise no need to change the advertising paper post as old and out of fashion .
Overview
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
| Hardware Spec | ||||||
| System | CPU&GPU | RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4 | ||||
| RAM | LPDDR4 4GB/8GB(optional) | |||||
| Memory | 16GB/32GB/64GB(optional) | |||||
| Operating system | Android 7.1.2 | |||||
| Network | WiFi | 802.11a/b/g/n/ ac (2.4G/5G optional) | ||||
| Mobile network | 4G LTE FDD/LTE TDD/WCDMA/GSM (optional) | |||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100/1000M Ethernet | |||||
| Language | Multi-Language support | |||||
| Interface | ||||||
| Interface | USB interface*2 | support USB2.0 host*1+support USB3.0 host*1 | ||||
| Type-C interface | Type-C*1 | |||||
| DC | DC power 12V input | |||||
| TF card | TF Card (micro SD card), up to 64GB | |||||
| HD | support HD _4K 2.0 out | |||||
| Display interface | EDP interface_2K output /LVDS interface_1080P output(optional) | |||||
| Speaker interface | 8Ω 5W*2(optional) | |||||
| UART interface | UART2 interface*1(optional) | |||||
| IR remote control | support IR Remote Control | |||||
| USB port extension | support USB extension host*1(optional) | |||||
| RJ45 | 10/100/1000M Ethernet port | |||||
| Headset/AUDIO Out | 3.5mm stereo headphone output*1 | |||||
| Media Parameter | ||||||
| Media Playback | Video format | support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.1 player | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Adapter | Power adapter 12V/3A | ||||
| User's Guide | Standard | |||||
| Warranty Card | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 195*100*20 | |||||
| colour box size(L*W*H) | ||||||
| Carton size(PCS/CTN)(L*W*H) | ||||||
| Others Parameters | ||||||
| Double display | Support dual display different contents play(optional) | |||||
| Gravity induction | Support 0°90°180°270°manual/automatic rotation | |||||
