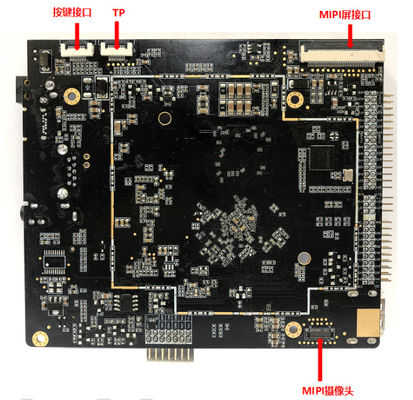

OEM Custom Android 11 Motherboard RK3566 RK3568 LCD Controller Android Board

OEM Custom Android 11 Motherboard RK3566 RK3568 LCD Controller Android Board
OEM Custom Android 11 Motherboard RK3566 RK3568 LCD Controller Android Board
OEM Custom Android 11 Motherboard RK3566 RK3568 LCD Controller Android Board OEM Custom Android 11 Motherboard RK3566 RK3568 LCD Controller Android Board OEM Custom Android 11 Motherboard RK3566 RK3568 LCD Controller Android Board

Large Image :  OEM Custom Android 11 Motherboard RK3566 RK3568 LCD Controller Android Board

Product Details:
Place of Origin: CN
Brand Name: Sunchip
Certification: CE/Rohs
Model Number: AD-C05-RK3566
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotionable
Packaging Details: Carton box
Delivery Time: 1-5 Working days
Payment Terms: T/T, Western Union, Paypal, Credit Card
Supply Ability: 50000PCS/WEEK

OEM Custom Android 11 Motherboard RK3566 RK3568 LCD Controller Android Board

Description
Product Name: RK3566 Android Main Board CPU: Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52
RAM: LPDDR3 1G/2G Optional ROM: EMMC 8GB/16G/32G/64G Optional
Display Support: LVDS / EDP /MIPI Touch Screen Support: Provide I2C Interface (can Support Multi-point Resistive Touch, Multi-point Capacitive Touch). Support USB Multi-point Infrared Touch, Multi-point Acoustic Wave Touch, Multi-point Optical Touch.
Network: Ethernet/WIFI/BT USB: USB X5 , Including USB 3.0
Internet: Ethernet, WIFI Other Ports: 3 Groups Of Serial Ports
Main Frequency: Up To 1.8GHz Operating System: Android 11
High Light:

Android 11 Motherboard RK3566

,

RK3566 LCD Controller Android Board

,

embedded computer board RK3568

OEM Custom Android 11 Motherboard RK3566 RK3568 LCD Controller Android Board





The intelligent industrial all-in-one board  Rockchip RK3566 is quad-core chip solution and the Android 11 system supporting. It is a Powerful computing power, which support multiple types of display ports , including LVDS/EDP/MIPI, rich peripheral ports, including 2 USB ports, 3 groups of serial ports , enhanced power management circuit. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.

  • Characteristic:



  • Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
  • Support EDP interface display screen.
  • Support MIPI interface display screen.
  • Support HD 2.0 high-definition output.
  • Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • Multiple network interfaces: Ethernet, wireless Wifi, BT.
  • Multi-channel USB interface, serial port.
  • Strong anti-electromagnetic interference and electromagnetic compatibility.

Basic hardware specifications





CPU Rockchip RK3566 Quad-core 64-bit Cortex-A55 GPU Mali-G52
Main frequency Up to 1.8GHz
RAM LPDDR3 1G/2G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G Optional

Display interface





LVDS screen interface (single channel, 6-digit dual-channel, 8-digit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
  EDP screen interface
  MIPI screen interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100 Ethernet.
  Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI interface camera, up to 500W pixels
  2 USB HOST (secondary board), 1 USB 3.0 (support usb camera @500W usb printer, U disk, mouse, keyboard, standard USB peripherals)
  3 groups of serial ports. Support external serial port device module (3G module, NFC module, printer, card reader, etc.)
  SD card, maximum support 32GB
  Class D power amplifier: 3W*2 8 ohms, support microphone
  HD 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP formats
Video Support 4K 60fps H.265/H.264/VP9 video decoding; support 1080P 100fps H.265/H.264 video encoding; support 8M ISP
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A
