Product Details:
|
Features: | Dual Band Wifi | CPU: | RK3399 |
---|---|---|---|
Capacitive Touch: | Support | Network Interfaces: | Ethernet, Wireless Wifi, Bluetooth |
RAM: | 1GB, 2GB Optional | ROM: | 8GB, 16GB, 32GB, 64GB Optional |
Warranty: | 1 Year | Model Number: | AD-B03-RK3399 |
Certificate: | CE, FCC, ROHS | Products Status: | New |
Package: | Yes | Processor: | Rockchip RK3399 |
Ethernet: | 1 X 10/100/1000MBps | APPs: | Google, Youtube, Google Play Store, Etc |
Product Name: | Digital Signage Box | ||
High Light: | WCDMA GSM Digital Signage Player Box,UART2 Digital Signage Player Box,RK3399 Commercial Media Player Box |
Full HD 1080P Wifi Mini Android Network Advertising Digital Signage Commercial Media Player Box
Overview:
The Android media play box is a play terminal of network media, specially used for advertising and multimedia information play. Adopt network transmission and remote control to distinguish different audiences in the broadcasting of advertisements, and carry out targeted broadcasting of advertisements and the release of multimedia information. It supports multiple audio, video and picture formats, and can realize the combined playback of multimedia information such as video, audio, picture, and rolling subtitles. Through the broadcast management software, thousands of network advertising machines distributed on the network platform can be remotely managed and controlled uniformly. It has broad application prospects in the advertising broadcast and information release market such as building TV, banks, communities, stations, and airports.
Feature:
1. Rockchip RK3399 1.5Ghz Quard core + 2.0Ghz Dual core, up to 2.0 Ghz frequency
2. Large memory: RAM: 4GB DRR4, ROM: 32GB EMMC, TF card support 64GB
3. Multiple OS supported: Android 7.1
4. Pre install Google, Google play store, Youtube, ect.
5. Enjoy your online surfing, streaming live/movies, 3D games.
6. Multiple language output: English/Spanish/portuguese/Japanese/Russian/Korea etc
7. 802.11 a/b/g/n 2.4Ghz - 5.8Ghz Dual Band Wifi
8. Black metal shell
9. Good heatsink for heat dissipation
10. Many interface for multiple demands
Parameters:
Model No. | AD-0150-3399 | |||||||||||
System | CPU | RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4 | ||||||||||
RAM | LPDDR4 4GB/8GB(optional) | |||||||||||
Flash | 16GB/32GB/64GB(optional) | |||||||||||
Operation System | Android 7.1 (Linux OS optional) | |||||||||||
Network | WiFi | 802.11a/b/g/n/ ac (2.4G/5G optional) | ||||||||||
Cellular | 4G LTE FDD/LTE TDD/WCDMA/GSM (optional) | |||||||||||
Bluetooth | Bluetooth 4.0 | |||||||||||
Ethernet | 10M/100M/1000M Ethernet | |||||||||||
Interface | USB port | Support USB2.0 host*1 | ||||||||||
USB port | Support USB3.0 host*1 | |||||||||||
Type-c interface | type-c*1 | |||||||||||
DC | DC power supply 12V in | |||||||||||
SD Card | TF Card (micro SD card), up to 64GB | |||||||||||
HD | Support HD_4K 2.0 out | |||||||||||
Display interface | EDP interface_2K output /LVDS interface_1080P output(optional) | |||||||||||
Speaker interface | 8Ω 5W*2(optional) | |||||||||||
UART interface | UART2 interface*1(optional) | |||||||||||
IR Remote Control | Support IR Remote Control | |||||||||||
USB extension port | Support USB extension host*1(optional) | |||||||||||
RJ45 | Ethernet port | |||||||||||
AUDIO Out | 1*3.5mm Jack Stereo headphone output | |||||||||||
Media Parameter | Video format | Support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.1 player | ||||||||||
Video format | Support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.2 player | |||||||||||
Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||||||||
E-books | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||||||||
Image format | JPG,BMP,PNG | |||||||||||
system management | APK installation | APK Installer | ||||||||||
Root permission | Original Android system,open root permissions,available in customized product development | |||||||||||
Remote control | Real-time remote monitoring, system crash recovery, 7*24 hours unattended | |||||||||||
OTA upgrade | Support OTA remote upgrade | |||||||||||
Others | Dual display | Support dual display different contents play(optional) | ||||||||||
Accelerometer | Support 0 degree, 90 degree, 180 degree, 270 degree manual/automatic rotation | |||||||||||
Accessories | Adapter | Power adapter 12V/3A | ||||||||||
Manual | Standard | |||||||||||
Warranty card | Standard |

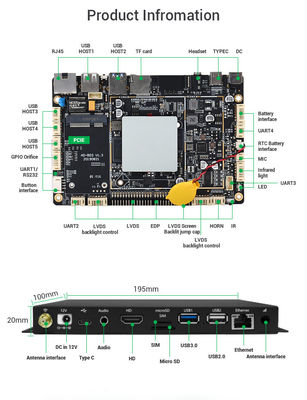

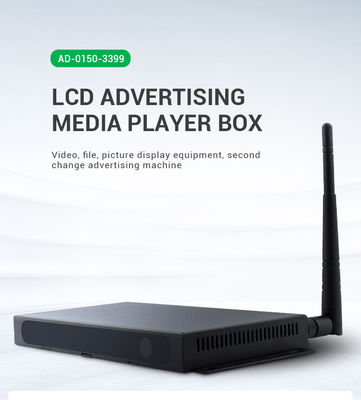

Product images:
Android media player boxe are currently widely used in large shopping malls, specialty stores, franchise stores, subways, airports, bookstores, parks, exhibition halls, stadiums, conference centers and other places.
Package:
Shenzhen Sunchip Technology Co., LTD
Established in 2011, SUNCHIP is a high-tech engineering company specialized in designing and manufacturing Digital signage, Embedded digital signage, ARM board and Andriod-based customized products, which are compliant with CE, FCC and RoHS standards.
SUNCHIP has a long histroy of OEM and ODM service to many branded customers. With the strong R&D team, intelligent robot production line and strict QC and QA members, SUNCHIP is a technology-leading ODM factory.With more than 100 experienced R&D engineers' hard working, SUNCHIP have mastered a whole set solution of high-definition video encoding&decoding developing and mass production technology.
SUNCHIP is the strategic partner of Rochchip, Intel, Amlogic, Samsung and Allwinner, so we always have a steady supply of reliable chipsets and unlimited technical support from the partners.
FAQ:
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
