RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic

RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic
RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic
RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic

Large Image :  RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic

Product Details:
Place of Origin: Guangdong, China
Brand Name: SUNCHIP
Certification: CE,FCC,ROHS
Model Number: AD-K01
Payment & Shipping Terms:
Minimum Order Quantity: 10 unit
Price: US$95~US$150
Packaging Details: Carton box
Delivery Time: 5~8 days
Payment Terms: L/C, Western Union, MoneyGram, T/T
Supply Ability: 50000 pcs per month

RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic

Description
CPU: Rockchip RK3399 Dual Core Cortex-A72+quad-core Cortex-A53 CPU Expansion Slots: 1*MINI-PCIE(for 4G) , 1*SIM Card, 1* TF Card
Operating System: Android 7.0 Ports: Wifi, USB 2.0/3.0, Bluetooth, Display Port, Ethernet, HD
Test Condition: 100% Tested RAM: 1GB, 2GB Optional
ROM: 8GB, 16GB, 32GB, 64GB Optional Memory Type: DDR3 2G/4G Optional
Screen Interface: LVDS, EDP, MIPI Certificate: CE, FCC, ROHS, ISO9001
Power Supply: DC 12V
High Light:

RK3399 Infrared Embedded System Board

,

Anti Electromagnetic Embedded System Board

,

Android 7.0 Industrial Embedded Motherboard

Network Embedded System Board RK3399 Android 7.0 Infrared Touch Interface



Industrial Android Motherboard 4k Output Lvds Embedded Computer Board For Industrial Control Host



Overview:

Intelligent industrial one board, using Rockchip RK3399 six-core chip program to support Google Android 7.0 above system. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. For intelligent remote network control: industrial, medical, large advertising machine, educational video terminals and other equipment.

Characteristic:

  • Support 7-inch to 84-inch LVDS interface display (point-to-point full HD display 1920 * 1080).
  • A variety of interactive mode interface: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
  • A variety of network interfaces: Ethernet, wireless WiFi, Bluetooth.
  • Multi-channel USB interface, serial port, IO port output.
  • Support 4K video play and HDMI 2.0 HD output.

Strong anti-electromagnetic interference and electromagnetic compatibility.



Basic hardware specifications:



CPU Rockchip RK3399 dual core Cortex-A72+quad-core Cortex-A53 CPU
GPU ARM Mali-T860MP4 GPU
RAM DDR3 2G/4G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G Optional(Label 8GB)
Display interface LVDS interface (single, 6 dual, 8 dual). Support the maximum resolution of 1920x1080, support 7 "-84" display
EDP screen interface, support for resolution 1920x1080
Onboard backlight Support 3.3V/5V/12V Optional
Touch screen

Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch).

Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch.

Internet With RJ45 interface, support for 10/100 Ethernet
With Wifi & BT module, support for Wi-Fi 802.11b / g / n / ac protocol. Support BT4.0
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support for gravity sensing
Real Time Clock Built-in real-time clock battery
Interface equipment Support MIPI interface camera, up to 500W pixels
Support USB camera
4 USB HOST, 1 USB OTG (support POE power supply)
3 groups of serial port. Supports external serial device devices (3G module, NFC module, printer, swipe card reader, etc.)
3 IO test port
SD card, maximum support 64GB
Class D amplifier: 1.5W * 2 8 ohm, support for the microphone
HDMI 2.0 output
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video Support for 2160P @ 24FPS decoding of video formats such as H.264, MPEG2, VP6, VP8, MVC, etc. Online videos from YouTube, up to 1080P, HTML5 video playback, Flash 10.1 playing.
Picture Support for JPG, BMP, PNG and other image formats Browse and support rotation / slide show / image zoom function
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A



Basic software specifications:



Operating system Google Android 7.0
Basic software features Web browsing, web chat, e-mail, e-books, resource managers
Sound mode Clock, alarm clock, calculator, recording
Voice support Multi-national voice
Recording Support MP3, WMA format recording
Tool Calendar
  Alarm Clock
  Calculator
  Note
  Weather + clock
  Recording
File processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input method Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -ChromeLite
  Email
  Gmail
System Management APK Installer
  Original Android system, open root privileges, product development can be customized
  Real-time remote monitoring, system crash self-recovery, 7 * 24 hours unattended

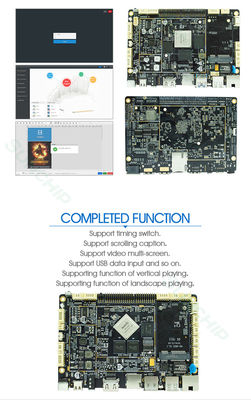

Product images:

RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic 0





RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic 1

RK3399 Infrared Embedded System Board Android 7.0 Anti Electromagnetic 2
