Product Details:
|
| Keyword: | Digital Signage Media Player Box | Processor Core: | Quad-core |
|---|---|---|---|
| Internal Storage: | 16GB EMMC | CPU: | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Support Photo: | HD JPEG/BMP/GIF/PNG/TIFF | Material: | Metal Case |
| WiFi: | 802.11n 2.4GHz | After-sales Service Provided: | Field Maintenance And Repair Service |
| Video Format: | RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 | Card Reader: | TF Cards |
| High Light: | RK3288 Wifi Hd Media Box,EDP Wifi Hd Media Box,LVDS Android Digital Signage Player Box |
||

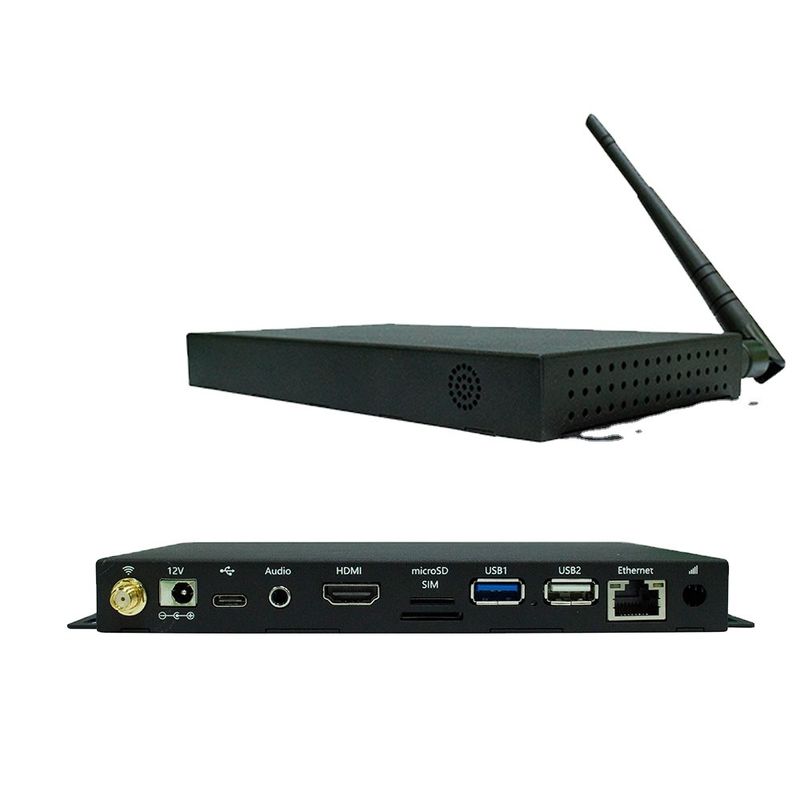

RK3288 4K Wifi Hd Media Box 1080p Android Internet Smart Digital Signage Player Box
RK3288 Full Hd 4K Wifi Media Player Android Internet Smart Digital Signage Player Box
Video Advertising Machine Commercial Media Digital Signage Player Box
With RK3288 Android integrated board, using Rockchip RK3288 quad-core chip solution, support Android6.0 system. Supports the decoding of the popular audio & video formats and images. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display. With HD interface, support 4K video playing.
Product Advantages :
* powerful CPU and GPU supports 4K UHD H264/H265 decoding;
* portrait & landscape orientation for flexible installation of TV;
* industrial grade quality for 24x7 running environment;
* USB plug & play for techphobia hassle-free contents update;
* online remote contents update with user-defined layouts;
* power timing on and off for convenient management;
| Hardware Spec | ||||||
| System | CPU&GPU | RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional) | |||||
| Memory | 8GB/16GB/32GB(optional) | |||||
| Operating system | Android 6.0(Linux optional) | |||||
| Network | WiFi | 802.11b/g/n(2.4G/5G optional) | ||||
| Mobile network | Support full Netcom 4G (optional) | |||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100/1000M Ethernet | |||||
| Language | Multi-Language support | |||||
| Interface | ||||||
| Interface | USB interface | Support USB host*2 | ||||
| Micro USB | USB_Debug interface*1 | |||||
| DC | DC power 12V input | |||||
| SD card | Maximum support 64GB | |||||
| HD | Support HD output Support 4K 60FPS frame rate | |||||
| Screen interface | EDP screen interface / LVDS screen interface(optional) | |||||
| Speaker output | 8Ω*5W * 2(optional) | |||||
| UART | UART2*1(optional) | |||||
| infrared remote control | Support infrared remote control | |||||
| USB port expantion | USB port expandert*1(optional) | |||||
| RJ45 | 10/100/1000M Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Media Parameter | ||||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160 | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Adapter | Power adapter 12V/2A | ||||
| User's Guide | Standard | |||||
| Warranty Card | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 195*100*20 | |||||
| colour box size(L*W*H) | ||||||
| Carton size(PCS/CTN)(L*W*H) | ||||||
| Others Parameters | ||||||
| Double screen display | Support Double screen display(optional) | |||||
| Gravity induction | Support 0°90°180°270°manual automatic rotation | |||||
