Product Details:
|
| Graphics Card Type: | Integrated | Private Mold: | Yes |
|---|---|---|---|
| Condition: | 100% Tested Working | Products Status: | New |
| Socket Type: | Other | Keywords: | Industrial Motherboard |
| TF Card: | Support | Operating System: | Android 7.1 |
| High Light: | IOT Embedded Computer Boards,Integrated Embedded Computer Boards,Integrated PC Computer Motherboard |
||
Interactive IOT Embedded android Boards Voice Recognition LED Light
RK3399 is a newly launched low-power, high-performance application processor chip. The chip is based on the Big.Little architecture, which is a dual-core Cortex-A72 and quad-core Cortex-A53 combined architecture with independent NEON coprocessors. Used in computers, personal Internet mobile devices, VR, advertising machines and other intelligent terminal equipment.
This chip is also equipped with multiple high-performance hardware processing engines, which can support video decoding in multiple formats, as well as high-quality JPEG codecs and image pre- and post-processors.
1. Integrate dual USB3.0 Type-C interfaces and support Type-C DisplayPort audio and video output.
2. The dual ISP pixel processing capacity is up to 800MPix/s, supports dual camera data input at the same time, and supports high-level processing such as 3D and depth information extraction.
3. MIPI/eDP interface, supporting 2560×1600 screen display and dual-screen display.
4. HDMI2.0 interface, H.265/H.264/VP94K@60fps HD video decoding and display.
5. Built-in PCI-e interface, support PCI-e-based high-speed Wi-Fi and storage expansion.
6. Support 8-channel digital microphone array input
7. Comprehensive system support: compatible with Android, Linux and other operating systems
Basic hardware specifications:
| CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Deposit | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (Default 16GB) |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, support resolution 1920x1080 | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface | |
| With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0 | |
| Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI camera x2 |
| USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0 | |
| 3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 64GB | |
| Class D amplifier: 5W*2 8 ohms, support microphone | |
| HD 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |

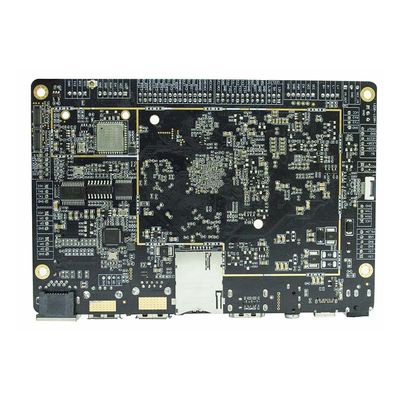

Product images
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
