Product Details:
|
| Chipset: | RK3399 Hexa Core 64bits | Application: | Server/Workstation |
|---|---|---|---|
| Graphics Card Type: | Integrated | Maximum Ram Capacity: | 8 GB |
| Ethernet: | 1000M | With CPU: | Yes |
| Working Humidity: | 5% ~ 95% | Operating Temperature: | -10°C ~ 60°C |
| High Light: | LVDS EDP Embedded System Board,GPIO UART Embedded System Board,TL PC Computer Motherboard |
||
LVDS EDP Embedded System Board RK3399 GPIO UART TTL android Motherboard
For smart devices such as VR, RK3399 has advantages in hardware, including a screen with 20ms delay, 90Hz refresh rate, 4K UHD decoding and 2K low endurance, high-precision positioning and tracking system, excellent HDR camera shooting technology, excellent 3D Processing power and high-definition H.265 / H.264 video resolution capabilities. For tablets, game boxes and other products, RK3399 is based on powerful CPU, higher interface standards, faster transmission speed, supports 4K@60fps10bit video playback and output capabilities of H.265/VP9, and provides faster terminals Calculation speed and better visual effects. Encoding, better picture decoding, game engine and 3D image processing capabilities. In addition to tablet computers, VR, TV-BOX, notebook computers, automobiles and communication fields, RK3399 is based on sufficient scalability and can be applied to various terminals in the industrial and consumer fields, including smart home appliances, advertising players/multi-functions PC, financial POS machine, vehicle control terminal, thin client, VOIP video conference, security/surveillance/police affairs and Internet of Things.
| Interface device | Support MIPI camera x2 |
| USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0 | |
| 3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 64GB | |
| Class D amplifier: 5W*2 8 ohms, support microphone | |
| HDMI 2.0 output |

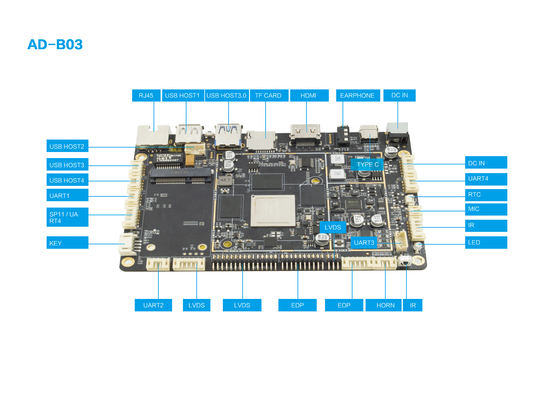

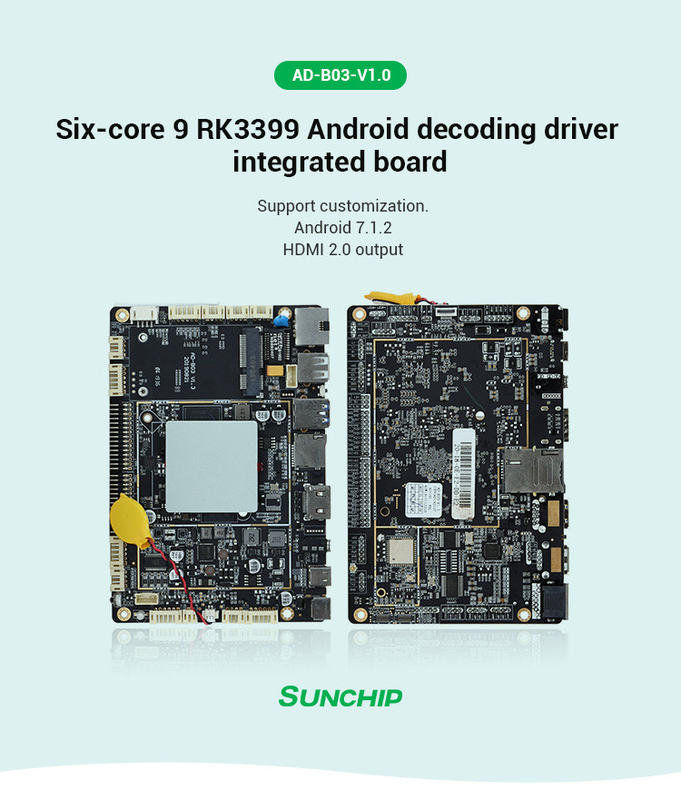

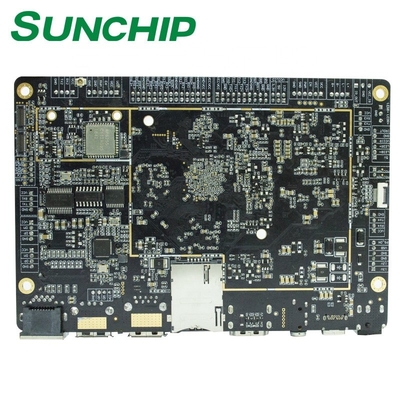

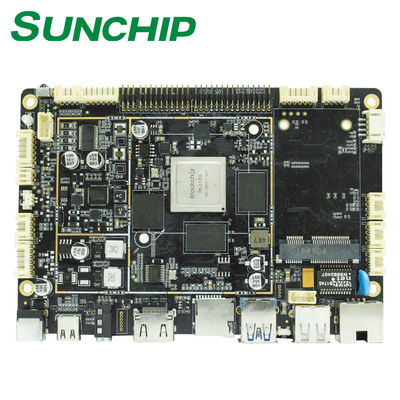

Product images
