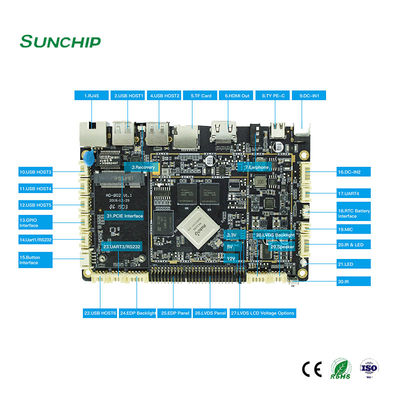

RK3288 Quad Core 1.8GHz Industrial Mainboard Mini PC Intelligent

RK3288 Quad Core 1.8GHz Industrial Mainboard Mini PC Intelligent
RK3288 Quad Core 1.8GHz Industrial Mainboard Mini PC Intelligent
RK3288 Quad Core 1.8GHz Industrial Mainboard Mini PC Intelligent RK3288 Quad Core 1.8GHz Industrial Mainboard Mini PC Intelligent RK3288 Quad Core 1.8GHz Industrial Mainboard Mini PC Intelligent RK3288 Quad Core 1.8GHz Industrial Mainboard Mini PC Intelligent RK3288 Quad Core 1.8GHz Industrial Mainboard Mini PC Intelligent

Large Image :  RK3288 Quad Core 1.8GHz Industrial Mainboard Mini PC Intelligent

Product Details:
Place of Origin: Guangdong, China
Brand Name: SUNCHIP
Certification: CE,FCC,ROHS
Model Number: AD-B02
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US$66~US$90
Packaging Details: Carton box
Delivery Time: 5~8 days
Payment Terms: L/C, Western Union, MoneyGram, T/T
Supply Ability: 50000 pcs per month

RK3288 Quad Core 1.8GHz Industrial Mainboard Mini PC Intelligent

Description
CPU: Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 Operating System: Android 5.1 And Above
Operating Temperature: -10°C ~ 60°C Built-in Storage Capacity: EMMC 8GB/16G/32G/64G Etc. Optional
Chipset Manufacturer: Rockchip Application: Advertising Machine, Digital Signage
Frequency: 1.8 GHz Form Factor: ARM
Power Supply: DC 12V Graphics Card Type: Integrated
Working Humidity: 5% ~ 95% Warranty: 1 Year
High Light:

1.8GHz Industrial Mainboard

,

RK3288 Industrial Mainboard

,

RK3288 industrial motherboards

RK3288 Quad Core 1.8GHz Industrial Mainboard Mini PC Intelligent



Custom OEM 4G Android Tablet Development Motherboard for digital signage





Main Features:
1. Size only 12*12CM, Saving space, easy installation, easy maintenance,widely application.
2. With low power consumption, small heat, no fan cooling, quiet and dustproof.
3. Onboard Double Channel 8/24Bit LVDS, Support 1920x1080.
4. Onboard Gigabit LAN and WIFI&Bluetooth Module;
5.. With HD MI + LVDS Ports,Support Double Display.
6. Built-in amplifier pin, can connect 3W/5 W, 8 ohm loudspeaker.
7. Onboard TF Card Slot, Support Max 32 GB Extension Storage.
8. Widely Use in Advertising Display,Public transportation like BUS/Metro,Elevator media,



All In One PC,Smart TV,School,Bank,Hospital,Industry etc.





Basic hardware specifications:

Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional)
Real Time Clock External real-time clock power supply battery











Interface device







Support MIPI camera
Support HDMI output
5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.)
3 IO detection ports
TF card
D class large built-in speaker, 5W*2 8R
Support microphone
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Image Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A
