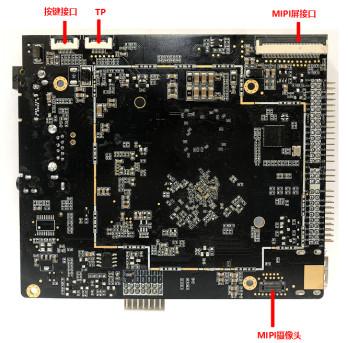

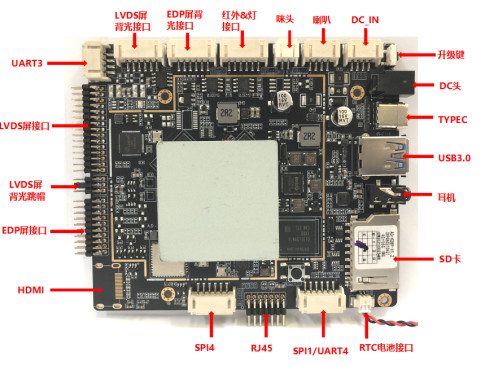

LPDDR4 4G PCBA Embedded System Board Support MIPI EDP LVDS

LPDDR4 4G PCBA Embedded System Board Support MIPI EDP LVDS
LPDDR4 4G PCBA Embedded System Board Support MIPI EDP LVDS LPDDR4 4G PCBA Embedded System Board Support MIPI EDP LVDS

Large Image :  LPDDR4 4G PCBA Embedded System Board Support MIPI EDP LVDS

Product Details:
Place of Origin: CN
Brand Name: Sunchip
Certification: CE/Rohs
Model Number: AD-K28P
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotionable
Packaging Details: Carton box
Delivery Time: 5-8Working days
Payment Terms: T/T, Western Union, Paypal, Credit Card
Supply Ability: 5000PCS/WEEK

LPDDR4 4G PCBA Embedded System Board Support MIPI EDP LVDS

Description
Product Name: RK3399 Six Core Android Embedded Motherboard CPU: Rockchip RK3399 Dual Core Cortex-A72+ Quad Core
RAM: LPDDR4 4G ROM: 16GB/32GB Optional
Display Support: LVDS & EDP / MIPI & EDP Touch Screen Support: Support USB IR Multi Touch, Sonic Multi Touch, Optical Multi Touch
Network: Ethernet/WIFI/BT Audio: MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format
Video: Supports H.264, MPEG2, VP6, VP8, MVC And Other 2160P@24FPS Video Formats. Online Videos Such As YouTube, Up To 4K, HTML5 Video Playback, Flash 10.1 Playback Image: Support JPG, BMP, PNG, GIF And Other Image Formats To Browse And Support Rotation / Image Enlargement
High Light:

PCBA Embedded System Board

,

LPDDR4 Embedded System Board

,

LPDDR4 embedded system board

LPDDR4 4G PCBA Embedded System Board Support MIPI EDP LVDS



RK3399 Android Motherboard



Digital Signage Display Development PCBA Board Android Motherboard

  • Characteristic:

    - It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) .

    - Supports EDP display

    - Supports MIPI display

    - Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.

    - A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.

    - Multi-channel USB interface, IO , UART serial output .

    - Support 4K video play with HD 2.0 HD output.

    - Strong anti-electromagnetic interference and electromagnetic compatibility.

CPU Rockchip RK3399 dual core Cortex-A72+ quad core
GPU ARM Mali-T860MP4 GPU
RAM Deposit LPDDR4 4G
Built-in storage capacity EMMC 8GB/16G/32G/64G optional(default 16GB)
Display Interface LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display
  EDP screen interface, support resolution 4K
  MIPI screen interface, support resolution 1920x1080
Screen voltage Supports 3.3V/5V/12Voptional
Touch Screen Support I2C Interface( multi-points capacitive touch) Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch
Network With RJ45 interface, support 10/100M Ethernet


With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol.

Support BT 4.0

Image rotation Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function (Optional, default none)
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI camera
  USB HOST x 6 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals)
  2x UART, 1x SPI Or 1x UART, 2x SPI, support external serial device (NFC module, printer, card reader, etc.)
  TF card, maximum support 64GB
  Class D amplifier: 3W*2 8Ω, support microphone
  HD 2.0 Output
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video Supports H.264, MPEG2, VP6, VP8, MVC and other 2160P@24FPS video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback
Image Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement



Operation system Android 9.0
Basic software function Web browsing, email, e-book, resource manager
Sound mode Clock, alarm clock, calculator, recording
Voice support Multinational voice
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + Clock
Recording
File processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -ChromeLite
Email
Gmail
System Management APK Installer
Original Android system, open root permissions, product customization development
Real-time remote monitoring, 7*24 hours unattended
Support OTA remote upgrade
System setting
Google Maps
Global time
