Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board

Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board
Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board
Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board

Large Image :  Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board

Product Details:
Place of Origin: Guangdong, China
Brand Name: SUNCHIP
Certification: CE,FCC,ROHS
Model Number: AD-C33P-V1.1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: US$50~US$120
Packaging Details: Carton box
Delivery Time: 5~8 days
Payment Terms: L/C, Western Union, MoneyGram, T/T
Supply Ability: 50000 pcs per month

Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board

Description
CPU: RK3568 Quad-core 64-bit Cortex-A55, GPU Mali-G52 Main Frequency: Up To 2.0GHz
Operating System: Android 11.0 Capacitive Touch: Support
Infrared Touch: Support Network Interfaces: Ethernet, Wireless Wifi, Bluetooth
Screen Voltage: Support 3.3V/5V/12V Optional RAM: 1GB, 2GB Optional
ROM: 8GB, 16GB, 32GB, 64GB Optional Warranty: 1 Year
Model Number: AD-C33P-V1.1 Application: Digital Signage, Advertising Display, Kiosk, POS Etc.
Resolution: 1920*1080 Screen Interface: LVDS, EDP, MIPI
Certificate: CE, FCC, ROHS Graphics Card Type: Integrated
Memory Type: DDR3 Products Status: New
Socket Type: SocketA Package: Yes
High Light:

RK3568 Embedded System Board

,

32GB Embedded System Board

,

32GB embedded computer boards

Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board



Overview:



The large board of the intelligent industrial all-in-one machine adopts the Rockchip RK3568 quad-core chip solution. Support Android 11 system. Enhanced power management circuit. Support commonly used external devices. Rich interfaces and stable performance. Suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machines, educational video terminals and other equipment.



Characteristic:

  • Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
  • Support EDP interface display screen.
  • Support MIPI interface display screen.
  • Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.uMultiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
  • Multi-channel USB interface, serial port.
  • Strong anti-electromagnetic interference and electromagnetic compatibility.







Basic hardware specifications:



CPU Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
Main frequency Up to 2.0 GHz
RAM DDR4 2G/4G optional
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (label 16GB)

Display interface





LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
  MIPI interface
  EDP interface
Screen voltage Support 3.3V/5V/12V optional
Touch screen

Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).

Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.

The internet



With RJ45 interface, support 10/100/1000M Ethernet.
  Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function
Real Time Clock External real-time clock power supply battery





Interface device







Support MIPI interface camera, up to 500W pixels
  4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
  3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)
  TF card, maximum support 32GB
  Class D power amplifier: 3W*2 8 ohms, support microphone
  HD 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.
Picture Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input: AC100-240V.50-60HZ, output: DC12V 3A







Basic software specifications:

Operating system Android 11 system
Basic software functions Web browsing, web chat, email, e-book, resource manager
Sound effect mode Clock, alarm clock, calculator, recording
Language support Multi-lingual
Recording Support MP3, WMA format recording





Tool







Calendar
  Alarm Clock
  Calculator
  Note
  Weather + clock
  Recording
Word processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)



Network





Browser -ChromeLite
  GOOGLE Market
  Email
  Gmail
  Google talk
System Management Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
  Original ecological Android system, open root permission, can carry out product customization development
  Customizable local or remote server management system
  Support a variety of third-party Android remote advertising systems
  Support multiple serial devices, USB devices
  Support dual-screen different display

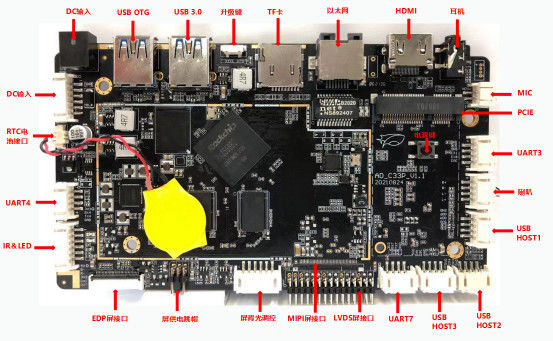

Product images





Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board 0

Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board 1





 Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board 2



Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board 3

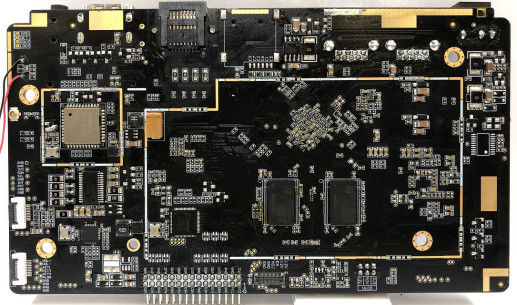

PCBA Structure



Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board 4













Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board 5

Quad Core RK3568 Embedded System Board Android Decoding Driver Integrated Board 6
