LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display

LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display
LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display
LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display

Large Image :  LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display

Product Details:
Place of Origin: CN
Brand Name: Sunchip
Certification: CE/Rohs
Model Number: AD-B03-RK3399
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 5-8Working days
Payment Terms: T/T, Western Union
Supply Ability: 200PCS/WEEK

LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display

Description
Product Name: RK3399 Embedded Motherboard CPU: RK3399
RAM: 4GB ROM: 16GB/32GB/64GB Optional
Fucntion: Bluetooth, WIFI, Media Player, 4G,remote Control Via Internet Interface: HD , USBX2, RJ45, Audio, Micro SD, SIM
Support: LVDS,EDP Panel And HD Application: Digital Signage, Face Recognition, Floor Standing Kiosk, Smar Mirror, Evaluator Etc.
High Light:

RK3399 Embedded System Board

,

16GB Embedded System Board

,

16GB embedded computer boards

 LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display



LVDS EDP LCD Panel RK3399 PCBA Embedded Syestem Board For LCD Digital Signage Display



Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.

Characteristics

 It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
 Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical
touch.
 A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
 Multi-channel USB interface, serial output.
 Support 4K video play with HD  MI 2.0 HD output.
 Strong anti-electromagnetic interference and electromagnetic compatibility



Basic hardware specifications

CPU Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU
GPU ARM Mali-T860MP4 GPU
Deposit LPDDR4 4G
Built-in storage capacity EMMC 8GB/16G/32G/64G optional (Default 16GB)
Display interface LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display
  EDP screen interface, support resolution 1920x1080
Screen voltage Support 3.3V/5V/12V optional
Network With RJ45 interface, support 10/100/1000 Ethernet
  Support 4G PCIE interface
  With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 4.2
Image rotation Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real Time Clock External real-time clock power supply battery
Interface device Support MIPI camera x2
  USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0
  3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.)
  TF card, maximum support 64GB
  Class D amplifier: 5W*2 8 ohms, support microphone
  HD  MI 2.0 output
Audio MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback
Picture Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V/3A



Basic software specifications

Operating system Android 7.0
Basic software function Web browsing, email, e-book, resource manager
Sound mode Clock, alarm clock, calculator, recording
Voice support Multinational voice
Recording Support MP3, WMA format recording
Tool Calendar
  Alarm Clock
  Calculator
  Note
  Weather + clock
  Recording
File processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -Chrome Lite
  Email
  Gmail
System Management APK installer
  Original Android system, open root permissions, product customization development
  Real-time remote monitoring, 7*24 hours unattended
  Support OTA remote upgrade
  System setting
  Google Maps
  Global time

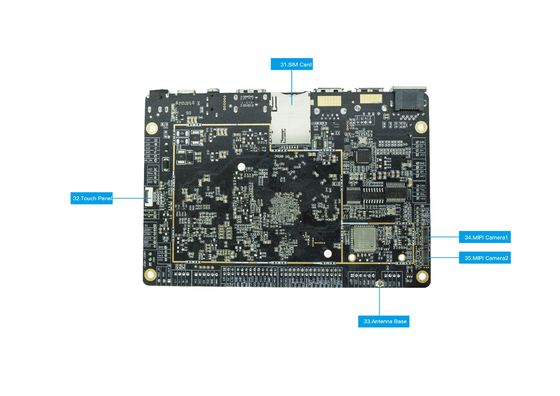

LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display 0LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display 1LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display 2LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display 3LVDS EDP LCD Panel RK3399 Embedded System Board For LCD Digital Signage Display 4
