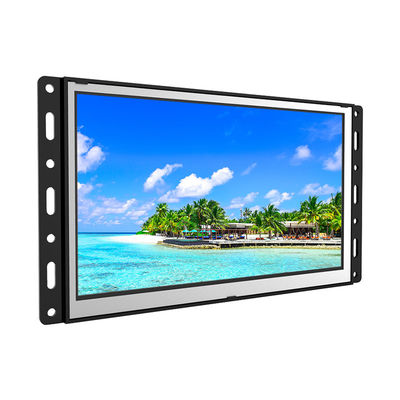

Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player

Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player
Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player
Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player

Large Image :  Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player

Product Details:
Place of Origin: CN
Brand Name: Sunchip
Certification: CE/Rohs
Model Number: AD-P1040
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1pc/carton
Delivery Time: 5-8Working days
Payment Terms: T/T, Western Union
Supply Ability: 200PCS/WEEK

Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player

Description
Product Name: RK3288 Android Terminal Lcd Digital Signage CPU: Rockchip RK3288 / RK3399
ROM: 16GB/32GB/64GB Optional RAM: 2GB/4GB Optional
Touch Panel: 10pt Capacitive Touch Wifi: Support 2.4G Or 2.4G+5G WIFI Band
4G LTE: Supported Optional MicroSD: Support
USB: Support 2 USB Ports G-Sensor: Yes
OS: Android 6.0-9.0 Case: Galvanized Metal Shell
High Light:

RK3399 Industrial Open Frame Monitor

,

RK3288 Industrial Open Frame Monitor

,

RK3288 open frame lcd monitor

Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player



Multifunction Media Player Android Open Frame LCD Digital Signage



Sunchip  Android Monitor Advertising Open Frame  embedded LCD Digital Signage Display

Embedded display ​





HOW DOES DIGITAL SIGNAGE WORK?

Digital signage is the most effective and fastest way to reach people across networks of digital displays with personalized messages.

Quick and ingeniously simple! The content management and control of sunchip are carried out directly from the workstation. Use it to design, plan and distribute your digital content.

Absolute user-friendliness guarantees that your individual information can be easily exchanged at any time.

In addition, the professional sunchip software can be tailored precisely to your needs.

The range of applications is limitless and ranges from the automatically updated electronic billboard in all sizes to interactive info terminals, digital door signs (Link eSign) and to the management of large nationwide display networks.

Characteristic:

  • Application Of LCD Digital Signage

  • Business Product Promotional display:supermarket, large-scale shopping malls, exclusive agency,



chain shops, large-scale sales, star-rated hotels,restaurants, travel agencies, pharmacy

Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls,stadiums, museums,convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers Entertainments



Specification:

System CPU RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764
RAM 4GB
Internal memory 32GB
Operation system Android 8.1 (optional)
    Touch screen 10 point capacitive touch(optional)
Display Panel 10.1"
Resolution 1200*1920
Contrast ratio 1000:1
Luminance 300cd/㎡
Aspect Ratio 16:10
Network WiFi 802.11b/g/n
Buletooth Bluetooth 4.0
Ethernet 10M/100M/1000M Ethernet
Interface USB interface Support USB 2.0*3
Micro USB USB OTG*1
DC DC power 12V input
Card slot SD card (Maximum support for 32G)
HD   Support HD output
RJ45 Ethernet port
speaker 2W * 8Ω * 2
Earphone 3.5mm earphone
Key Key Power V+ V-
Media play Video format MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160
Audio format MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc.
Text processing EPUB, WORD, EXCEL, POWERPOINT, PDF,
E-book PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Photo JPG,BMP,PNG

system management
APK installation APK installation
Root permissions Original ecological Android system, open root permissions, customizable development
Remote control Real-time remote monitoring, system crash self recovery, 7*24 hours unattended
OTA upgrade Support OTA remote upgrades
  Camera Pre 500W (default none , optional)
Language Multi-language


Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player 0Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player 1Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player 2Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player 3Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player 4Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player 5Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player 6Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player 7Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player 8Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player 9Rockchip RK3288 RK3399 Industrial Open Frame Monitor Multifunction Media Player 10
1) Q: Is SUNCHIP a factory or simply a trading company? FAQ

A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.



2) Q: What payment methods are available to me?

A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.



3) Q: How long is the warranty time?

A: 1 Year.



4) Q: What are the shipment terms and delivery times of your company?

A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.



5) Q: Do you give any discounts ?

A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.



6) Q: I would like to add my company logo on your products, is this possible?

A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.

Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
