Product Details:
|
| Platform: | Rockchip RK3288 | Material: | Metal Case |
|---|---|---|---|
| WIFI: | Support 2.4G Or 2.4G+5G WIFI Band | Ethernet: | Support 1000M |
| RAM ROM: | 2GB 16GB | OS: | Android 6.0-9.0 |
| 4G LTE: | Supported Optional | MicroSD: | Supported |
| Display: | HD, LVDS EDP | OTG: | Type-C Port |
| Earphone: | Supported | USB: | Support 2 USB Ports |
| G-Sensor: | Yes | Manually Rotate: | Supported |
| High Light: | Rk3288 HD Media Player Box,ROHS FCC HD Media Player Box,Rk3288 advertising media player box |
||

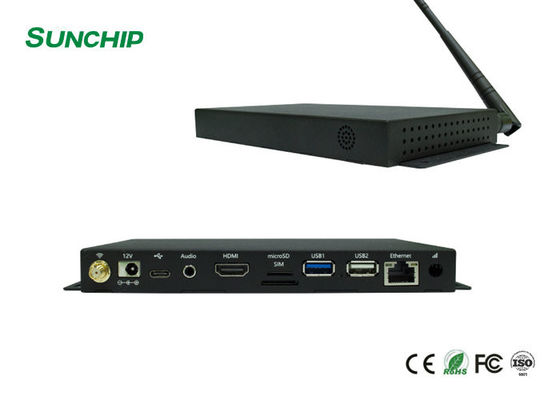

All In One Rk3288 HD Media Player Box Support Wifi Lan Lcd Panels
DIGITAL SIGNAGE BOX PLAYER MODEL: AD-B02 RK3288 Support WIFI LAN LCD Panels HD advertising play
Platform:
RK3288 Android integrated board, using Rockchip RK3288 quad-core chip solution.
Supports the decoding of the popular audio & video formats and images.
Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display.
With HD interface, support 4K video playing.
Model: RK3288 AD-B02 BOX
Bullet Feature Points:
Ideal Customer Solutions
Management Platform
Our platform has the ability to support your entire display management needs with as many screens as needed ranging from a very small number, to several thousand. There is a logical operation which makes it easy to learn the procedures, detailed prompts for each step, and it is the most reliable and competitive system. Your content can be videos or pictures, and you can add voice-over or background music to add more excitement and information to what you want to introduce and display. You can manage when specific content is controlled and displayed, group displays together based on Geographic Location and all displays will play the content at the specific time you select. This system is developed completely by Sungale itself, and Sungale has ownership of all intellectual property. Counterfeiting is not allowed.
Specifications:
| Hardware Spec | ||||||
| System | CPU&GPU | RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional) | |||||
| Memory | 8GB/16GB/32GB(optional) | |||||
| Operating system | Android 6.0(Linux optional) | |||||
| Network | WiFi | 802.11b/g/n(2.4G/5G optional) | ||||
| Mobile network | Support full Netcom 4G (optional) | |||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100/1000M Ethernet | |||||
| Language | Multi-Language support | |||||
| Interface | ||||||
| Interface | USB interface | Support USB host*2 | ||||
| Micro USB | USB_Debug interface*1 | |||||
| DC | DC power 12V input | |||||
| SD card | Maximum support 64GB | |||||
| HD | Support HD output Support 4K 60FPS frame rate | |||||
| Screen interface | EDP screen interface / LVDS screen interface(optional) | |||||
| Speaker output | 8Ω*5W * 2(optional) | |||||
| UART | UART2*1(optional) | |||||
| infrared remote control | Support infrared remote control | |||||
| USB port expantion | USB port expandert*1(optional) | |||||
| RJ45 | 10/100/1000M Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Media Parameter | ||||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160 | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Adapter | Power adapter 12V/2A | ||||
| User's Guide | Standard | |||||
| Warranty Card | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 195*100*20 | |||||
| colour box size(L*W*H) | ||||||
| Carton size(PCS/CTN)(L*W*H) | ||||||
| Others Parameters | ||||||
| Double screen display | Support Double screen display(optional) | |||||
| Gravity induction | Support 0°90°180°270°manual automatic rotation | |||||
Android Board inside of the Player Box:
Android Player Box:
Application Scenarios:
Packaging Information:
Packing Box:335*185*65mm
Carton Box:350*350*203mm 5PCS/Carton
HD advertising media player box RK3288 advertising player box digital signage box with remote control
Right now, they're in stock and can be shipped out immediately after ordered, trial order and samples are very welcomed.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
