Home ProductsFace Recognition Infrared Thermometer

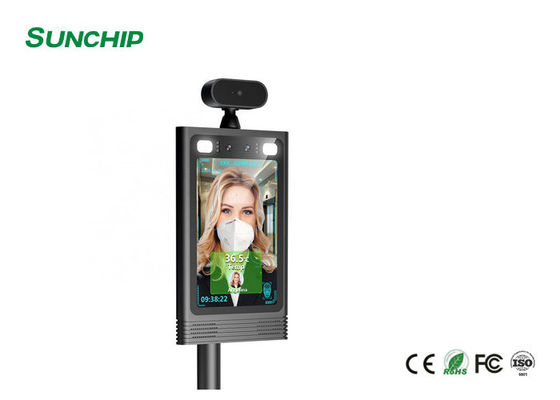

8" 50CM Android 8.1 Floor Standing Infrared Thermometer

Customer Reviews
Awesome news! I know your team has worked hard, thanks for finish the project so quickly.

—— Brian Walker

I like your sample very much. Looking forward to growing our partnership.

—— Jenny Westbrook

I'm Online Chat Now

8" 50CM Android 8.1 Floor Standing Infrared Thermometer

8" 50CM Android 8.1 Floor Standing Infrared Thermometer
8" 50CM Android 8.1 Floor Standing Infrared Thermometer
8" 50CM Android 8.1 Floor Standing Infrared Thermometer 8" 50CM Android 8.1 Floor Standing Infrared Thermometer 8" 50CM Android 8.1 Floor Standing Infrared Thermometer 8" 50CM Android 8.1 Floor Standing Infrared Thermometer

Large Image :  8" 50CM Android 8.1 Floor Standing Infrared Thermometer

Product Details:
Place of Origin: CN
Brand Name: Sunchip-ADW
Certification: FCC,CE,ROHS
Model Number: AD-08A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: $350-$495
Packaging Details: Carton Box
Delivery Time: 5-30 Days
Payment Terms: T/T
Supply Ability: 10000pcs/month

8" 50CM Android 8.1 Floor Standing Infrared Thermometer

OS Version: Android 8.1 Size: 8 Inch
Relay: Available Wiegand: Available
GPIO: Available Access Control: Support Door / Gate
Accuracy: 99.5%
High Light:

Android 8.1 Floor Standing Infrared Thermometer


50CM Floor Standing Infrared Thermometer


Floor Standing Temperature Check Kiosk



8 Inch floor standing self service temperature check kiosk LCD digital signage face recognition infrared thermometer



Model: AD-08A


Application Scenarios:

Face Recognition Access Control,

Time Attendance Record,

Temperature Measurement,

Fever Detection,



Application Places:

It can be matched with corresponding brackets according to different application scenarios, such as different height stands column brackets, which can adapt to different places.

Community, Office, Hotel, Parking, Hospital, Campus, Supermarket, Stores, shopping malls, Factory, Park, business buildings, schools, scenic spots, transportation hubs, Station, Leisure centers, Construction sites and other public service places or Crowded Area to achieve safe and efficient access control of personnel




Special specifications:
1, Mask Mode: Open the Mask Mode, the device will alarm red and sound once the person doesn't wear Mask.
2, Stranger Mode: Open the Stranger Mode, the device will alarm red once the person didn't register before.
3, Customs Alarm Sound: Just provide us the alarm sound that you want;
4, Options for temperature unit: C and F;
5, Customs Alarm Activation Temperature in the device: such as 37.5℃,37.7℃ etc. whatever you want to set up.

6, Compensation Temperature: defaulted 0. Users can set it up.

7, Test Mode: If selected, the scanning UI will display the detailed data.
8, Options for save face photos: Close this option once wants to protect their privacy.
9, High temperature Email Alarm: Notify someone once the person has the Alarm Activation Temperature.
10, Administrator Password: Set up the Password for the "Setting" of Face Recognition Apk.

11, Privacy Mode: If selected, it won’t show the specific name and temperature etc. data.

12, Relay/Wiegand: be used for open door & Gate Machine,
13, Printer protocol: be used to connect with USB printer.

14, Support API document for 2nd development,

15, Data stored in the local Disk or cloud server,

16, Distance range: 30-50CM

17, Logo printed is for free that for orders more than 50 PCS,

18, Supports multi-language;

19, OS: Android 8.1
20, Certificates: CE, ROHS, FCC,




Products Description
8" 50CM Android 8.1 Floor Standing Infrared Thermometer 0



About his product, we totally have these models:

1, Tablet Model: VESA is available on the back case;

2, Wall mounted Model: Tablet+bracket for wall;

3, Desktop Model;

4, Floor standing Model;

5, Vertical Model: Tablet+Vertical support bracket;(especially for Gate Machine usage scenarios)

Product Details:
System CPU       RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764
RAM       2GB
Internal memory     16GB
Operation system     Android 8.1
Display Panel       8"
Resolution     800*1280
Contrast ratio     1000:1
Brightness     350cd/㎡
Aspect Ratio     16:10
Network WiFi       802.11b/g/n 2.4G
Buletooth       Bluetooth 4.1
Interface OTG       mini_USB_OTG *1
USB host       Support USB host*1
Relay control port     Support
Wiegand out control port   Support
GPIO control port     Support   (2 channels)
RJ-45       10M/100MEthernet
DC       DC power 12V input



Software Optimum detection distance   30-50 cm
Detection accuracy     ±0.3
Dual light multi lattice infrared thermal imaging Accurate recognition temperature warning with data stored in cloud server
Other functions Wireless mouse Support
Human body detection module Infrared detection
Status indicator Tri-color LED function indicator
High precision infrared thermal imaging detection High precision infrared thermal imaging detection
Speaker 2*2W
Camera 200W 1080P Front camera

Multilingual OSD in English/German/Italian/Japanese/Korean.....



Reliability Operating ambient temperature 0℃~+35℃
Optimum working environment temperature 20-27℃
Optimum temperature range for measurement 30-45℃
Working humidity 20%~95% Non condensing
Storage temperature -20℃~+60℃
Overall power consumption Below 18W
Protection level IP54
ESD Positive and negative 4K contact discharge/8Kv air discharge
Surge Support
Harmonic Support
Other Adapter 12V/2A
Installation and fixation The standard stand is 1.1 meters high (Optional)
VESA 50*50mm



8" 50CM Android 8.1 Floor Standing Infrared Thermometer 1


Product Packing&Delivery:

1.Packing: carton box or wood case

2.Payment methods: accept T/T,Western Union,Paypal and Cash.

3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.

4.Warranty: 12 months warranty. Paid maintenance over 12 months.

5.Remark: ROHS, CE & FCC certificates in e-file format are available.

6.MOQ: 1pc, sample order are welcome for your evaluation.

Why Choose us:
1.We are a professional indoor & outdoor digital signage complete solution & mass production technoloy provider.
2.We have integrate more than 100 mature supply chain to provide ONE-STOP service for hardware & software development.
3.We having our own ERP system to control our factory’s procedures help us make sure of our delivery times and product quality. Over 15 years of experience gives us the edge!
4. We currently provide OEM/ODM services for many customers worldwide. R & D design and a large number of orders are our advantages.
5. We understand that our new partners need to order samples, in fact we encourage them to do so. Once you see the quality of our products, you will understand our professional strength.
6.Our years experiences made us faster and better, our teams are truly specialized, from our R & D department to our factory workers, everyone is key to our success.



Welcome to contact me!



SUNCHIP mainly manufactures:

1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

5, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

7, Embedded touch desk: such as 32inch.

8, Face recognition temperature detection terminal machine: such as 8inch.

[You can also tell us your detailed requirements, so that we advise you a matched solution]
