Product Details:
|
| CPU: | RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764 | Panel: | 8 Inch |
|---|---|---|---|
| Resolution: | 800*1280 | Brightness: | 350cd/㎡ |
| Operation System: | Android 5.1/6.0 | Human Body Detection Module: | Infrared Detection |
| Recognition Distance: | Camera Further Than 2M，Infrared Camera More Than 3M | Buletooth: | Bluetooth 4.1 |
| Relay Control Port: | Support | Wiegand Out Control Port: | Support |
| GPIO Control Port: | Support | ||
| High Light: | Touchless Face Detection Thermometer,Android 5.1 Face Detection Thermometer,Touchless infrared thermometer with face recognition |
||

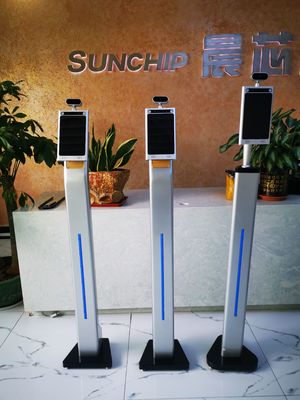

Touchless Face Detection Thermometer With Human Body Detection Module
Under this year background, Marvel developed the Face Recognition Kiosk with thermal imaging for body temperature detecting, which will been use in most of the economy activity place, like supermarket, mall, CBD building, office, metro station, airport, shopping mall, restaurant and so on.
8inch Face Recognition Thermometer With Human Body Detection Module
| System | CPU | RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764 | ||||||||||||
| RAM | 2GB | |||||||||||||
| Internal memory | 16GB | |||||||||||||
| Operation system | Android 5.1/6.0 | |||||||||||||
| Display | Panel | 8" | ||||||||||||
| Resolution | 800*1280 | |||||||||||||
| Contrast ratio | 1000:1 | |||||||||||||
| Brightness | 350cd/㎡ | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Network | WiFi | 802.11b/g/n 2.4G | ||||||||||||
| Buletooth | Bluetooth 4.1 | |||||||||||||
| Interface | USB | OTG data | ||||||||||||
| RJ-45 | 10M/100MEthernet | |||||||||||||
| Power adapter | DC adapter | |||||||||||||
| Software | Living human body detection | 100% identification of real person,Avoid photos or videos | ||||||||||||
| Recognition distance | Camera further than 2M,Infrared camera more than 3M | |||||||||||||
| Dual light multi lattice infrared thermal imaging | accurate recognition temperature warning with data stored in cloud server | |||||||||||||
| Other functions | Wireless mouse | Support | ||||||||||||
| Human body detection module | Infrared detection | |||||||||||||
| White fill light | White board uniform light supplement | |||||||||||||
| Status indicator | Two color LED function indicator | |||||||||||||
| MIC | front built-in microphone | |||||||||||||
| Dual light infrared thermal image detection | Heimann Sensor (Dual-light infrared thermal imaging detection) | |||||||||||||
| Horn | 2*2W | |||||||||||||
| Wide dynamic of binocular living | 200W 1080P Front camera | |||||||||||||
| OSD | Multilingual OSD in English/German/Italian/Japanese/Korean | |||||||||||||
| Reliability | Working temperature | -10℃～+60℃ | ||||||||||||
| Working humidity | 20%～95% Non condensing | |||||||||||||
| Storage temperature | -0℃～+80℃ | |||||||||||||
| Overall power consumption | below 18W | |||||||||||||
| Protection level | IP54 | |||||||||||||
| ESD | Positive and negative 4K contact discharge/8Kv air discharge | |||||||||||||
| Surge | Support | |||||||||||||
| Harmonic | Support | |||||||||||||
| Enclosure | Adapter | 12V/2A | ||||||||||||
| Bracket | Standard | |||||||||||||
