Product Details:
|
SIZE: | 8 Inch Screen Display | Alarm Mode: | Support |
---|---|---|---|
Temperature Range: | Could Be Customized | Infared Camera: | Temperature Measurement |
Gate Machine Application: | Support Relay And Wiegand | Color: | Silver |
High Light: | IPS Face Recognition Infrared Terminal,800*1280 Infrared Face Recognition Reader |

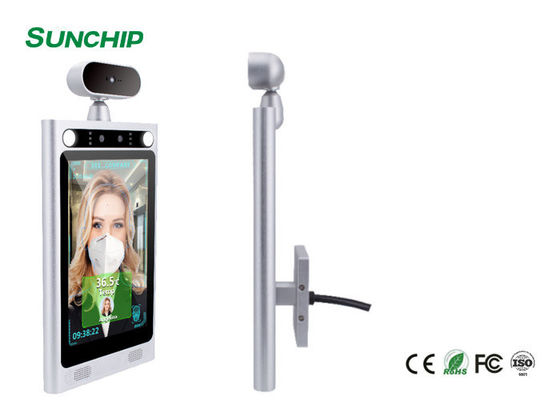

Model: AD-08R
The access station comprises an eight-inch display, safety body temperature measurement check, optional facial recognition (that also works when employees are wearing face masks).
Human body temperature detection is supported through the IR temperature sensor from 40CM-75CM and has an automatic alarm for abnormal body temperature.
Passes high-precision infrared temperature detection and perfectly integrates intelligence such as faces, ID cards, etc. Functions such as access control, time attendance, etc., realize non-contact rapid detection, registration, and recording of human body temperature. It is widely used in office areas, hotels, aisles, office buildings, schools, shopping malls, communities, public services, and management projects place.
Key Features:
Non-contact automatic body temperature detection, brushing the face and performing high-precision infrared human temperature collection at the same time, fast and efficient;
Temperature measurement range 30-45℃ with accuracy ±0.3℃.
Automatic identification of personnel without masks and real-time warning;
Supports contact-free temperature measurement and real-time early warning of high temperature fever;
Automatically register and record information, avoid manual operations, improve efficiency and reduce missing information;
Supports binocular live detection;
Unique face recognition algorithm to accurately recognize faces, face recognition time < 500ms
Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic ≥80db;
Rich interface protocols, supporting SDK and HTTP protocols under multiple platforms such as Windows / Linux;
8-inch ips HD display;
Supports electronic voice broadcast (normal human body temperature or super high alarm, mask detection reminder, face recognition verification results)
System | CPU | RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764 | ||||||||||||
RAM | 2GB | |||||||||||||
Internal memory | 16GB | |||||||||||||
Operation system | Android 5.1 | |||||||||||||
Display | Panel | 8" | ||||||||||||
Resolution | 800*1280 | |||||||||||||
Contrast ratio | 1000:1 | |||||||||||||
Brightness | 350cd/㎡ | |||||||||||||
Aspect Ratio | 16:10 | |||||||||||||
Network | WiFi | 802.11b/g/n 2.4G | ||||||||||||
Buletooth | Bluetooth 4.1 | |||||||||||||
Interface | USB | OTG data | ||||||||||||
RJ-45 | 10M/100MEthernet | |||||||||||||
Power adapter | DC adapter | |||||||||||||
Software | living human body detection | 100% identification of real person,Avoid photos or videos | ||||||||||||
dual light multi lattice infrared thermal imaging | accurate recognition temperature warning with data stored in cloud server | |||||||||||||
Other functions | Wireless mouse | Support | ||||||||||||
Human body detection module | Infrared detection | |||||||||||||
White fill light | White board uniform light supplement | |||||||||||||
Status indicator | Two color LED function indicator | |||||||||||||
MIC | front built-in microphone | |||||||||||||
dual light infrared thermal image detection | Heimann Sensor (Dual-light infrared thermal imaging detection) | |||||||||||||
horn | 2*2W | |||||||||||||
wide dynamic of binocular living | 200W 1080P Front camera | |||||||||||||
OSD | Multilingual OSD in English/German/Italian/Japanese/Korean | |||||||||||||
Reliability | working temperature | -10℃~+60℃ | ||||||||||||
working humidity | 20%~95% Non condensing | |||||||||||||
Storage temperature | -0℃~+80℃ | |||||||||||||
Overall power consumption | below 18W | |||||||||||||
Protection level | IP54 | |||||||||||||
ESD | Positive and negative 4K contact discharge/8Kv air discharge | |||||||||||||
surge | Support | |||||||||||||
harmonic | Support | |||||||||||||
enclosure | Adapter | 12V/2A | ||||||||||||
Bracket | Standard |
Customization is supported! Welcome to contact me for more information.
Look forward to our cooperation~
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
