Product Details:
|
| Color: | Silver | Material: | Aluminum |
|---|---|---|---|
| Function 1: | Face Recognition Access Control | Function 2: | Infrared Temperature Measurment |
| Function 3: | Time Attendance Record | Function 4: | Fever Alarm |
| Function 5: | Cloud Data Center | ||
| High Light: | Time Attendance Infrared Thermometer,Aluminum Thermal Fever Scanner |
||
Face recognition temperature measurement terminal for offices, school, Gate, Hobby, supermall etc. public places
Model: AD-08R
Now are now able to offer a face recognition temperature meansurement solution. With todays current measures our facial recognition terminal will help with disease prevention and control by performing contactless temperature detection with infared thermography making touch free access control easier than ever.
Our solution offers the following benefits:
The facial recognition temperature measurement terminal is an ideal solution in a wide range of facilities:
| System | CPU | RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764 | ||||||||||||
| RAM | 2GB | |||||||||||||
| Internal memory | 16GB | |||||||||||||
| Operation system | Android 5.1 | |||||||||||||
| Display | Panel | 8" | ||||||||||||
| Resolution | 800*1280 | |||||||||||||
| Contrast ratio | 1000:1 | |||||||||||||
| Brightness | 350cd/㎡ | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Network | WiFi | 802.11b/g/n 2.4G | ||||||||||||
| Buletooth | Bluetooth 4.1 | |||||||||||||
| Interface | USB | OTG data | ||||||||||||
| RJ-45 | 10M/100MEthernet | |||||||||||||
| Power adapter | DC adapter | |||||||||||||
| Software | living human body detection | 100% identification of real person,Avoid photos or videos | ||||||||||||
| dual light multi lattice infrared thermal imaging | accurate recognition temperature warning with data stored in cloud server | |||||||||||||
| Other functions | Wireless mouse | Support | ||||||||||||
| Human body detection module | Infrared detection | |||||||||||||
| White fill light | White board uniform light supplement | |||||||||||||
| Status indicator | Two color LED function indicator | |||||||||||||
| MIC | front built-in microphone | |||||||||||||
| dual light infrared thermal image detection | Heimann Sensor (Dual-light infrared thermal imaging detection) | |||||||||||||
| horn | 2*2W | |||||||||||||
| wide dynamic of binocular living | 200W 1080P Front camera | |||||||||||||
| OSD | Multilingual OSD in English/German/Italian/Japanese/Korean | |||||||||||||
| Reliability | working temperature | -10℃～+60℃ | ||||||||||||
| working humidity | 20%～95% Non condensing | |||||||||||||
| Storage temperature | -0℃～+80℃ | |||||||||||||
| Overall power consumption | below 18W | |||||||||||||
| Protection level | IP54 | |||||||||||||
| ESD | Positive and negative 4K contact discharge/8Kv air discharge | |||||||||||||
| surge | Support | |||||||||||||
| harmonic |
Support |
|||||||||||||

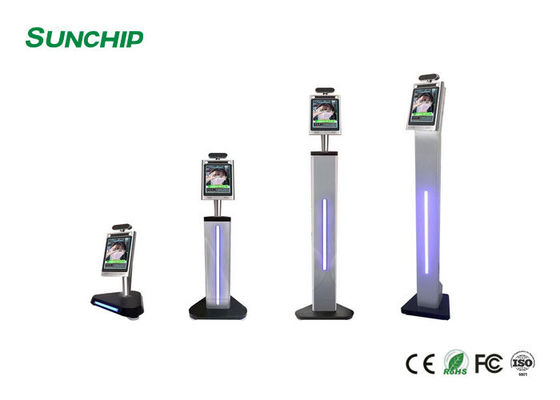

Totally we have five models.
1, Wall Mounted Model,
2, Desktop Model,
3, Children’s Model with the stand 0.6M,
4, Adult’s Model with the stand 1.1M,
5, Adult’s Model with the stand 1.2M.
Customization is supported! Welcome to contact me for more information.
Look forward to our cooperation~
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
