Time attendance face recognition non contact infrared thermometer with WIFI Ethernet
Details:

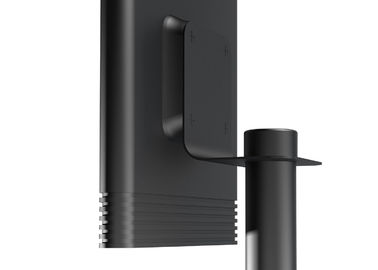

1. Fix the wall mount bracket to the wall installation position specified by the device with screws;
2. Fix the upper slot of the module device on the mainframe hook of the wall-mounting bracket, and fix the holeunder the device with a combination screw below.

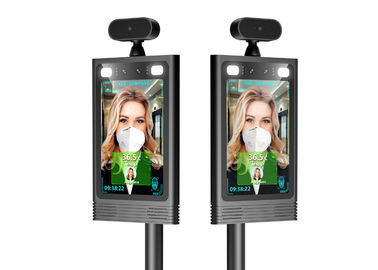

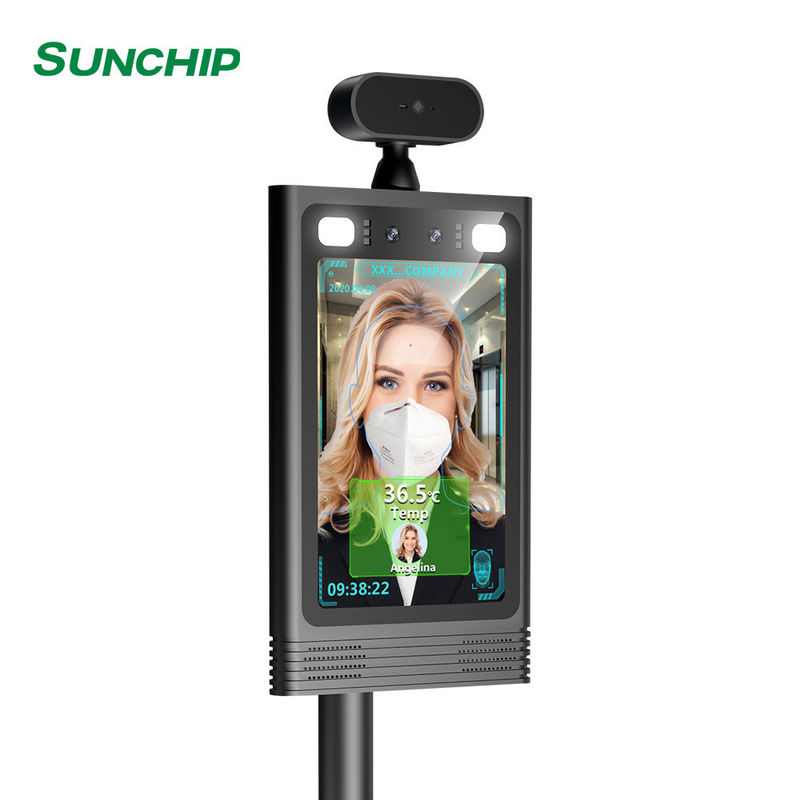

The CX-R08 Contactless Facial Recognition Terminal with Infrared Thermometer is a high-performance access control reader developed to better prevent the spread of illness and viruses by detecting fever and therefore potential cases. This truly uniquebiometric reader can detect a fever and supports facial recognition even with a mask on.
* No-Contact Fever Reader and Face Reader Terminal
* Facial recognition works even when wearing a mask
* Takes a user’s temperature with an infrared thermometer
* Links to doors and turnstiles for contactless Access Control
>pass management vertical module of temperature measurement & face recognition uses Rockchip RK3288;
>high-performance hardware platform, equipped with industrial-class binocular camera, live face recognition technology and infrared
>thermal imaging module to support face-with-mask identify. It also supports expansion of various peripherals such as ID card
readers, fingerprint readers, etc., which can be applied to gate passages and attendance system to achieve safe and efficient
access control for personnel.
More Features:
*8-inch IPS full view LCD display.
*Industrial appearance, waterproof and dustproof design,Stable and reliable.
*CPU:RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764
*RAM :2GB , Internal memory :16GB
*Operation system : Android 5.1/6.0
*Resolution : 800*1280
*WiFi : 802.11b/g/n 2.4G
*Buletooth : Bluetooth 4.1
*USB : OTG data *RJ-45 : 10M/100MEthernet
*Power adapter : DC adapter 12V/2A
*Living human body detection : 100% identification of real person, Avoid photos or videos
*Recognition distance:Camera further than 2M,Infrared camera more than 3M
*Dual light multi lattice infrared thermal imaging:accurate recognition temperature warning with data stored in cloud server
*Human body detection module : Infrared detection
*White fill light : White board uniform light supplement
*Status indicator : Two color LED function indicator
*MIC : front built-in microphone
*dual light infrared thermal image detection : Heimann Sensor (Dual-light infrared thermal imaging detection)
*wide dynamic of binocular living : 200W 1080P Front camera
*OSD : Multilingual OSD in English/German/Italian/Japanese/Korean
OEM/ODM are available
Looking forward to your inquiry to SUNCHIP.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
