Product Details:
|
| Front Camera: | 2MP With Wide Dynamic; Optional None | Infrared: | Infrared Detector Module |
|---|---|---|---|
| Material: | Aluminium Frame With Stainless Steel | Product Type: | Face Recognition Infrared Thermometer LCD Display |
| LCD Panel: | 8'' Panel | Resolution: | 800*1280 |
| Brightness: | 350 Cd/m2 | ||
| High Light: | facial recognition thermometer,temperature measurement system |
||

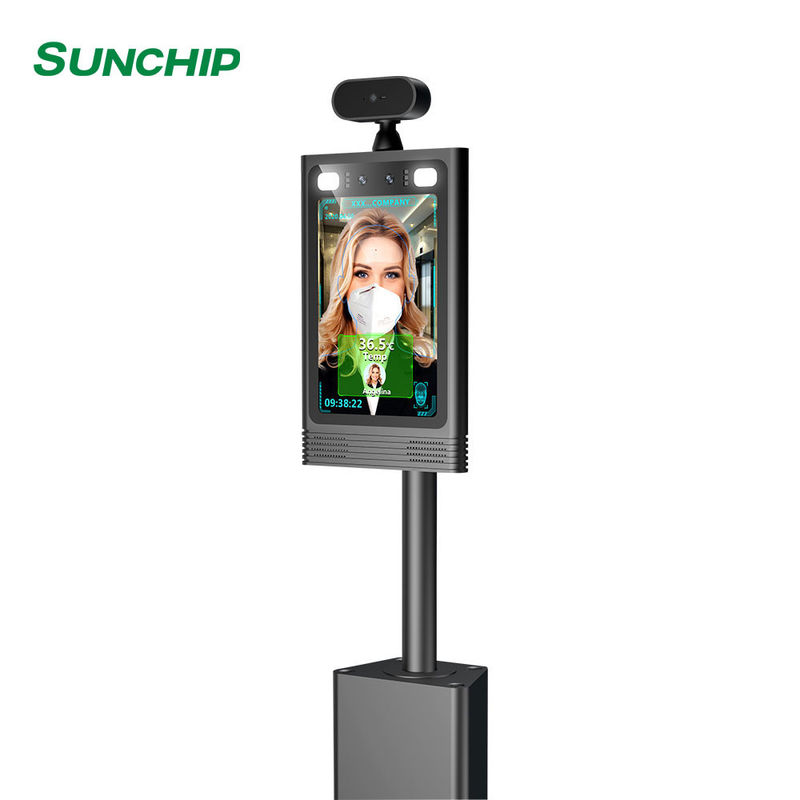

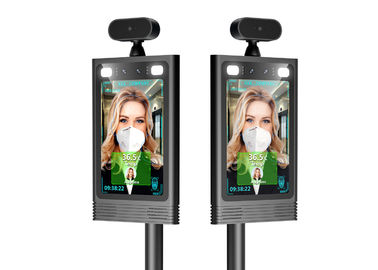

SUNCHIP thermometer solution for disease control, Face Recognition Temperature Scanner Non Contact Infrared Thermometer
Product NO.: AD-08R-3288
Watchdata Intelligent Temperature Measurement Solution
This is a smart measurement solution with combination of face recognition technology and infrared thermal imaging technology to achieve screening of patients with high body temperature. It can be applied for non contact screeing at public places like transportation, office building, cinemas, campus and communities
Key Features :
Feature:
Face Recognition:
Complete personnel identification quickly and temperature measuring even though wears mask.reduce the epidemic's transmission route
Non-contact measurement:
Non-contact measurement ensures the safety of front-line personnel and greatly reduces the risk of infection
Abnormal Temperature Waring:
Temperature range from -10°C to 150°C.When measures abnormal temperature, it will warn.Warning temperature value can be customized
Accurate Measurement:
Infrared temperature measurement,highly efficient temperature measurement.Temperature Accuracy up to ±0.25°C
Easy install:

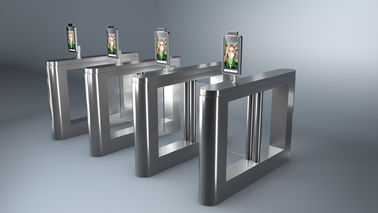

This Face recognition non-contact thermometer is easy to install and deploy,widely used in commercial centers, industrial parks, transportation hubs, public and other crowded place
Specifications:
| System | CPU | RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764 | ||||||||||||
| RAM | 2GB | |||||||||||||
| Internal memory | 16GB | |||||||||||||
| Operation system | Android 5.1/6.0 | |||||||||||||
| Display | Panel | 8" | ||||||||||||
| Resolution | 800*1280 | |||||||||||||
| Contrast ratio | 1000:1 | |||||||||||||
| Brightness | 350cd/㎡ | |||||||||||||
| Aspect Ratio | 16:10 | |||||||||||||
| Network | WiFi | 802.11b/g/n 2.4G | ||||||||||||
| Buletooth | Bluetooth 4.1 | |||||||||||||

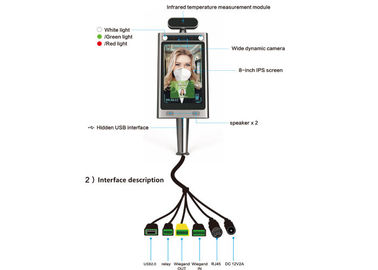

| Interface | USB | OTG data | ||||||||||||
| RJ-45 | 10M/100MEthernet | |||||||||||||
| Power adapter | DC adapter | |||||||||||||
| Software | living human body detection | 100% identification of real person,Avoid photos or videos | ||||||||||||
| Recognition distance | Camera further than 2M,Infrared camera more than 3M | |||||||||||||
| dual light multi lattice infrared thermal imaging | accurate recognition temperature warning with data stored in cloud server | |||||||||||||
| Other functions | Wireless mouse | Support | ||||||||||||
| Human body detection module | Infrared detection | |||||||||||||
| White fill light | White board uniform light supplement | |||||||||||||
| Status indicator | Two color LED function indicator | |||||||||||||
| MIC | front built-in microphone | |||||||||||||
| dual light infrared thermal image detection | Heimann Sensor (Dual-light infrared thermal imaging detection) | |||||||||||||
| horn | 2*2W | |||||||||||||
| wide dynamic of binocular living | 200W 1080P Front camera | |||||||||||||
| OSD | Multilingual OSD in English/German/Italian/Japanese/Korean | |||||||||||||
| Reliability | working temperature | -10℃～+60℃ | ||||||||||||
| working humidity | 20%～95% Non condensing | |||||||||||||
| Storage temperature | -0℃～+80℃ | |||||||||||||
| Overall power consumption | below 18W | |||||||||||||
| Protection level | IP54 | |||||||||||||
| ESD | Positive and negative 4K contact discharge/8Kv air discharge | |||||||||||||
| surge | Support | |||||||||||||
| harmonic | Support | |||||||||||||
| enclosure | Adapter | 12V/2A | ||||||||||||
| Bracket | Standard | |||||||||||||
OEM/ODM are available.
We also support to deduct the front camera for the face recognition.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
