Slim LCD Digital Signage Media Display SKD Kit With Control Board LCD Display

Slim LCD Digital Signage Media Display SKD Kit With Control Board LCD Display
Slim LCD Digital Signage Media Display SKD Kit With Control Board LCD Display
Slim LCD Digital Signage Media Display SKD Kit With Control Board LCD Display Slim LCD Digital Signage Media Display SKD Kit With Control Board LCD Display Slim LCD Digital Signage Media Display SKD Kit With Control Board LCD Display

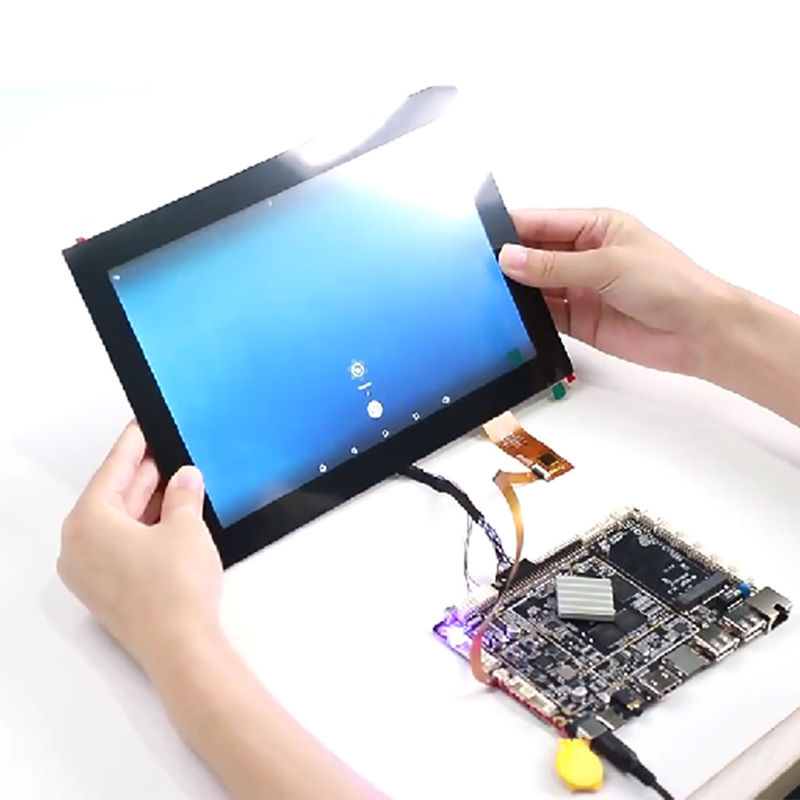

Large Image :  Slim LCD Digital Signage Media Display SKD Kit With Control Board LCD Display

Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: ADW
Certification: CE, ROHS, FCC, IOS9001
Model Number: AD-10.1''-RK3288
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton / Wooden case
Delivery Time: About 30 days for large orders
Payment Terms: T/T
Supply Ability: 10000 PCS per Month

Slim LCD Digital Signage Media Display SKD Kit With Control Board LCD Display

Description
LCD Panel: 15.6'' Resolution: 1920*1080
Contrast Ratio: 1000:1 Screen Brightness: 300 Cd/m2
Screen Proportion: 16:9 Mobile Network: 4G Optional
Touch: Optional Solution: RK3288 Quad-core
RAM: 2GB/4GB (optional) ROM: 8GB/16GB/32GB(optional)
High Light:

vertical digital signage display

,

interactive digital display screens





Slim LCD Digital Signage Display SKD Kit With Control Board LCD Display





Specifications:



Hardware:

Parameter Specification (15.6 inch LCD display)

Remarks
Active area  :344.16(H) ×193.59(V) mm
Number of pixels:1920 (H) ×1080 (V)
pixels
Pixel pitch :179.25(H) ×179.25(V) um
Pixel arrangement :RGB Vertical stripe
Display colors :16.7M (6bit+FRC)
Color gamut :100% sRGB
Display mode :Normally white
Dimensional
outline :350.66±0.3 (H)*205.25±0.3(V)(W/O PCB)*3.2(Max)
350.66±0.3(H)*214.75±0.5(V) (W/PCB)*3.2(Max) mm
Weight :360(max) g
Surface treatment :Anti-Glare
Surface hardness :3H
Back-light :Bottom edge side, 1-LED lighting bar type
Power consumption :PD : 0.7(Max.) W @Mosaic
PT : 0.2(Max) W @ Active
PBL : 3.3(Max.)
Total : 3.4(Max.)




Information of Android board:



CPU Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764
Main frequency 1.8 GHz
Deposit LPDDR3 2G/4G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G etc. optional

Display interface



LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display
  EDP interface Maximum resolution 4K
Screen voltage Support 3.3V/5V/12V optional
Touch screen Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen.

The internet





With RJ45 interface, support 10/100M Ethernet.
  Equipped with wifi &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
  With 4G module, support 4G network
Image rotation Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional)
Real Time Clock External real-time clock power supply battery

Interface device

Support MIPI camera
  Support HDMI output
  5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
  3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.)
  3 IO detection ports
  TF card
  D class large built-in speaker, 5W*2 8R
  Support microphone
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
Image Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A




Model NO.: AD-B02P-RK3288







Software:

OS Android 5.1 or above
Basic software functions Web browsing, web chat, e-mail, e-books, and resource managers
Sound mode Clock, alarm clock, calculator, recording
Language Multi language
Recording Support MP3, WMA, 3gpp, Amr, etc., the system comes with an Amr format
Tool Calendar
Alarm Clock
Calculator
Note
Note
Recording
Document EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input methods Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -Chrome Lite
Email
Gmail
OS management APK Installer
Original eco-Android system, open root privileges, can be customized product development
Real-time remote monitoring, system crash recovery automatically, 7 * 24 hours unattended
System setting
Global time
Support OTA remote upgrade







Features
1. Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc.
2. Outer shell is made of extra good quality metal material and tempered glass.
3. Support split screen, user can split screens freely by software.
4. Videos switch with no pause. ( seamless switching )
5. with 8GB internal memory, updating contents automatically by USB.
6. Rotating vidoes automatically.
7. Adopts high transparent tempered glass (2-6 mm ) as protection layer toprevent screen from being broken or distorted.
8. Support IR Remote controller, user can use remote controller to operate the whole device.
9. Build-in high quality stereo speakers. Amplifier / 3.5mm audio jack is optional.
10.Playing circles automatically when powers on .
11..Allowing memory of breakpoint/AD management system.






Support Contents Management Software (CMS)



CMS is one of the most popular digital signage online management software which allows people quickly and easily to manage centrally controlled network of LCD advertising screens. And CMS can be hosted on On-Premise and Cloud Sever running 24/7 no maintenance hassle.


All of our digital signage products including wall mounted advertising displays, floor standing digital signage kiosks, digital signage media players., etc can be remotely online managed via CMS system. CMS supports remote control, screen layouts edit, playlist scheduling, multi-accounts management, versatile media format including image, video, audio, scrolling message, web page, streaming and live tv feeds., etc. We have numerous of clients from all over the world who are using our CMS system, And, now thousands of digital signage players /advertising displays / digital signage totems are working with our CMS software globally.





Slim LCD Digital Signage Media Display SKD Kit With Control Board LCD Display 0Slim LCD Digital Signage Media Display SKD Kit With Control Board LCD Display 1Slim LCD Digital Signage Media Display SKD Kit With Control Board LCD Display 2















PACKAGING DETAILS
1, Packaging: film, foam and wooden case (international standard packaging), suitable for export.
2, Lead time: in 1 week for sample order, about 5 weeks for large order.







Pre-sale Service

Our professional team will serve on line for 24h for the customers.

If it is standard touch screen/ kiosk of our model, we will offer competitive price accordingly.
If clients have requirement of touch screen/ kiosk, our designing & sales team will provide professional advice on your respected project and will make every effort to make your project running.



After-sale Service

If any problems, you will get our reply within 24 hours. Solution will be offered instantly. We have professional technician to help solve any problem or direction during operating.









SUNCHIP: Digital Signage manufacturer in Shenzhen, China.

Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.

LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
