Product Details:
|
| CPU&GPU: | RK3399 Dual Core Cortex-A72+quad Core Cortex-A53,GPU ARM Mali-T860MP4 | Display Interface: | EDP Interface_2K Output /LVDS Interface_1080P Output(optional) |
|---|---|---|---|
| Double Display: | Support Dual Display Different Contents Play(optional) | Operating System: | Android 7.1/9.0 (Linux OS Optional) |
| HD: | Support HD_4K 2.0 Out | 4G LTE: | Optional |
| High Light: | advertising player box,digital signage player box |
||

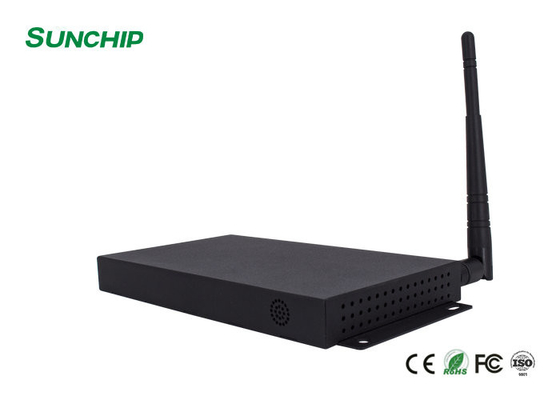

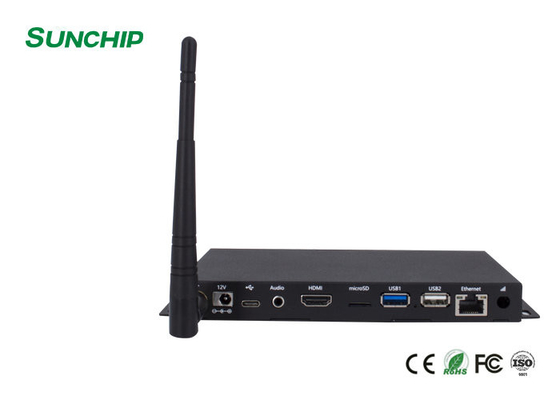

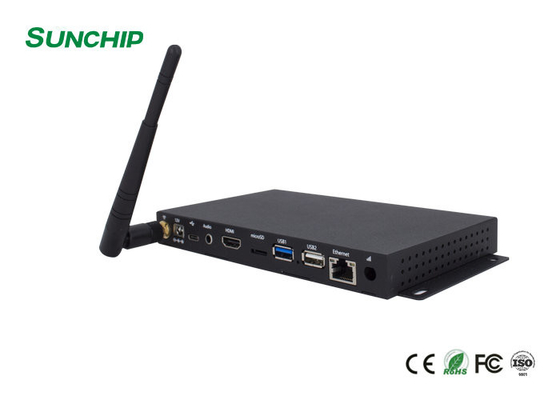

Sunchip RK3399 HD Media Advertising Player Box with HD LVDS EDP output 1920*1080P metal WIFI 4G media Box
Model: AD-B03 BOX-RK3399
Product Features:
monitor or screen can easily turn into easy-to-use digital signage by connecting with SUNCHIP digital signage player. As the mainstream player powered by digital signage software, SUNCHIP BOX features reliable network update, offline mode, scalable I/O interfaces and 1080p FHD display, making itself adaptable for any digital signage project large or small, complex or simple.
With industrial-grade durability and outstanding performance among its peers, SUNCHIP BOX can be confidently applied to any digital signage application such as retail chain store, supermarket, shopping mall, restaurant, bus, train, hotel, bank, dealer showroom, drugstore and more.
Contents Management Software (CMS)
CMS is one of the most popular digital signage online management software which allows people quickly and easily to manage centrally controlled network of LCD advertising screens. And CMS can be hosted on On-Premise and Cloud Sever running 24/7 no maintenance hassle.
All of our digital signage products including wall mounted advertising displays, floor standing digital signage kiosks, digital signage media players., etc can be remotely online managed via CMS system. CMS supports remote control, screen layouts edit, playlist scheduling, multi-accounts management, versatile media format including image, video, audio, scrolling message, web page, streaming, etc. We have numerous of clients from all over the world who are using our CMS system, And, now thousands of digital signage players /advertising displays / digital signage totems are working with our CMS software globally.
PRODUCT SPECIFICATIONS:
| Model No.: AD-0150(AD-B03) | RK3399 Hexa-Core chipset with Android 7.1.2 OS | |||||
| Hardware Spec | ||||||
| System | CPU&GPU | RK3399 dual core Cortex-A72+quad core Cortex-A53,GPU ARM Mali-T860MP4 | ||||
| RAM | LPDDR4 4GB/8GB(optional) | |||||
| Memory | 16GB/32GB/64GB(optional) | |||||
| Operating system | Android 7.1.2(Linux OS optional) | |||||
| Network | WiFi | 802.11a/b/g/n/ ac (2.4G/5G optional) | ||||
| Mobile network | 4G LTE FDD/LTE TDD/WCDMA/GSM (optional) | |||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100/1000M Ethernet | |||||
| Language | Multi-Language support | |||||
| Interface | ||||||
| Interface | USB interface*2 | support USB2.0 host*1+support USB3.0 host*1 | ||||
| Type-C interface | Type-C*1 | |||||
| DC | DC power 12V input | |||||
| TF card | TF Card (micro SD card), up to 64GB | |||||
| Display interface | EDP interface_2K output /LVDS interface_1080P output(optional) | |||||
| Speaker interface | 8Ω 5W*2(optional) | |||||
| UART interface | UART2 interface*1(optional) | |||||
| IR remote control | support IR Remote Control | |||||
| USB port extension | support USB extension host*1(optional) | |||||
| RJ45 | 10/100/1000M Ethernet port | |||||
| Headset/AUDIO Out | 3.5mm stereo headphone output*1 | |||||
| Media Parameter | ||||||
| Media Playback | Video format | support H.264,MPEG2,VP6,VP8,MVC,etc.format 2160P@24FPS decode. YouTube,etc. online video,up to 1080P,HTML5 video playback, Flash10.1 player | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Adapter | Power adapter 12V/3A | ||||
| User's Guide | Standard | |||||
| Warranty Card | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 195*100*20 | |||||
| colour box size(L*W*H) | ||||||
| Carton size(PCS/CTN)(L*W*H) | ||||||
| Others Parameters | ||||||
| Double display | Support dual display different contents play(optional) | |||||
| Gravity induction | Support 0°90°180°270°manual/automatic rotation | |||||
