Product Details:
|
| LCD Panel: | 15.6" | Resolution: | 1920*1080 |
|---|---|---|---|
| Touch Panel: | 10 Point Capacitive Touch(optional) | Image Rotation: | Support G-sensor |
| CPU&GPU: | RK3288 Chipset | Operating System: | Android 6.0 (optional) |
| RAM / ROM: | 2GB / 8GB (optional) | OTA: | Support |
| High Light: | open frame lcd screen,open frame lcd panel |
||

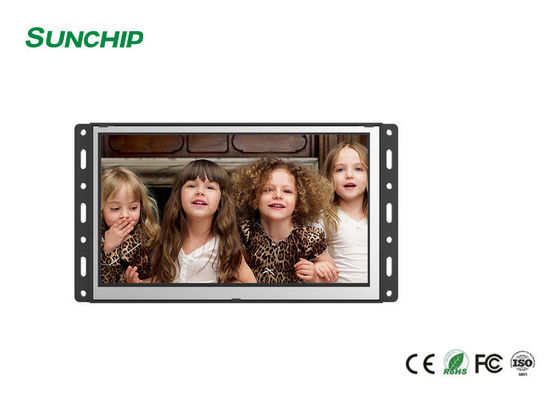

Digital Signage Advertising Player 15.6 inch open frame LCD display with WIFI Ethernet 4G LTE optional
Wall Mounted Open Frame LCD Digital Signage Display from SUNCHIP ADW
15.6'' Open Frame:
Advantages:
1. Open frame structure: with customizable and changeable metal frame to embedded into your furniture, store shelf, showcase, or fit into any object as per your design.
2. With built-in any inches TFT LCD screen, plays from SD card or USB Stick, or remote control system.
3. Our structure engineers can help you with design service as per your special need.
4. Industrial-grade design, heavy-duty built for non-stop loop-playing HD video and picture 24/7/365.
5. Plug & Play, very easy to use
6. Upload contents to the memory card by one-step inserting an USB flash drive; no need to pull out the memory card; no need to use a laptop.
7, With our remote controlling system, user can publish any contents to the devices wherever at home or at the office that far away from the open frame LCD display.
7. Timer function: the player powers on / off automatically every day at your pre-set time.
8. No DVD-style mechanical movement, hence more durable and suitable for long-hour advertising playing.
PRODUCT SPECIFICATIONS:
Basic Hardware Specifications:
| CPU | Rockchip RK3288 Cortex-A17 Quad core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | LPDDR3 2G/4G optional |
| ROM | EMMC 8GB/16G/32G/64G optional default: 8GB |
| Display interface | LVDS (single way,6 bit dual-way, 8 bit dual-way), Resolution max 1920x1080, support 7"-84" display |
| EDP interface, Resolution max 4K | |
| Screen voltage | Support 3.3V/5V/12V(optional) |
| Touch Screen |
I2C interface (support resistive touch, capacitive touch) |
| Network | RJ45 interface, ethernet 10/100/1000M |
| Wi-Fi 802.11b/g/n, BT4.0 | |
| Support 4G LTE | |
| Image rotation | Support 0°, 90°, 180°, 270°, manual control or automatic, gravity (optional) |
| RTC | Built in internal battery for Real time clock |
| interfaces | Support MIPI camera, max 5MP |
| Support USB camera, max 2MP | |
| HD out | |
| 6*USB HOST (Support USB camera @500w, USB printer, USB stick, mouse, keyboard, standard USB peripherals) | |
| Serial ports x 3(1*UART+2*UART or RS232), support external devices (NFC module, printer, card reader etc.) | |
| 6*IO | |
| TF card slot | |
| D classamplifier,5W*2 8R | |
| support microphone | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC, 2160P@24FPS decoding. on-line video such as YouTube, max support 4K,HTML5 playback,Flash10.1 playback |
| image | Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify |
| Power supply | input:AC100-240V.50-60HZ, output: DC12V, 3A |
Basic Software Specifications:
| OS | Android 5.1 or above |
| Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language | Multi language |
| Recording | Support MP3, WMA, 3gpp, Amr, etc., the system comes with an Amr format |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Note | |
| Recording | |
| Document | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input methods | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| Gmail | |
| OS management | APK Installer |
| Original eco-Android system, open root privileges, can be customized product development | |
| Real-time remote monitoring, system crash recovery automatically, 7 * 24 hours unattended | |
| System setting | |
| Global time | |
| Support OTA remote upgrade |
PRODUCT SCENARIOS
PACKAGING DETAILS
Carton *1
Wooden case *1 (if necessary)
OFFICE AND FACTORY
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
