Product Details:
|
CPU&GPU: | RK3399 Six-core | Operating System: | Android 7.1.2 (optional) |
---|---|---|---|
LCD Screen: | 13.3'' | RAM: | 4GB(optional) |
ROM: | 16GB/32GB(optional) | 4G LTE: | Support 4G(optional) |
WiFi: | 802.11b/g/n (2.4G/5G Optional) | Network: | 10M/100M/1000M Ethernet; |
Bluetooth: | Bluetooth 4.0 | ||
High Light: | open frame lcd monitor,open frame lcd panel |
digital signage lcd ad screen WIFI 4G touch optional android open frame lcd display from sunchip
Over View:
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.0 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
HIGHLIGHTS
a, It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.
b, Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
c, A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.
d, Multi-channel USB interface, serial output.
e, Support 4K video play
f, Strong anti-electromagnetic interference and electromagnetic compatibility.
Key features:

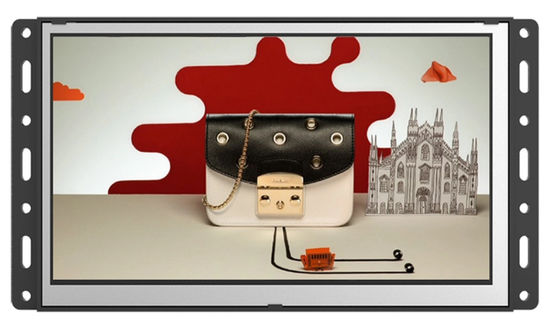

13.3 inch Wall Frameless LCD Panel Open Frame LCD Monitor
Advantages:

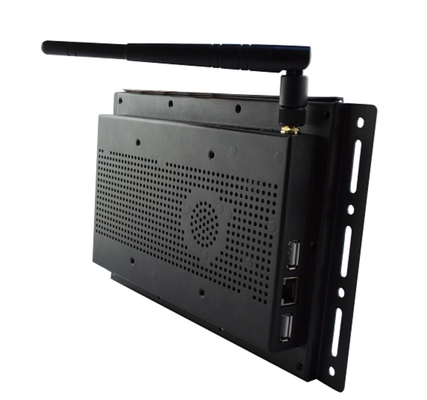

1. Open frame structure: with customizable and changeable metal frame to embedded into your furniture, store shelf, showcase, or fit into any object as per your design.
2. With built-in any inches TFT LCD screen, plays from SD card or USB Stick, or remote control system.
3. Our structure engineers can help you with design service as per your special need.
4. Industrial-grade design, heavy-duty built for non-stop loop-playing HD video and picture 24/7/365.
5. Plug & Play, very easy to use
6. Upload contents to the memory card by one-step inserting an USB flash drive; no need to pull out the memory card; no need to use a laptop.
7, With our remote controlling system, user can publish any contents to the devices wherever at home or at the office that far away from the open frame LCD display.
7. Timer function: the player powers on / off automatically every day at your pre-set time.
8. No DVD-style mechanical movement, hence more durable and suitable for long-hour advertising playing.
PRODUCT SPECIFICATIONS:
Model No.: AD-13.3''-RK3399 |
RK3399 Six-Core Android 7.1.2. (Linux OS optional) -Open Frame Series |
Basic Hardware Specifications:
CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
GPU | ARM Mali-T860MP4 GPU |
Deposit | LPDDR4 4G |
Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (labeled 16GB) |
Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
EDP screen interface, support resolution 1920x1080 | |
Screen voltage | Support 3.3V/5V/12V optional |
Network | With RJ45 interface, support 10/100/1000 Ethernet |
Support 4G PCIE interface | |
With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT4.0 | |
Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
Real Time Clock | External real-time clock power supply battery |
Interface device | Support USB camera |
5 USB HOST | |
SD card, maximum support 64GB | |
Class D amplifier: 5W*2 8 ohms, support microphone | |
2.0 output |
|
Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
Video | Supports 2160P@24FPS decoding of H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |
Basic Software Specifications:
|
PRODUCT SCENARIOS
PACKAGING DETAILS
Carton *1
Wooden case *1 (if necessary)
OFFICE AND FACTORY
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

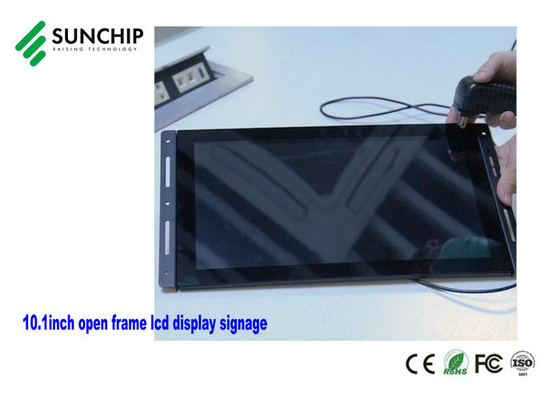

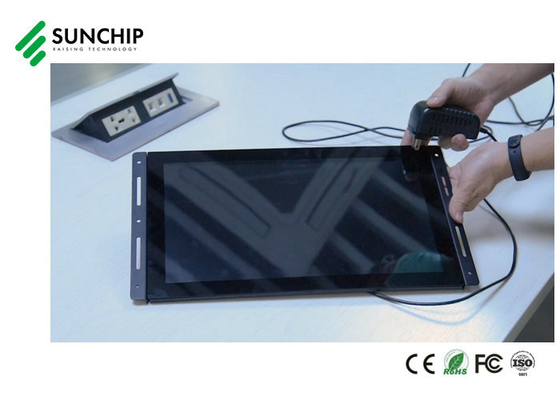

4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
