Product Details:
|
| LCD Screen: | 57.5'' | Operating System: | Android 6.0 OS Optional |
|---|---|---|---|
| CPU&GPU: | RK3288 Chipset | Display Interfaces: | LVDS, EDP Optional |
| Interactive Mode: | Touch (optional) | RAM: | 2GB/4GB (optional) |
| ROM: | 8GB/16GB/32GB(optional) | Resolution: | 1920*1080 |
| WiFi: | 802.11 B/g/n_2.4G ( Support 5G WIFI Optional) | Ethernet: | 10M/100M/1000M |
| Network: | Support 4G(optional) | OTA: | SUPPORT |
| High Light: | floor standing lcd advertising display,free standing digital signage |
||
SUNCHIP 57.5 inch Indoor floor standing digital signage advertising display media player from ADW
stand alone Advertising Display from SUNCHIP ADW
Overview

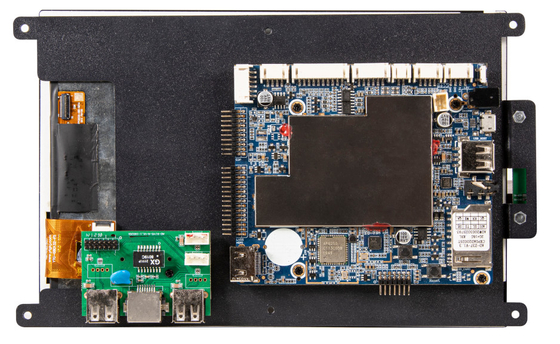

RK3288 Android integrated board, using Rockchip RK3288 quad-core chip solution, support Android5.1 system. Supports the decoding of the popular audio & video formats and images. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display. support 4K video playing. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.
HIGHLIGHTS
A. High performance: The RK3288 uses the Quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
B. High stability: RK3288 Android integrated board, adds their own unique technology in the hardware & software to ensure the stability of the product to make sure the device 7*24 hours unattended.
C. High integration: RK3288 Android integrated board integrates Ethernet, WIFI, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
PRODUCTS SPECIFICATIONS
|
Model No.: AD-57.5''-RK3288 |
RK3288 Quad-core Android all-in-one advertising machine (57.5'' Android retail tablets with touch screen ) |
|||||
| Hardware Spec | ||||||
| System | CPU&GPU | RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional) | |||||
| Internal Memory | 8GB/16GB/32GB(optional) | |||||
| Operating system | Android 6.0 | |||||
| Display | LCD Screen | 57.5'' | ||||
| Resolution | 1920*405 | |||||
| Contrast ratio | 4000:1 | |||||
| Screen brightness | 700 cd/m2 | |||||
| Display area | 1428.4*301.2 | |||||
| Aspect Ratio | 16:3 | |||||
| Network | WiFi | 802.11 b/g/n_2.4G | ||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100M/1000M Ethernet | |||||
| Interface | ||||||
| Interface | USB interface*2 | Support USB host*2 | ||||
| Micro USB_OTG | Micro USB_OTG*1 | |||||
| AC(power jack) | AC 100V-250V input | |||||
| TF card | Maximum support 32GB | |||||
| RJ45 | Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Speaker output | Support 8 ohm 3W speaker dual channel output interface | |||||
| Buttons/Keys | Buttons/Keys | None, single key, five key (optional) | ||||
| Media Parameter | ||||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,VC1,VP8,4K VP9,4K 10bits H265/H264,HDR10,HLG HDR,Maximum support 3840x2160 | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Others Parameters | ||||||
| Camera | the front camera 200W/500W(defaulted none, Optional) | |||||
| Language |
Multi-language Operation |
|||||

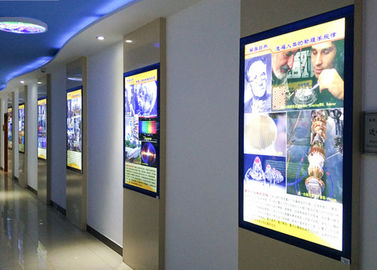

PRODUCT SCENARIOS
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
