Product Details:
|
| LCD Screen: | 65'' | RAM: | 2GB/4GB (optional) |
|---|---|---|---|
| ROM: | 8GB/16GB/32GB(optional) | CPU&GPU: | RK3288 CPU |
| Resolution: | 1920*1080 | Interactive Mode: | Touch (optional) |
| Operating System: | Android 6.0 OS Optional | WiFi: | 802.11 B/g/n_2.4G ( Support 5G WIFI Optional) |
| Ethernet: | 10M/100M/1000M | Network: | Support 4G(optional) |
| High Light: | floor standing lcd advertising display,free standing digital signage |
||

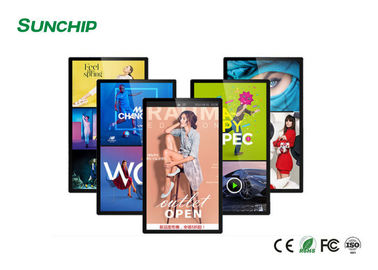

Super size 65 inch Floor standing android Retail tablet LCD interactive digital signage display for supermarket & mall
Wall Mounted Advertising Display from SUNCHIP ADW
Overview
RK3288 Android integrated board, using Rockchip RK3288 quad-core chip solution, support Android5.1 system. Supports the decoding of the popular audio & video formats and images. Support EDP@4K, dual 8-bit LVDS interface 1920*1080, can drive 7" to 82" display. Support 4K video playing. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.
HIGHLIGHTS
A. High performance: The RK3288 uses the Quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.
B. High stability: RK3288 Android integrated board, adds their own unique technology in the hardware & software to ensure the stability of the product to make sure the device 7*24 hours unattended.
C. High integration: RK3288 Android integrated board integrates Ethernet, WIFI, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.
PRODUCTS SPECIFICATIONS
| Model No.: AD-65''-RK3288 |
RK3288 Quad-core Android all-in-one advertising machine --65'' Floor Standing |
|||||
| Hardware Spec | ||||||
| System | CPU&GPU | RK3288 quad-core Cortex-A17@1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional) | |||||
| Internal Memory | 8GB/16GB/32GB(optional) | |||||
| Operating system | Android 6.0 | |||||
| Touch Screen | Defaulted None (Optional) | |||||
| Interactive Mode | IR TOUCH | Optional | ||||
| 10 point capacitive touch | Optional | |||||
| Touch Screen/IR remote | Optional | |||||
| Display | LCD Screen | 65'' | ||||
| Resolution | 3840*2160 | |||||
| Contrast ratio | 4000:1 | |||||
| Screen brightness | 500 cd/m2 | |||||
| Aspect Ratio | 16:9 | |||||
| Network | WiFi | 802.11 b/g/n_2.4G | ||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100M/1000M Ethernet | |||||
| Interface | ||||||
| Interface | USB interface*2 | Support USB host*2 | ||||
| Micro USB_OTG | Micro USB_OTG*1 | |||||
| AC(power jack) | AC 100V-240V (50KZ--60HZ) | |||||
| TF card | Maximum support 32GB | |||||
| RJ45 | Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Speaker output | Support 8 ohm 3W speaker *2 | |||||
| Buttons/Keys | Buttons/Keys | Defaulted None | ||||
| Media Parameter | ||||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,Max3840x2160 | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | User's Guide | Standard | ||||
| Warranty Card | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 963*422.8*2100 | |||||
| colour box size(L*W*H) | ||||||
| Carton size(PCS/CTN)(L*W*H) | ||||||
| Others Parameters | ||||||
| Recording | Support high-quality recording function (Optional) | |||||
| Camera | The front camera 200W/500W(Optional) | |||||
| Language | Multi-language Operation | |||||
