55'' 65'' Floor Standing Digital Signage Open Source Network For Advertising Promotion

55'' 65'' Floor Standing Digital Signage Open Source Network For Advertising Promotion
55'' 65'' Floor Standing Digital Signage Open Source Network For Advertising Promotion

Large Image :  55'' 65'' Floor Standing Digital Signage Open Source Network For Advertising Promotion

Product Details:
Place of Origin: CHINA
Brand Name: ADW
Certification: ISO9001, CE, ROHS, FCC
Model Number: AD-5540
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton / Wooden case
Delivery Time: About 30 days for mass production
Payment Terms: T/T
Supply Ability: 10000 PCS per Month

55'' 65'' Floor Standing Digital Signage Open Source Network For Advertising Promotion

Description
CPU&GPU: RK3288 Quad-core Cortex-A17@1.8G GPU Mali T764 LCD Screen: 55''
RAM: 2GB/4GB (optional) ROM: 8GB/16GB/32GB(optional)
Resolution: 1920*1080 Interactive Mode: Touch (optional)
WiFi: 802.11 B/g/n_2.4G ( Support 5G Optional) Network: 10M/100M/1000M Ethernet; Support 4G(optional)
OTA: Support Camera: Max 5MP
Language: Multi-language
High Light:

free standing digital signage

,

stand alone digital signage





55'' 65'' WIFI 4G Floor Standing Open Source Network Lcd Digital Signage Display for advertising promotion in mall





HIGHLIGHTS



A. High performance: The RK3288 uses the Quad-core A17 solution and is one of the most powerful quad-core chips on the market. Compared with the common single-core, dual-core and quad-core solutions in the market, it has a qualitative leap in performance, can play high-definition video in various formats, and can process the complex interactive operations.



B. High stability: RK3288 Android integrated board, adds their own unique technology in the hardware & software to ensure the stability of the product to make sure the device 7*24 hours unattended.

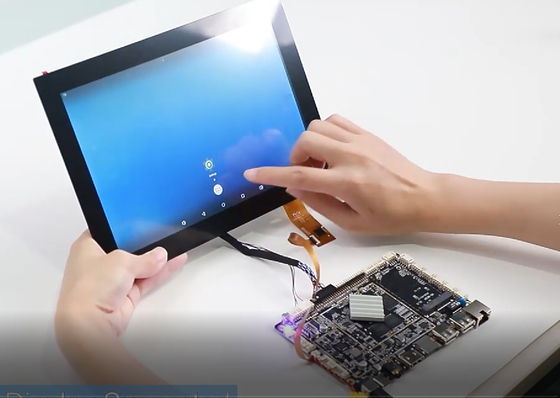

C. High integration: RK3288 Android integrated board integrates Ethernet, WIFI, Bluetooth, 4G, power amplifier, SD card, backlight power supply and other functions, greatly simplifying the design of the device. The ultra-thin motherboard makes the design of the device more beautiful.





PRODUCTS SPECIFICATIONS



Model No.:

AD-55''-RK3288

RK3288 Quad-core Android all-in-one advertising machine

(55'' floor standing )


Hardware Spec
System CPU&GPU RK3288 quad-core Cortex-A17@1.8G GPU Mali T764
RAM 2GB/4GB (optional)
Memory 8GB/16GB/32GB(optional)
Operating system Android 5.1/ 6.0
Interactive mode infrared touch Optional
ten-points capacitive touch
No-touch/infrared remote control
Display LCD Screen 55''
Resolution 1920*1080
Contrast Ratio 1200:1
Screen brightness 450 cd/m2
Screen proportion 16:9
Network WiFi 802.11 b/g/n_2.4G ( support 5G optional)
Mobile network Support 4G(optional)
Bluetooth Bluetooth 4.0
Ethernet 10M/100M/1000M Ethernet





Interface
Interface USB interface*2 Support USB host*2
USB_OTG USB_OTG*1
AC AC 100V-240V (50HZ-60HZ)
TF card Maximum support 128GB
  Support output Support 4K 60FPS frame rate
RJ45 10/100/1000M Ethernet port
Headset 3.5mm stereo headphone output
Speaker output Support 8 ohm 3W speaker dual channel output interface
Buttons/Keys Buttons/Keys defaulted none
Media Parameter
Media Playback Video format MPEG-1,MPEG-2,MPEG-4,H.264,H.265,VC1,VP8,4K VP9,4K 10bits H265/H264,HDR10,HLG HDR,Maximum support 3840x2160
Audio format MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format
Text processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook   PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Image Format JPG,BMP,PNG
System Management
System Management APK install APK installer
Root permission Original Android system, open root permissions, product customization development
Remote control Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended
OTA upgrade Support OTA remote upgrade
Accessories
Accessories Adapter Available standard
User's Guide Standard
Warranty Card Standard
Size(unit:mm)
Product size(L*W*H) 635*430*1777.78
colour box size(L*W*H)
Carton size(PCS/CTN)(L*W*H)
Others Parameters
Camera the front camera 200W/500W(Optional)
Recording Support high-quality recording function (optional)
OSD Language Multi-language OSD Operation







55'' 65'' Floor Standing Digital Signage Open Source Network For Advertising Promotion 0







SUPPORT REMOTE CONTROL VIA INTERNET







55'' 65'' Floor Standing Digital Signage Open Source Network For Advertising Promotion 1







OFFICE AND FACTORY

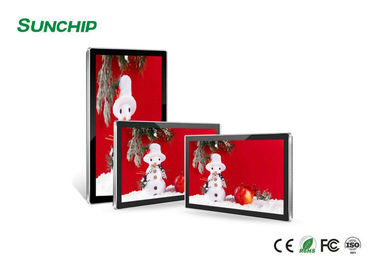

SUNCHIP: Digital Signage manufacturer in Shenzhen, China.



Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising  Box.
