Product Details:
|
Panel: | 13.3'' | Resolution: | 1366*768 |
---|---|---|---|
CPU: | Rockchip RK-PX30 | RAM/ROM: | 1GB/2GB; 8GB/16GB/ (optional) |
Touch Screen: | 10 Point Capacitive Touch | OS: | Android 6.0 |
Contrast Ratio: | 500:1 | Luminance: | 250cdm2 |
Aspect Ratio: | 16:9 | Ethernet: | RJ45, Support 10/100/1000M Ethernet |
WIFI: | 802.11 B/g/n/ac (optional) | Bluetooth: | YES |
G-sensor: | Support 0° 90° 180° 270° Manual Automatic Rotation | ||
High Light: | wall mount lcd display,wall advertising display |

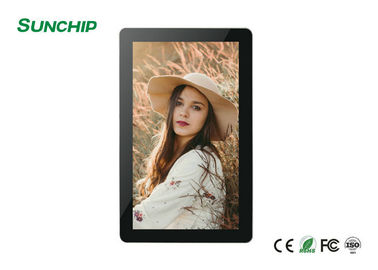

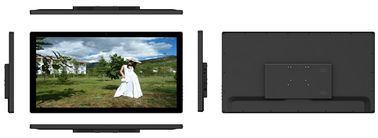

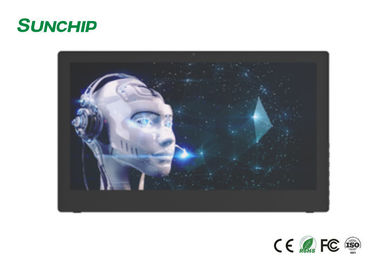

Best Advertising Equipment Indoor Digital Signage, wall mounted advertising lcd display with touch screen digital sign
Overview
Android integrated board, using Rockchip PX30 quad-core chip solution, support Android 8.0 system. Supports the decoding of the popular audio & video formats and images. The multi interface makes the product in common use and is widely used in intelligent control fields such as advertising machines, all-in-one PC, security, industrial and so on.
Feature
1, Support Dual LVDS; MIPI; display interface; support 7 inch to 10.1-inch Dual LVDS display interface (point-to-point full HD display 1920*1080).
2, Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
3, Multiple network interfaces: Ethernet, wireless Wi-fi, Bluetooth.
4, Multi-channel USB interface, serial port, IO port output.
5, Strong resistance to electromagnetic interference and electromagnetic compatibility.
Product Details:
Hardware Specifications:
CPU | Rockchip PX30 Quad-core Cortex-A35 Mali-G31 MP2 GPU |
Frequency | 1.5GHz |
RAM | DDR3 1G/2G optional |
ROM | EMMC 8GB/16G/32G/64G optional (default: 8GB) |
Display interface | LVDS optional |
MIPI optional | |
Touch Screen | Support USB IR multi touch, sonic multi touch, optical multi touch |
Network | RJ45 interface, ethernet 10/100M |
WIFI& BT: support Wi-Fi 802.11b/g/n/, and support BT4.0 support | |
RTC | Built in internal battery for Real time clock |
Interfaces | Support USB camera |
3*USB HOST,1*USB OTG | |
3*Serial ports, support external devices (NFC module, printer, card reader etc.) | |
Support MIPI camera, max 8MP | |
D classamplifier,5W*2 8R | |
support microphone *1 | |
Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
Video | Support H.264, MPEG2, VP6, VP8, MVC, 2160P@24FPS decoding. on-line video such as YouTube, max support 4K,HTML5 playback,Flash10.1 playback |
Images | Support JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify |
Power supply | input:AC100-240V.50-60HZ, output: DC12V-3A |
Software specifications:
OS | Google Android 8.1 |
Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
Sound mode | Clock, alarm clock, calculator, recording |
Language | Multi language |
Recording | Support MP3, WMA, 3gpp, Amr, etc., the system comes with an Amr format |
Tools | Calendar |
Alarm Clock | |
Calculator | |
Note | |
Weather Clock | |
Recording | |
Document | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
Schedule | Calendar |
Input methods | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
Internet | Browser -Chrome Lite |
Gmail | |
System Management | APK Installer |
Original eco-Android system, open root privileges, can be customized product development | |
Real-time remote monitoring, system crash recovery automatically, 7 * 24 hours unattended | |
Support OTA remote upgrade | |
System setting | |
Google Maps | |
Global time |
