Product Details:
|
| Panel: | 21.5'' | OS: | Android 6.0 |
|---|---|---|---|
| CPU: | RK3288 | Display: | LVDS, MIPI Optional |
| Touch Screen: | 10 Point Capacitive Touch | Resolution: | 1920*1080 |
| RAM: | DDR3 2G/4G Optional | ROM: | EMMC 8GB/16G/32G/64G Optional |
| WIFI/Bluetooth: | 802.11 B/g/n/ac (optional); BT Available; | Ethernet: | RJ45, Support 10/100/1000M Ethernet |
| G-sensor: | Support | Contrast Ratio: | 1000:1 |
| Aspect Ratio: | 16:9 | Rich Interfaces: | Support |
| High Light: | wall advertising display,wall mounted digital signage |
||

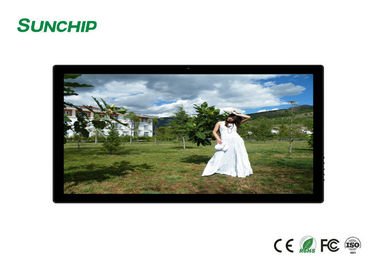

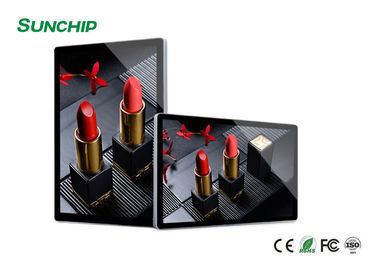

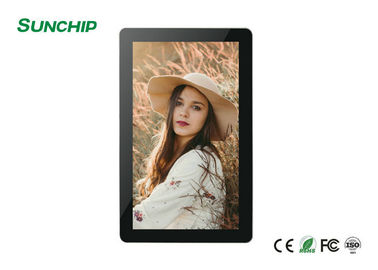

21.5 Inch wall mounted Wifi Touch Screen Indoor Outdoor LCD Advertising digital signage Display For Bus Station Project
Wall Mounted Digital Signage from SUNCHIP
Product Details:
| Model No.: AD-21.5''-RK3288 | RK3288 Quad-core Android all-in-one advertising machine (21.5'' Android retail tablets with touch screen ) |
|||||
| Hardware Spec | ||||||
| System | CPU&GPU | RK3288 quad-core Cortex-A17 @1.8G GPU Mali T764 | ||||
| RAM | 2GB/4GB (optional) | |||||
| Internal Memory | 8GB/16GB/32GB(optional) | |||||
| Operating system | Android 6.0 | |||||
| Touch screen | 10 point capacitive touch(optional) | |||||
| Display | Panel | 21.5'' | ||||
| Resolution | 1920*1080 | |||||
| Contrast ratio | 1000:1 | |||||
| Screen brightness | 250 cd/m2 | |||||
| Aspect Ratio | 16:9 | |||||
| Network | WiFi | 802.11 b/g/n_2.4G | ||||
| Bluetooth | Bluetooth 4.0 | |||||
| Ethernet | 10M/100/1000M Ethernet | |||||
| Interface | ||||||
| Interface | USB interface*3 | Support USB host*3 | ||||
| Micro USB_OTG | Micro USB_OTG*1 | |||||
| (power jack) | DC power 12V input | |||||
| TF card | Maximum support 32GB | |||||
| RJ45 | Ethernet port | |||||
| Headset | 3.5mm stereo headphone output | |||||
| Speaker output | Support 8 ohm 3W speaker dual channel output interface | |||||
| Buttons/Keys | Buttons/Keys | None, single key, five key (optional) | ||||
| Media Parameter | ||||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.264,H.265,VC1,VP8,4K VP9,4K 10bits H265/H264,HDR10,HLG HDR,Maximum support 3840x2160 | ||||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT | |||||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||
| Image Format | JPG,BMP,PNG | |||||
| System Management | ||||||
| System Management | APK install | APK installer | ||||
| Root permission | Original Android system, open root permissions, product customization development | |||||
| Remote control | Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended | |||||
| OTA upgrade | Support OTA remote upgrade | |||||
| Accessories | ||||||
| Accessories | Adapter | 12V/3A | ||||
| User's Guide | Standard | |||||
| Warranty Card | Standard | |||||
| Size(unit:mm) | ||||||
| Product size(L*W*H) | 525.98*42.13*340.5 | |||||
| colour box size(L*W*H) | ||||||
| Carton size(PCS/CTN)(L*W*H) | ||||||
| Others Parameters | ||||||
| Camera | the front camera 200W/500W(defaulted none, Optional) | |||||
| Language | Multi-language Operation | |||||
Office & Factory:
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
LOOKING FORWARD TO YOUR INQUIRY AND KIND COOPERATIONS!
WELCOME TO INQUIRE ME~
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
